QUICK SETUP GUIDE
WiFi Connected

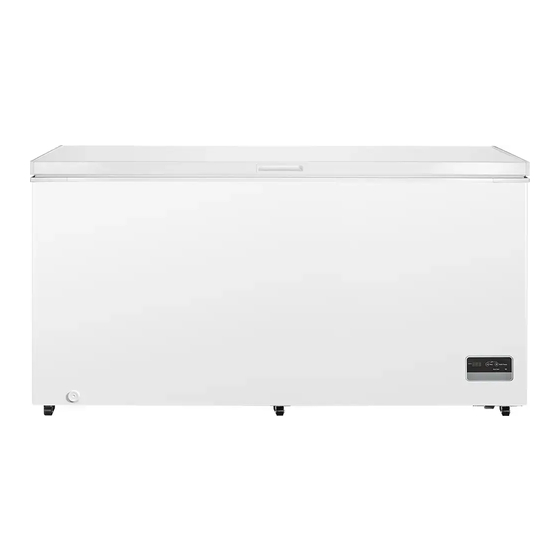

Chest Freezer (12.2,
14.1, or 17.6 Cu.Ft.)
NS-CZ12XWH7/NS-CZ14XWH7/NS-CZ18XWH7
PACKAGE CONTENTS
• 12.2, 14.1, or 17.6 cubic foot chest freezer
• Storage basket
• Quick Setup Guide
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then click Support & Service.
Enter NS-CZ12XWH7, NS-CZ14XWH7, or NS-CZ18XWH7 in the box
under Manual, Firmware, Drivers & Product Information, then click ►.
Before using your new product, please read these instructions to prevent any damage.
SETTING UP YOUR FREEZER
Before using your freezer
• Remove the exterior and interior packing.
• Let the freezer stand upright for approximately two hours
before connecting it to power.
• Wipe the inside.
• When moving your freezer, do not tilt it beyond 45° from
upright.
Finding a suitable location
• This freezer is designed to be free standing only, and should
not be recessed or built-in.
• Place your freezer on a floor that is strong enough to
support the freezer when it is fully loaded.
• If your freezer is located too far from your WiFi router, the
signal may be too weak for a good connection. In such
cases a WiFi range extender will improve connectivity.
• Allow 7.9 inches (20 cm) of space between the sides of the
freezer and the walls, 3.9 inches (10 cm) between the back
of the freezer and the wall, and 27.5 inches (70 cm) between
the top of the freezer and the ceiling.
• If you locate the freezer next to a fixed wall, allow sufficient
space on the hinge side for the door to swing open.
• Locate the freezer away from direct sunlight and sources of
heat, such as a stove, heater, or radiator. Direct sunlight may
affect the acrylic coating and heat sources may increase
electrical consumption. Extremely cold temperatures may
also prevent the freezer from performing properly.
• Avoid locating the freezer in moist areas.
INTRODUCING THE
INSIGNIA CONNECT APP
Download the Insignia Connect app
to use additional features such as
open-door and temperature alerts.
App download is optional – your freezer
works normally without it!
USING YOUR FREEZER
1 Plug in your freezer. Wait for 30 minutes, then open the
freezer door to determine if the freezer is working properly.
2 Press the -/+ and Quick Freeze buttons at the same time
for three seconds to unlock the control panel.
3 Press + or - to set the temperature inside the freezer. The
temperature loops back to the warmest setting when the
coldest temperature is reached.
Using the Lock button
• To prevent accidental activation, the control panel
automatically locks after 30 seconds. To use the control
panel, press and hold the -/+ and Quick Freeze buttons at
the same time for three seconds.
Quick Freezing foods
The quick freeze mode lowers the temperature below the
normal operating temperature to quickly freeze foods.
1 Press and hold the -/+ and Quick Freeze buttons at the
same time for two seconds to unlock the control panel.
2 Press the Quick Freeze button to enter quick freeze mode.
The blue snowflake turns on.
The quick freeze mode turns off after three hours.
Switching between Fahrenheit and Celsius
1 Press and hold the -/+ and Quick Freeze buttons at the
same time for three seconds to unlock the control panel.
2 Press and hold the -/+ for three seconds to change
temperature units.
CONNECTING YOUR FREEZER TO WIFI
(OPTIONAL)
1 Make sure that your mobile device is connected to your
preferred WiFi network.
2 Download and open the free Insignia Connect Device
app from the App Store or Google Play. (Apple: iOS 9 or
later, Android: 6.0.1 Marshmallow or later)
3 Log in or sign up for a Best Buy or Insignia Connect
Device account.
4 On your freezer, press and hold the -/+ and Quick Freeze
buttons for two seconds to unlock the control panel.
5 Press and hold the Quick Freeze button for five seconds
until you see "0" on the control panel.
6 Press -/+ once. "AP" is displayed.
7 In the app, tap Set Up Device, then follow the on-screen
directions to complete setup.
Notes:
• The Control panel will display the temperature after
10 seconds, but WiFi pairing mode will remain active.
• You may need to repeat steps 4-6 to put the freezer back
into AP mode if the app cannot find your freezer.
• Your freezer uses the 2.4GHz WiFi spectrum. If your router
provides both 2.4GHz and 5GHz, select the 2.4GHz band.
