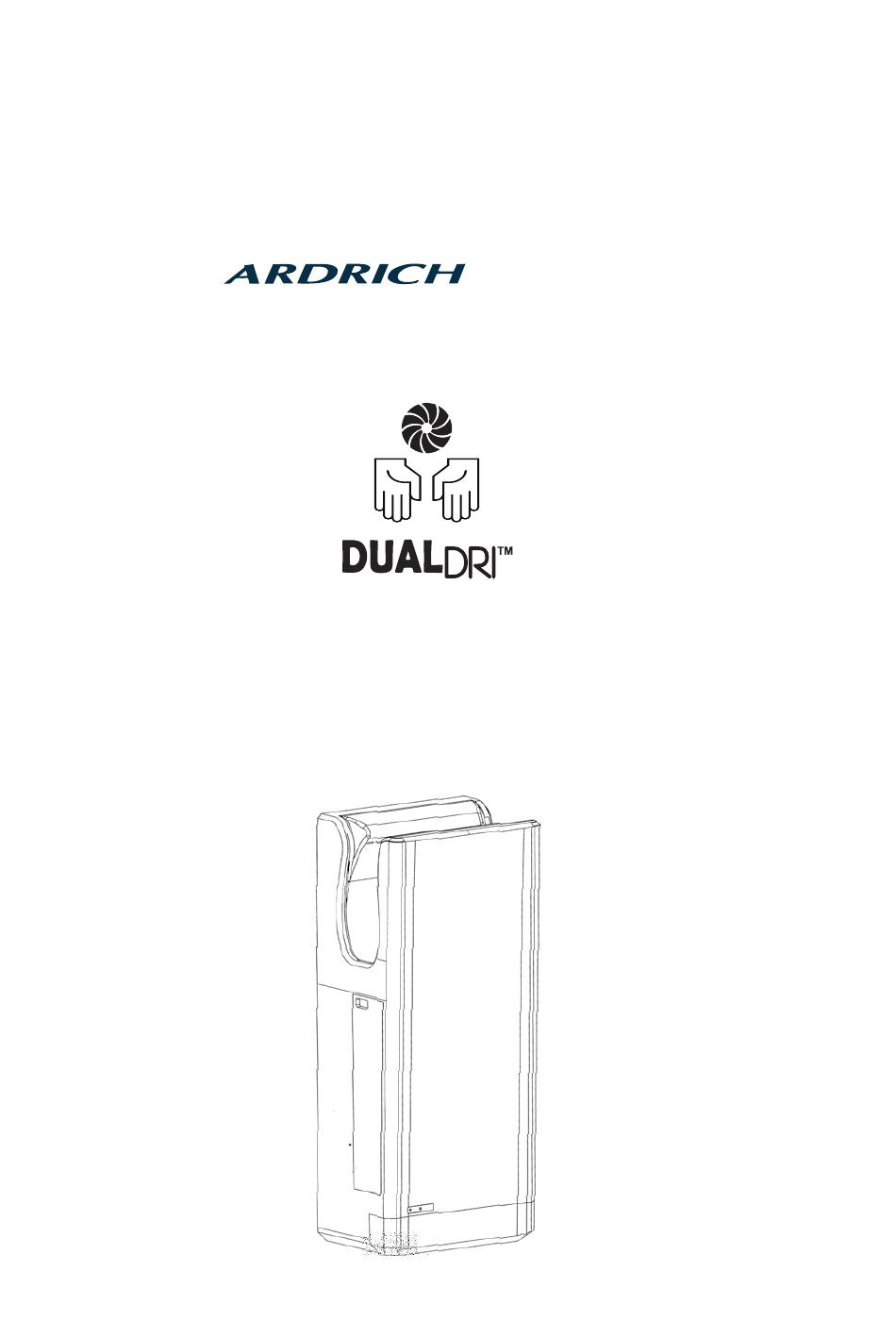

Page 1: User Manual
User Manual HAND DRYERS MODEL A266DD-(W or S) AUTOMATIC DUAL JET HAND DRYER... -
Page 2: Table Of Contents
• Do not attempt to install the unit yourself unless you are a trained service technician, otherwise this may affect the safety and function of the dryer. • R ead this manual thoroughly and carefully before beginning to use this dryer to ensure the safe and proper function. -
Page 3: Warning
• Do not open the front panel. You may get an electric shock. • Children should not climb on the machine and risk falling. Prohibited • Do not use or install the dryer in a wet environment..Spraying water and excessive condensation may increases the risk of electric shock and unit malfunction. -
Page 4: Part Names And Dimensions
Part names and Dimensions Speed Control High - Low Heat Switch Power Switch Air Filter � � _____ mm Top View Drain tank Accessories 201mm Installation Panel Fixed Screw ....6 (4x25 tappin g screw ) Installation Panel ..........1... -
Page 5: • Using The Unit
Using the Dryer • Using the Unit • Stretch out both hands and insert them all the way in. The unit starts to run automatically. • Pull them out slowly, letting the air blow the water off. • Pull them out completely. •... -
Page 6: Routine Cleaning
Routine Cleaning CLEANING THE DRYER EXTERIOR AwARNING---- • Clean the unit with a soft loth. • Before you clean the unit, If the unit gets dirty-soiled, lean with a soft loth dampened with turn off the power switch. neutral agent, then lean with a dry soft loth. -
Page 7: Electrical Schematic
Electrical schematic Hand dryer control Electrical circuit Schematic: POWER PTC electric heater themoustat � AC220V 50/60HZ Power Switch �o BLOC Motor Hall sensor Fuse Protector Transmitter Board indicator PTC electric heater thermostat Brush Motor Perating indicator Power Speed Power Switch indicator Control Transmitter Board... -
Page 8: Trouble Shooting & Precautions Before Installation
Trouble shooting & Precautions before installation I f you experience any of the following problems handling as follows: Problem Check Action Do the display indicators • Turn the ground-fault circuit breaker on. No air blows when lights up? stretch hands into Is the power switch on? •... -
Page 9: Installation Procedures
Installation Procedures: • USE Uni directional AC power supply (Do not be used with a power supply exceeding ± 10%) • Use a multiplied wire power cord which is 1.5mm'-2.0mm' multiplied wire (Cords other than 1.5mm'-2.0mm' single-core cords cannot be used.) •... -
Page 10: Test Run
Test Run Attach the terminal box cover. 1.Attach the drain tank. 2.Make sure the air filter is all the way in. Drain Tank Test Run Air Filter Result Step Check The power must be verified as 220-240v AC Check the voltage of power supply Turn the ground-fault circuit breaker on Does the power indicator light up? Turn the power switch on... -
Page 11: Packing List
Packing List Un it · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 M o u n ti n g p l a t e ·...
