ARDRICH A260M Installation Manual

Caution
• Improper or substandard installation and repairs may result in safety hazards and/or property damage.
• Do not insert objects up into the air outlet; doing so can be hazardous and may result in an electric shock.
• Do not splash the dryer with water or other liquids.
• Do not cover the dryer or obstruct the air inlets or outlets.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilites, or lack of experience or knowledge, unless they have been given supervison or
instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

1. Choosing the best site

I
nstall hand dryers adjacent to wash basins, out of the way of storage cabinets or other objects to optimise access and move-
ment around the dryer. In congested areas, position dryers to ensure good traffic flow between washbasins and dryers. If more
than one is used, dryers should be placed at least 600 mm apart.

Required Clearances

From dryer to sides walls -
To ceiling or shelf above -
To basin, floor or any surface below -

Electrical

This dryer is intended for connection to fixed wiring but it may be used with a supply cord/plug assembly if supplied. All wiring
related switches and circuit protection must be installed in accordance with local electrical wiring regulations and codes.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.

2. Remove cover housing

Remove the dryer from the carton and the two fixing screws at the bottom of the dryer cover. To detach the
cover housing pull the cover out from the base by 15 mm then push whole cover up.
Caution. Carefully disconnect the switch wire loom from the control board beneath the motor. See Diagram 2.

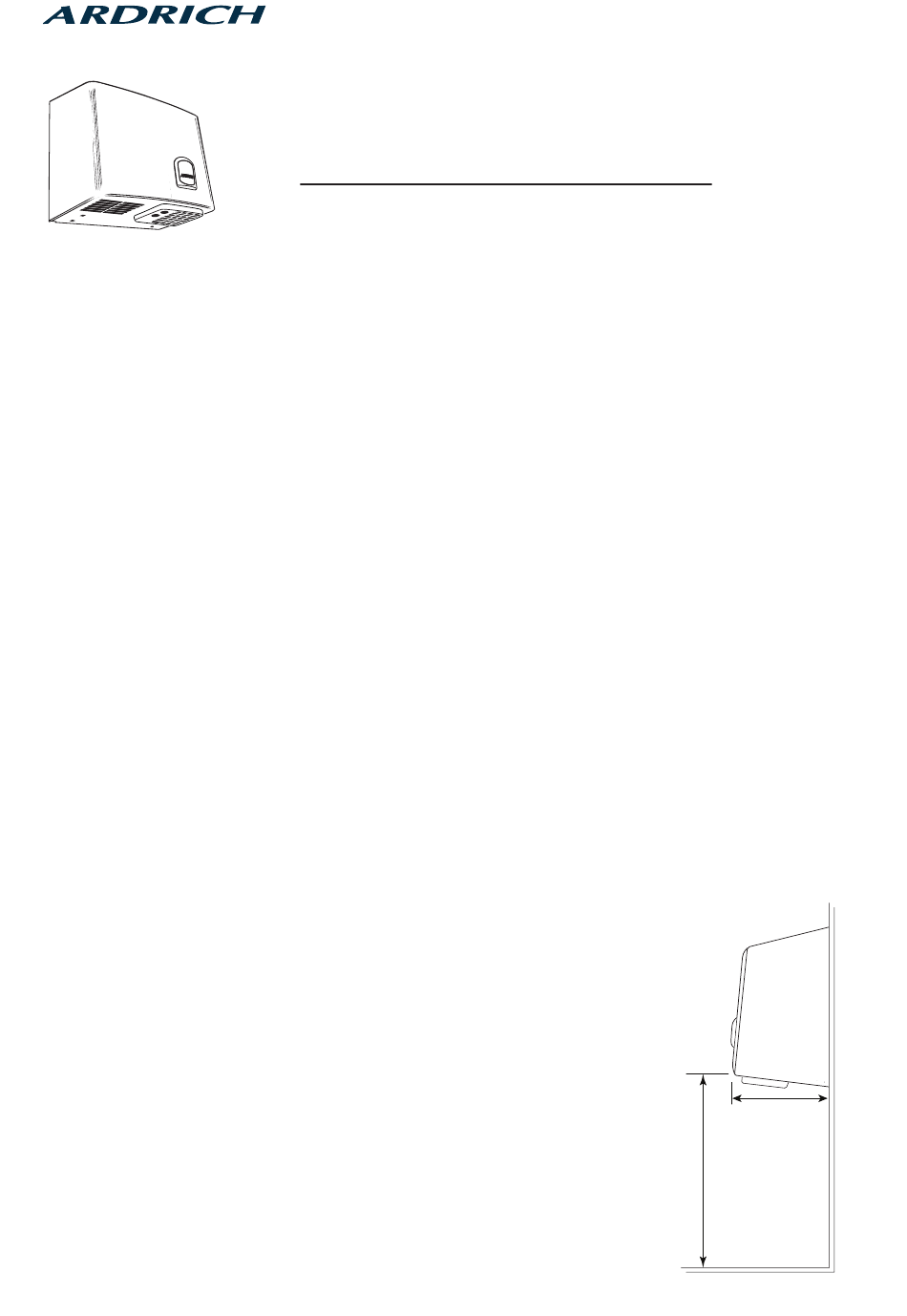

3. Mounting Template - Spacing and height

Mount two or more dryers 600 mm apart, centre to centre.
Recommended Mounting Height (Floor to bottom of dryer)
Men..................................................1180 mm
Women............................................1130 mm
Children, ages 3-7............................820 mm
Children, ages 8-10..........................920 mm
Children, ages 11-13......................1020 mm
Children, ages 14-17......................1130 mm
Disabled mounting height............1000 mm
Avoid mounting above washbasins or bench tops.

4. Fixing the dryer to the wall

Attach the dryer to the wall using the appropriate fasteners.
The wall should be reasonably flat. Use washer(s) to fill gaps.
Wall types:
• Brick/Concrete – Use 6 mm x 40 mm
• Stud/Drywall – Use 6mm x 40 mm screws.
Use 6 mm toggle bolts for dry-wall plaster wall.
HAND DRYERS
INSTALLATION GUIDE
AUTOMATIC – No. HD15300, HD15304
Minimum of 200 mm
Minimum of 200 mm
Minimum of 500 mm
A260M/SP ARDRICH
178mm
Recommended
Mounting Height
Floor Line
