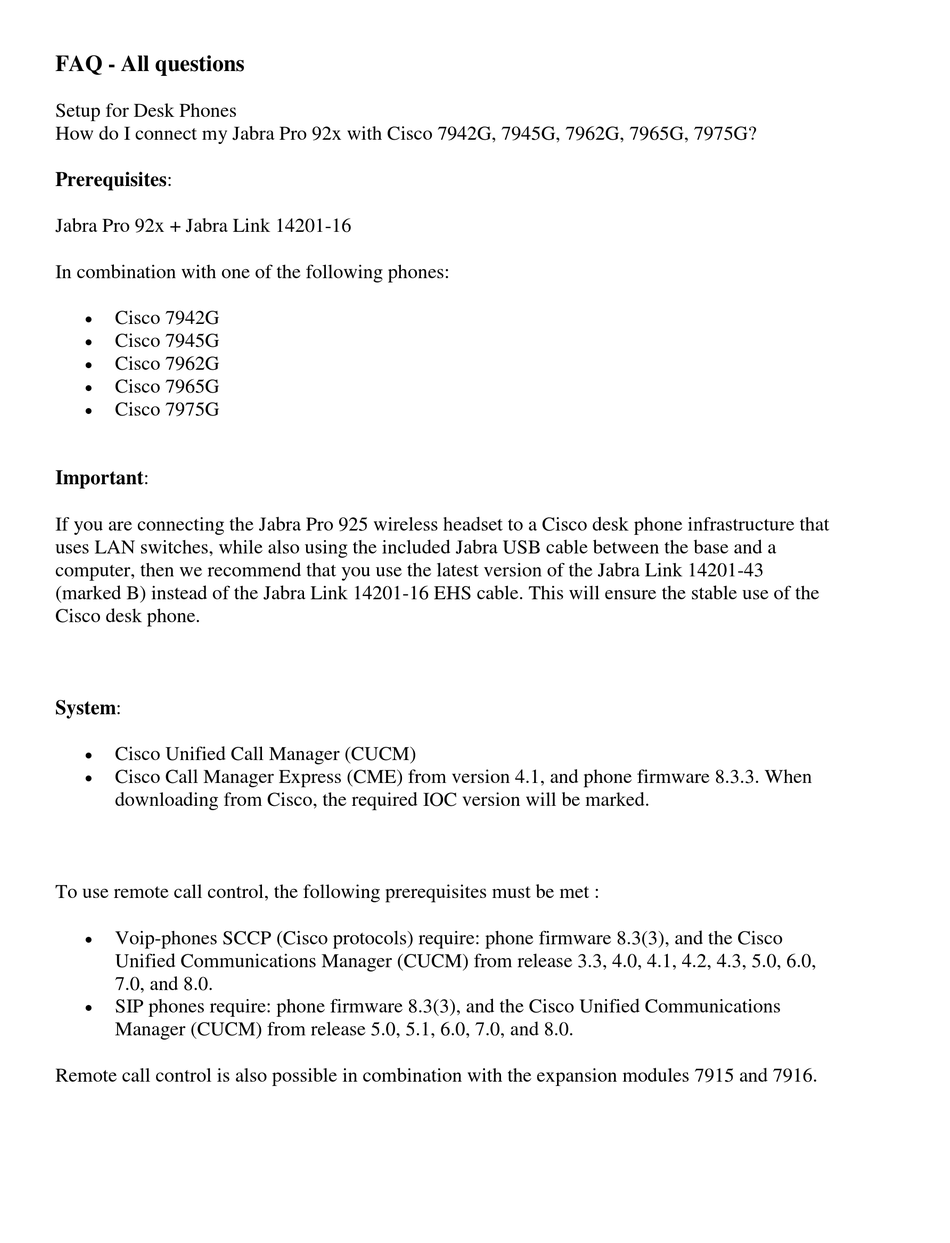

How do I connect my Jabra Pro 92x with Cisco 7942G, 7945G, 7962G, 7965G, 7975G?

Prerequisites:

Jabra Pro 92x + Jabra Link 14201-16

In combination with one of the following phones:



Cisco 7942G



Cisco 7945G



Cisco 7962G



Cisco 7965G



Cisco 7975G

Important:

If you are connecting the Jabra Pro 925 wireless headset to a Cisco desk phone infrastructure that

uses LAN switches, while also using the included Jabra USB cable between the base and a

computer, then we recommend that you use the latest version of the Jabra Link 14201-43

(marked B) instead of the Jabra Link 14201-16 EHS cable. This will ensure the stable use of the

Cisco desk phone.

System:



Cisco Unified Call Manager (CUCM)



Cisco Call Manager Express (CME) from version 4.1, and phone firmware 8.3.3. When

downloading from Cisco, the required IOC version will be marked.

To use remote call control, the following prerequisites must be met :



Voip-phones SCCP (Cisco protocols) require: phone firmware 8.3(3), and the Cisco

Unified Communications Manager (CUCM) from release 3.3, 4.0, 4.1, 4.2, 4.3, 5.0, 6.0,

7.0, and 8.0.



SIP phones require: phone firmware 8.3(3), and the Cisco Unified Communications

Manager (CUCM) from release 5.0, 5.1, 6.0, 7.0, and 8.0.

Remote call control is also possible in combination with the expansion modules 7915 and 7916.
