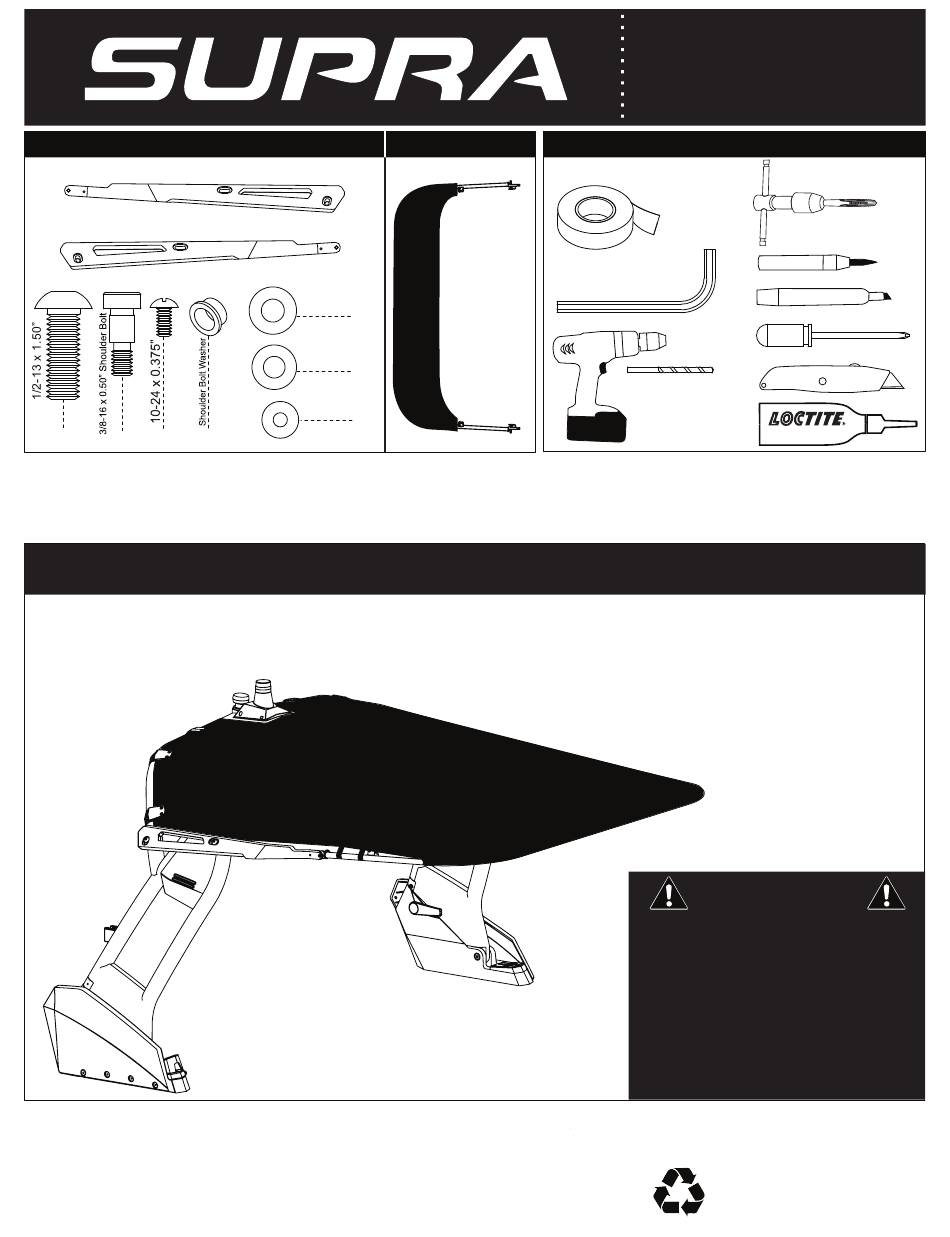

Contents of Bimini Box
Port Bimini Arm
Starboard Bimini Arm
x4
x2 x6
x2
Towers and tower accessories require regular maintenance. Tower hardware and retaining bolts can become loose with normal
operation; it is owner's responsibility to ensure all hardware is kept tight and secure. Corrosion and/or oxidation on coated
surfaces as well as on all hardware are specifically excluded from warranty as their care, maintenance, and environments of use
cannot be controlled by Roswell Wake Air. Damage due to misuse or improper care is also excluded from warranty. For full
Roswell recommends 2 people for installation of the bimini.
Read & follow these installation instructions carefully. Failure to do so may result in an improper
bimini installation. Damage to parts due to improper bimini installation is not covered under warranty.
www.roswellwakeair.com
Information: info@roswellwakeair.com
Warranty: warranty@roswellwakeair.com
If you have any questions please call : 1-855-962-WAKE(9253)
Bimini Frame,
Plastic
Canvas, Clips
Washer
x4
and Boot
Shim
Washer
x4
Pivot
Washer
x2
warranty details please contact your local dealer.
***Important***
Pro Edge Tower
Bimini Installation
Instructions
Tools Required
2 inch Low Tack
Masking Tape
5/16" Allen Key
3/16" Allen Key
9/64" Drill Bit
5/16" Drill Bit
RED
Drill
Attention
Installing your bimini clips in
freezing or near freezing
temperatures is NOT
recommended. Failure to
do so will result in broken
bimini clips. Damage to
parts from improper use is
not covered under warranty.
Rev. 15-Oct-15
10-24 UNC Tap
Center Punch
Marker
Phillips Screwdriver
Utility Knife
THREADLOCKER
Pg. 1/14
Advertisement
Related Manuals for Roswell SUPRA Pro Edge Tower
Summary of Contents for Roswell SUPRA Pro Edge Tower
- Page 1 Roswell Wake Air. Damage due to misuse or improper care is also excluded from warranty. For full warranty details please contact your local dealer.
- Page 2 Preparing your tower Bimini mounts Rubber Plugs Remove the 4 rubber plugs from the bimini mounts on your tower. These are press fit into the bimini mounts and do not require any tools to remove. Installing Bimini Arms Bolts Plastic Washers Port Bimini Arm Starboard Bimini Arm...
- Page 3 Low tack masking tape Apply a strip of 2 inch low tack masking tape along the entire rear tower tube from 2 inch Low Tack bimini arm to bimini arm. Masking Tape The strip should cover the portion of rear tube that faces the interior of the boat.
- Page 4 Fabric-Clips Installation: Bird’s Eye View Step 1 Snap the 6 bimini clips around the rear tube of the tower as illustrated. Adjust the bimini clip locations until they are symmetrical and the fabric is tight and wrinkle free. Top View **IMPORTANT** The position of the center Clips is the...
- Page 5 Fabric-Clips Installation: Step 4 Center Punch Mark ***When drilling the holes for your bimini clip it is important to drill the holes perpendicular to the location of the hole to be drilled. This will allow for an optimal fit of the bimini clip.*** Side View Using a cordless drill and a 9/64”...
- Page 6 Fabric-Clips Installation: Step 6 Repeat Steps H, I, J, K & L for the 2 middle bimini clips illustrated Be sure to pull the middle bimini clips away from the newly installed center clips prior to marking their center points. Remember to rotate the middle clips until the clip top surface is parallel with the top of the tower.
-
Page 7: Final Step
2 : Re-clip all of your bimini clips to the Re-Clip Bimini Clips tower. Use the finger tab to flex the clips over the tubing. 1 : Remove the folding quick release pins. Rotate the frame upwards and insert the quick release pins into the bimini arm only. - Page 8 Pro Edge Tower Bimini Owners Manual ***Important*** Read & follow these instructions carefully. Failure to do so may result in damage to parts. Damage to parts from improper use is not covered under warranty. Attention Using your bimini clips in freezing or near freezing temperatures is NOT recommended. Failure to do so will result in broken bimini clips.
- Page 9 Unfolding your Pro Edge Tower Bimini 1 : Undo the 2 straps that secure the bimini to your tower. 2 : Unfold the frame from the tower. Unzip the bimini boot from the bimini frame. Unroll your fabric, clips and middle bow.
- Page 10 Folding up your Pro Edge Tower Bimini 1 : Remove your 2 folding quick release pins and 2 : Rotate the frame upwards and insert the undo the 4 Velcro loops. quick release pins into the bimini arm only. Folding Quick Release Pin 3 : Unclip all of your bimini clips from 4 : Remove the quick release pins and lower the frame.
- Page 11 Quick release pins must Tower folding / Trailering be inserted into the bimini arms for trailering to avoid damage to parts *** Illustrated is the ONLY acceptable way to safely fold your Pro Edge Tower or trailer your Supra boat with the bimini on*** ATTENTION DO NOT TRAILER YOUR BOAT WITH THE BIMINI IN ITS OUTSTRETCHED POSITION...
- Page 12 Tightening your Pro Edge Tower Bimini Canvas It is normal that your bimini canvas will stretch over time and use. Your Pro Edge Tower Bimini has been designed to allow you to tighten your canvas as needed. There are 2 ways you can tighten your bimini canvas. You can use method 1, method 2 or a combination of both.
- Page 13 Tightening your Pro Edge Tower Bimini Canvas It is normal that your bimini canvas will stretch over time and use. Your Pro Edge Tower Bimini has been designed to allow you to tighten your canvas as needed. There are 2 ways you can tighten your bimini canvas. You can use method 1, 2 or a combination of both.
- Page 14 4 : If your quick release pins are still difficult to remove and insert with the 3 : Now that your shim washers have been added your frame and arms addition of the arm shim washers, Roswell recommends using a drill with should be parallel or much closer. Test removing and inserting your quick a 5/16”...
