I/O Expansion Module
Installation & Reference

Overview

The In-Sight
vision sensor supports up to
ten discrete inputs and ten discrete outputs.
Two inputs and two outputs are built-in to
the In-Sight processor. The remaining eight
inputs and outputs require the optional I/O
Expansion Module.
This document describes the I/O Expansion
Module, including the following topics:
Installation..................................... p. 2
Connector Pin Assignments ........... p. 5
Schematics ..................................... p. 7
Specifications ................................. p. 8
Product Contents:
The I/O Expansion Module kit (Cognex
P/N CIO-2350-00) includes the following
components:
I/O Expansion Module
(P/N 800-5712-2)
2.1 m (7.0 ft) I/O Expansion Module
Cable (P/N 300-0274-7)
NOTE: The In-Sight processor supplies power
to the I/O Expansion Module; no external power
supply is necessary.
š
š
1
1
26-pin D-sub connector to In-Sight processor
26-pin D-sub connector to In-Sight processor
2
2
LEDs
LEDs
3
3
Output terminals
Output terminals
4
4
Ground screw
Ground screw
5
5
Input terminals
Input terminals
6
6
DIN rail mount
#3 DIN rail mount

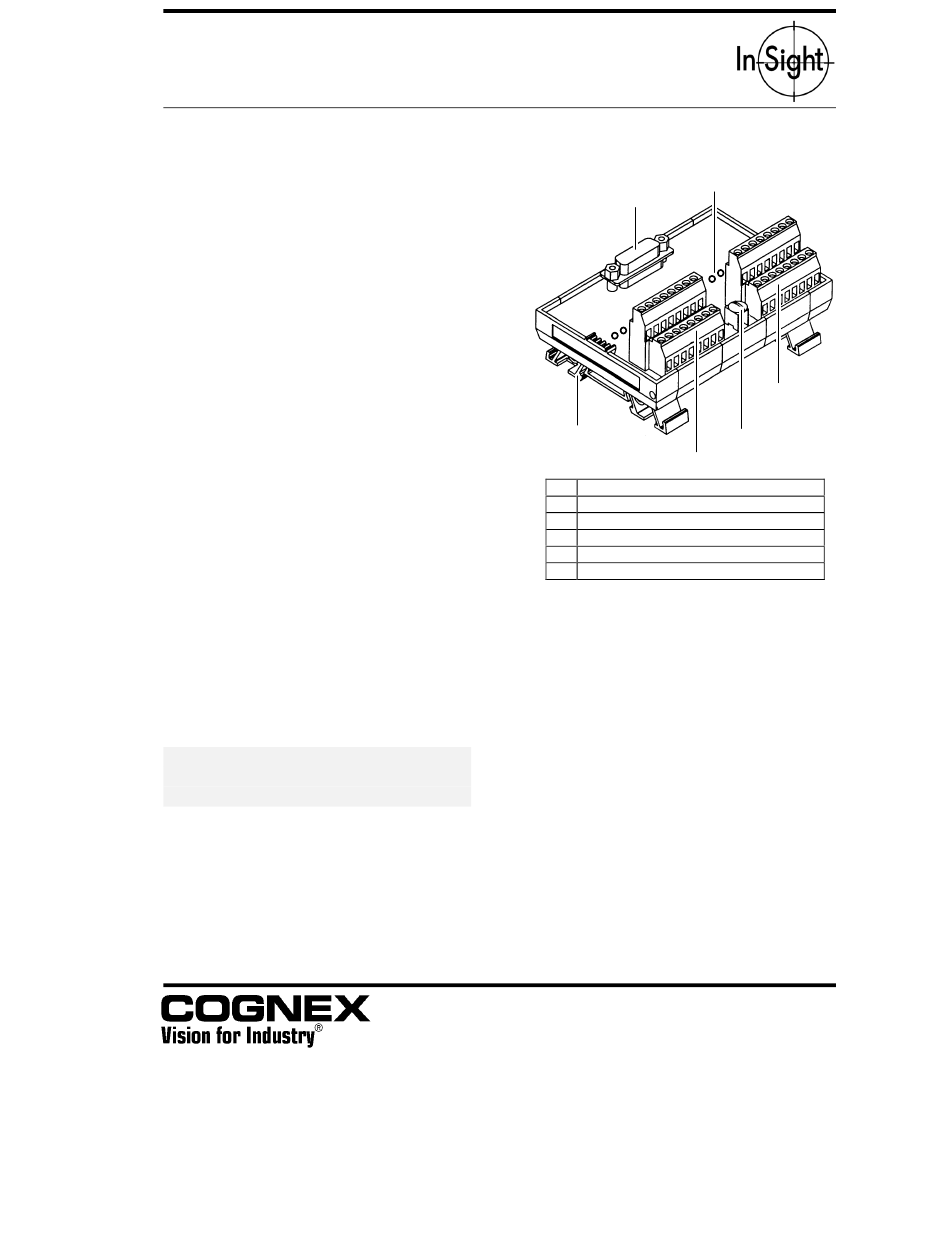

Figure 1 – I/O Expansion Module Overview
˜
˜
