Installation instructions for W10x-HD camera

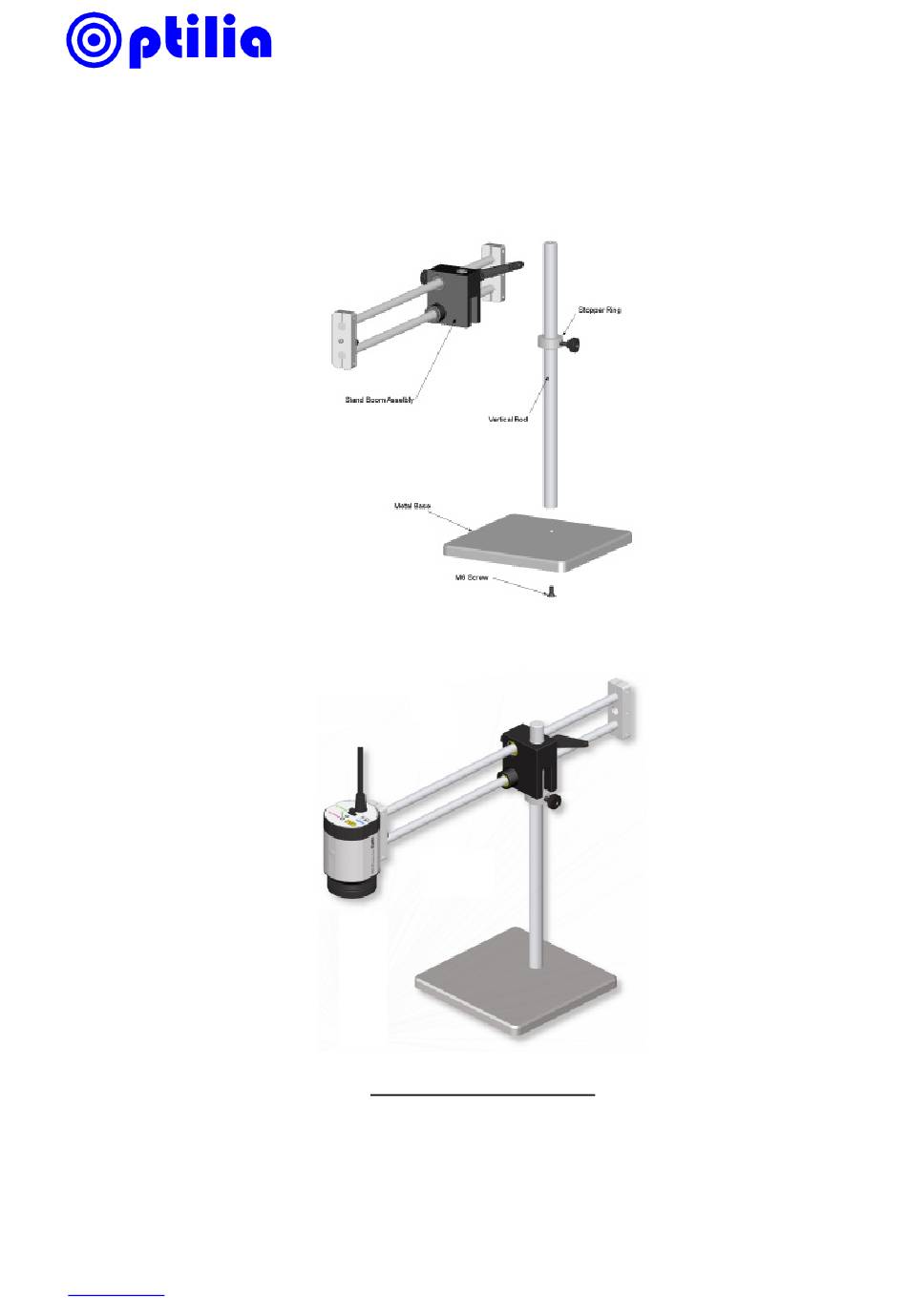

1. Assemble the Boom Stand according to the bellow picture.
2. Put the stand on a flat and stable working bench and mount the W10x-HD camera
onto the horizontal Boom.
3. Adjust height of the Boom for 245mm Working distance measured from front edge of
the camera. W10x-HD camera with standard optics has a focusing interval of
approximately 190-250mm. Auto focus will not function properly outside this range.
4. Working distance of the camera needs to be decreased according to the bellow if
close-up lenses are attached:
www.optilia.eu
Rev D, January-2011
Optilia Instruments AB
Advertisement
Table of Contents
Related Manuals for Optilia W10x-HD
Summary of Contents for Optilia W10x-HD
- Page 1 Installation instructions for W10x-HD camera 1. Assemble the Boom Stand according to the bellow picture. 2. Put the stand on a flat and stable working bench and mount the W10x-HD camera onto the horizontal Boom. 3. Adjust height of the Boom for 245mm Working distance measured from front edge of the camera.
- Page 2 5. Connect the W10x-HD camera to Y/Pb/Pr Component Video inputs of a FULL HD monitor or TV. Turn on W10x-HD and select Component Source of your TV or LCD. Laser pointer can be turned on/off via a switch on the back side of the Camera.
- Page 3 Main Window Camera Controls Control Description 1x-10x optical zoom. In standard W10x-HD camera, the horizontal angle of Optical Zoom view is approximately 45 degrees at 1x and 4.5 degrees at 10x. Sharpness Adjusts enhancement of edges of the objects in the picture.
- Page 4 Optilia Instruments AB condition and occupying more than 50% of the image when you set the white balance at this mode. Auto: This mode computes the white balance output using colour from the entire screen Manual: Manual Control of R- and B-gain Picture Effect Sets the picture to Normal, Black &...
