Optilia W10x-HD Installation Instructions

Installation instructions for Optilia HD Cameras
1. Assemble the Boom Stand according to the bellow picture.
2. Put the stand on a flat and stable working bench and mount the W10x-HD/W20x-HD
camera onto the horizontal Boom.
3. Adjust height of the Boom for approximately 245mm Working distance measured
from front edge of the camera. HD cameras with standard optics has a focusing
interval of approximately 190-245mm. Auto focus will not function properly outside
this range.
4. Working distance of the camera needs to be decreased according to the bellow table
if close-up lenses are attached:
www.optilia.eu
Rev E, February 2012

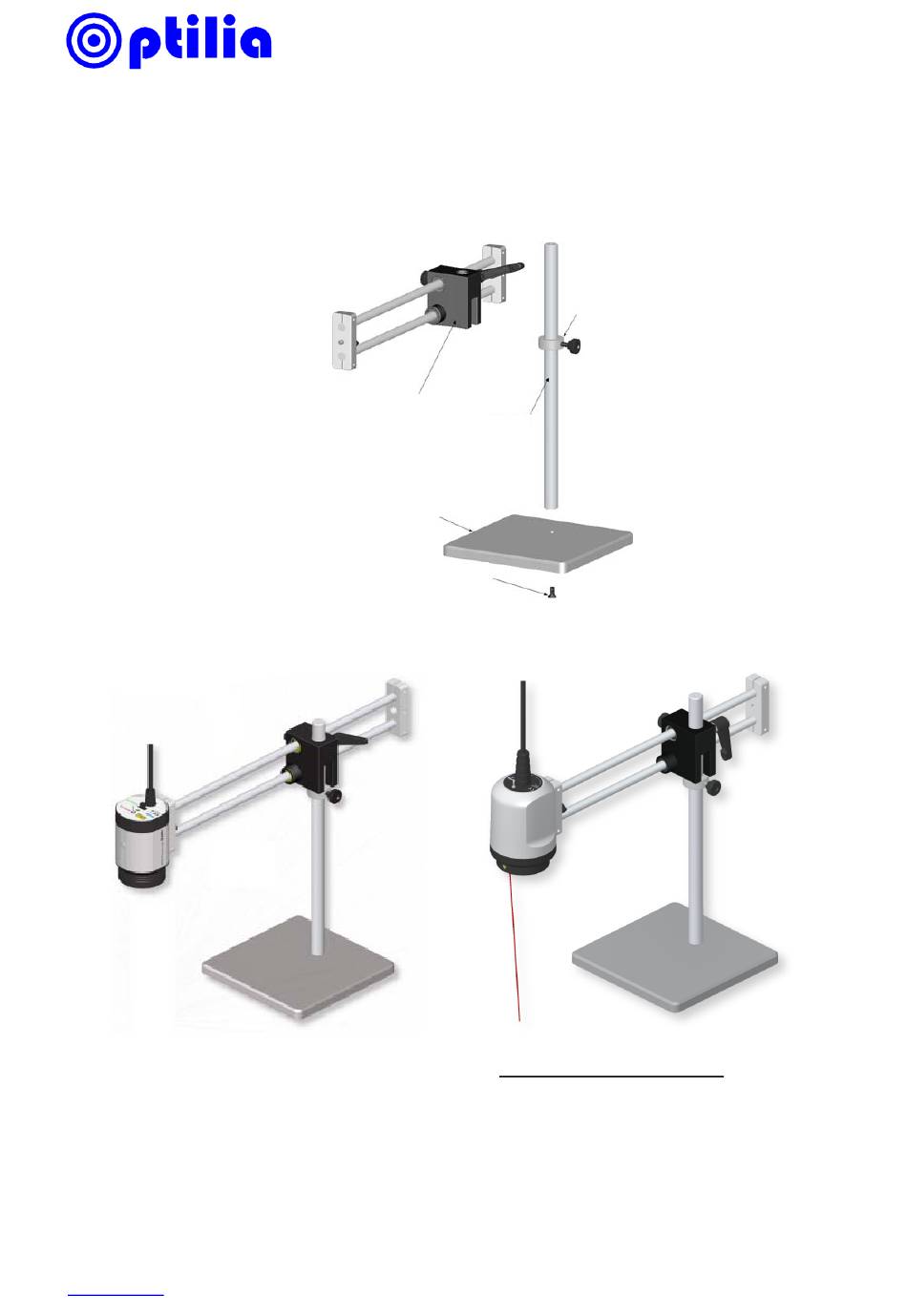

Stand Boom Assembly
Vertical Rod
Base
M6 screw
Optilia Instruments AB
Stopper Ring
