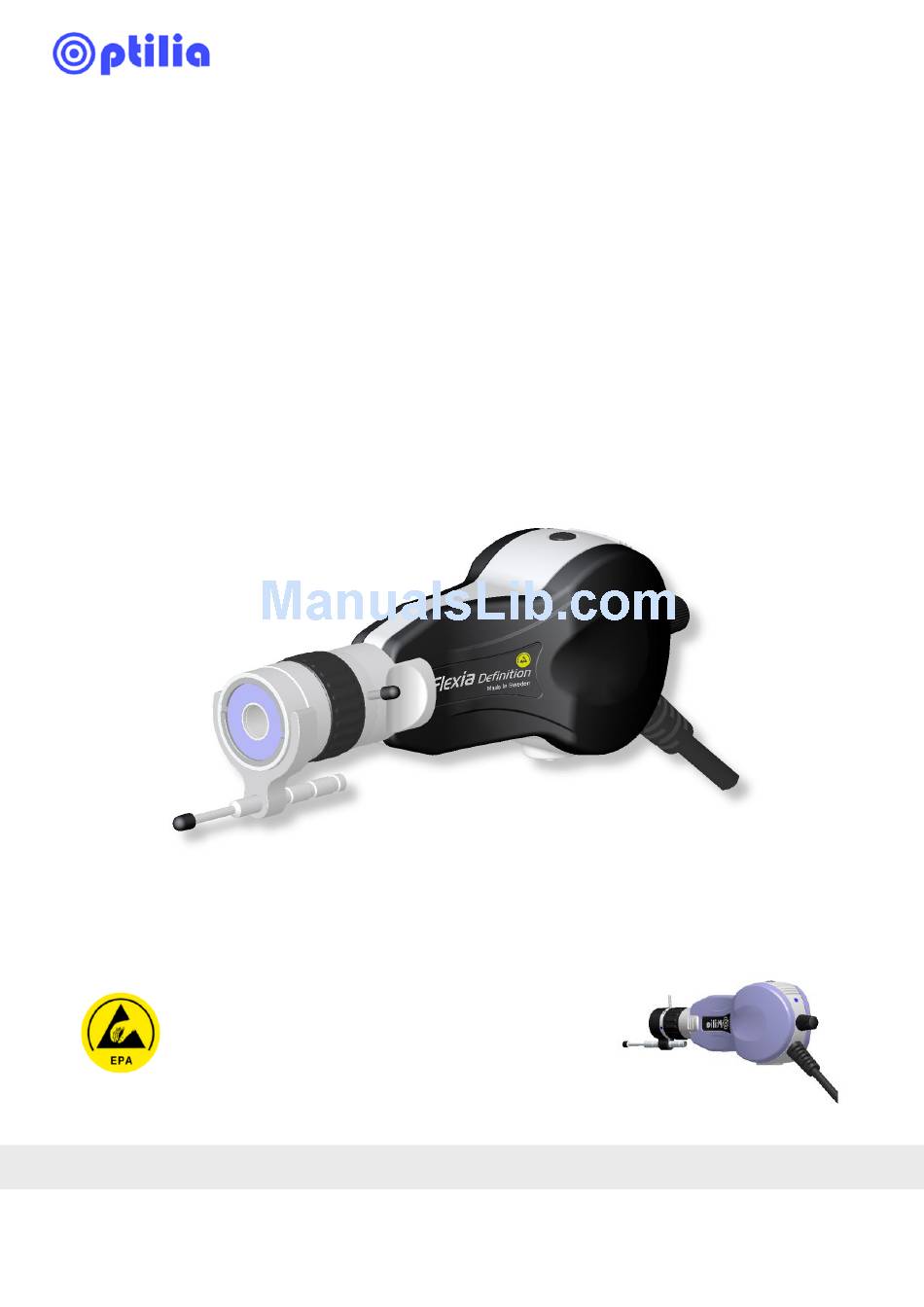

- Page 1 Instructions Manual Flexia Video Inspection Microscope Flexia Definition HM ESD Flexia Definition ESD Flexia Definition HM Blue Flexia Definition Blue This manual describes how to setup and use Flexia Definition Digital (ESD-protected and Blue)
- Page 2 Contents 1. Safety and maintenance Instructions 2. About Flexia 3. Installation 4. Image view & Capture in OptiPix software 5. Working distance and Focus adjustment 6. Illumination 7. Notes...
- Page 3 Do not scratch or hit optical surfaces of Flexia! This precaution is important especially when you operate the device on free hand. Only use DC Power Sources provided or approved by Optilia. Only use accessories provided or approved by Optilia.
- Page 4 2. About Flexia Flexia is a lightweight, mobile and highly flexible digital video microscope with zoom optics and built-in long-life LED illumination adapted to the electronics industry. Flexia provides excellent live image quality, flexibility, digital image recording and documentation. The microscope delivers a digital USB 2.0 signal for recording pictures or performing software measurements.
- Page 5 3. Installation Flexia is directly connected to USB2.0 port of PC or Laptop with MS-Windows OS. Follow the instructions below to install Flexia to a PC. 1. Ensure that Flexia is not plugged to the USB port before installing the drivers.
- Page 6 1. Ensure that Flexia drivers are installed, see chapter installation for further instructions. 2. Install Optilia OptiPix from the provided installation CD. On “Select OptiPix Version” dialog box, select: a. “OptiPix Full” if you have ordered a full license and the software protection USB dongle.
- Page 7 5. Working distance and Focus adjustment Image magnification (as well as the object distance) is changed by rotating the “zoom ring” as illustrated below. Move Flexia slightly forward/backward and rotate the Zoom adjuster to get into the best focus. Zoom ring Telescopic pin 6.
- Page 8 Optilia Instruments AB´s operating and maintenance instructions Optilia Instruments AB shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as original Optilia products or Optilia approved products by Optilia Instruments AB.
