Kunbus DF PROFINET IO PCI Installation Instruction

Hide thumbs Also See for DF PROFINET IO PCI:

Advertisement

Table of Contents

Installation Instruction
DF PROFINET IO PCIe
V 1.6 • 02/04/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF PROFINET IO PCI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kunbus DF PROFINET IO PCI

Summary of Contents for Kunbus DF PROFINET IO PCI

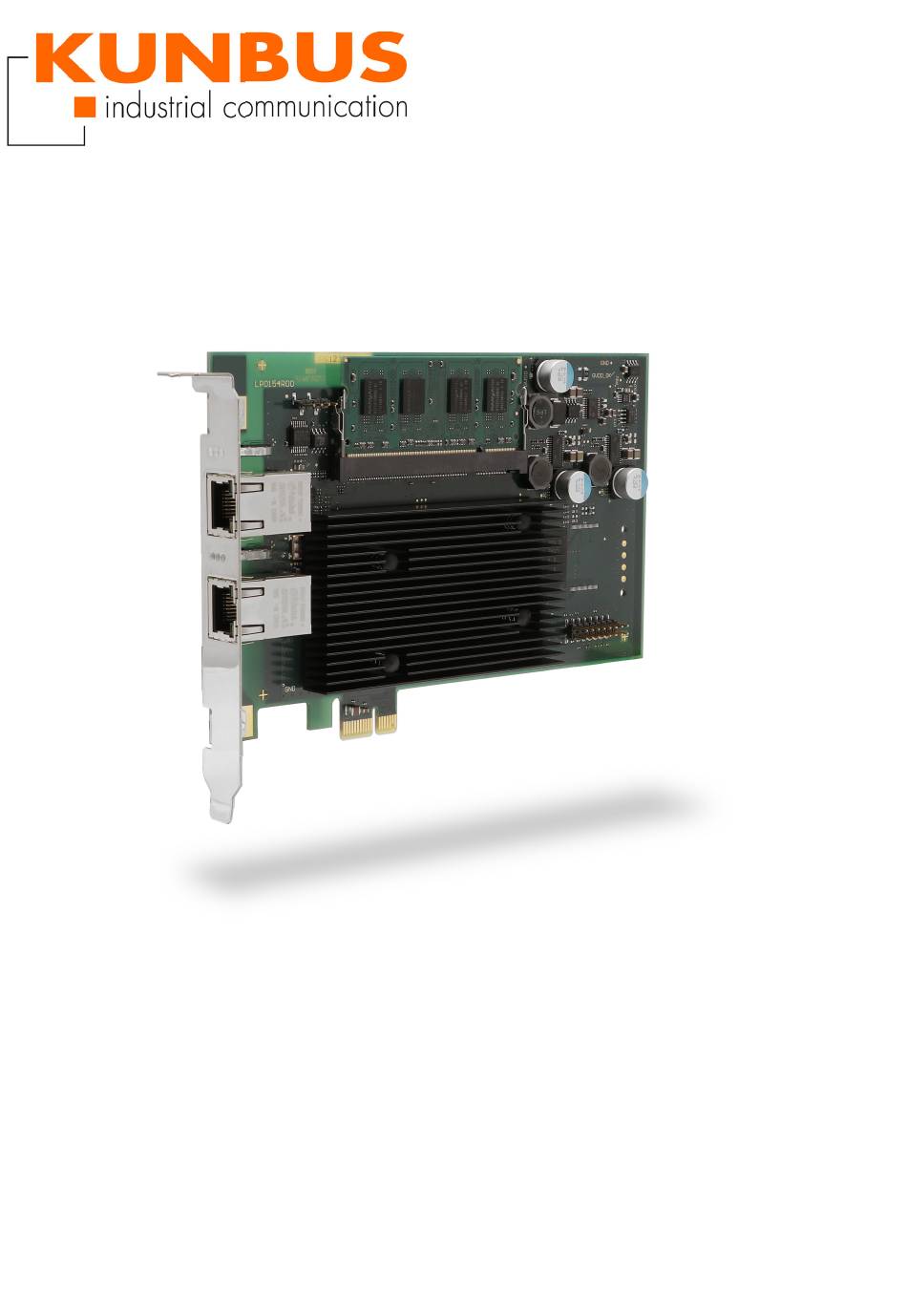

  • Page 1 Installation Instruction DF PROFINET IO PCIe V 1.6 • 02/04/2019...

  • Page 2: Disclaimer

    1 Disclaimer © 2019 KUNBUS GmbH, Denkendorf (Deutschland) The contents of this user manual have been prepared by the KUNBUS GmbH with the utmost care. Due to the technical development, the KUNBUS GmbH reserves the right to change or replace the contents of this user manual without prior notice.

  • Page 3: Table Of Contents

    KUNBUS GmbH Table of Content Table of Content 1 Disclaimer ............................ 2 2 Safety Instructions.......................... 4 3 Installation on the Board ........................ 5 4 Description of the LEDs ......................... 6 5 Technical Data.......................... 7 Installation Instruction DF PROFI PCIe...

  • Page 4: Safety Instructions

    In addition, these persons must be familiar with all warning instructions and maintenance measures in this text.Folgen The DF PROFINET IO PCI board is designed exclusively for PELV WARNING operation according to EN 60950/EN 60204/VDE 0805-1.

  • Page 5: Installation On The Board

    3 Installation on the Board The DF PROFINET IO PCI is a plug and play compatible board for 5 V and 3.3 V 32-Bit PCI-Slots. The configuration entirely takes place by means of the delivered software or the BIOS of your PC respectively.

  • Page 6: Description Of The Leds

    4 Description of the LEDs State Meaning Green on Firmware loaded and started Firmware not loaded Yellow on PROFINET IO started PROFINET IO stopped Operation as PROFINET IO Controller on Ethernet Interface PROFINET IO-Failure (min. one device not connected to the PROFINET IO network or with external dia- gnosis) No PROFINET IO-Failure Operation as PROFINET IO Device on Ethernet Interface 2...

  • Page 7: Technical Data

    5 Technical Data Functionality PN IO Controller PN IO Specification V 2.3 PN IO Performance Class Class B (<= 1 ms) Processor 1.3 GHz Freescale PowerQUICC Memory 1 GB DDR II 32 MB Flash Memory PCI Interface PCI Rev. 2.2, 32 Bit (5 V and 3.3 V supported) Ethernet Interface RJ45 100 Base-T(X)
