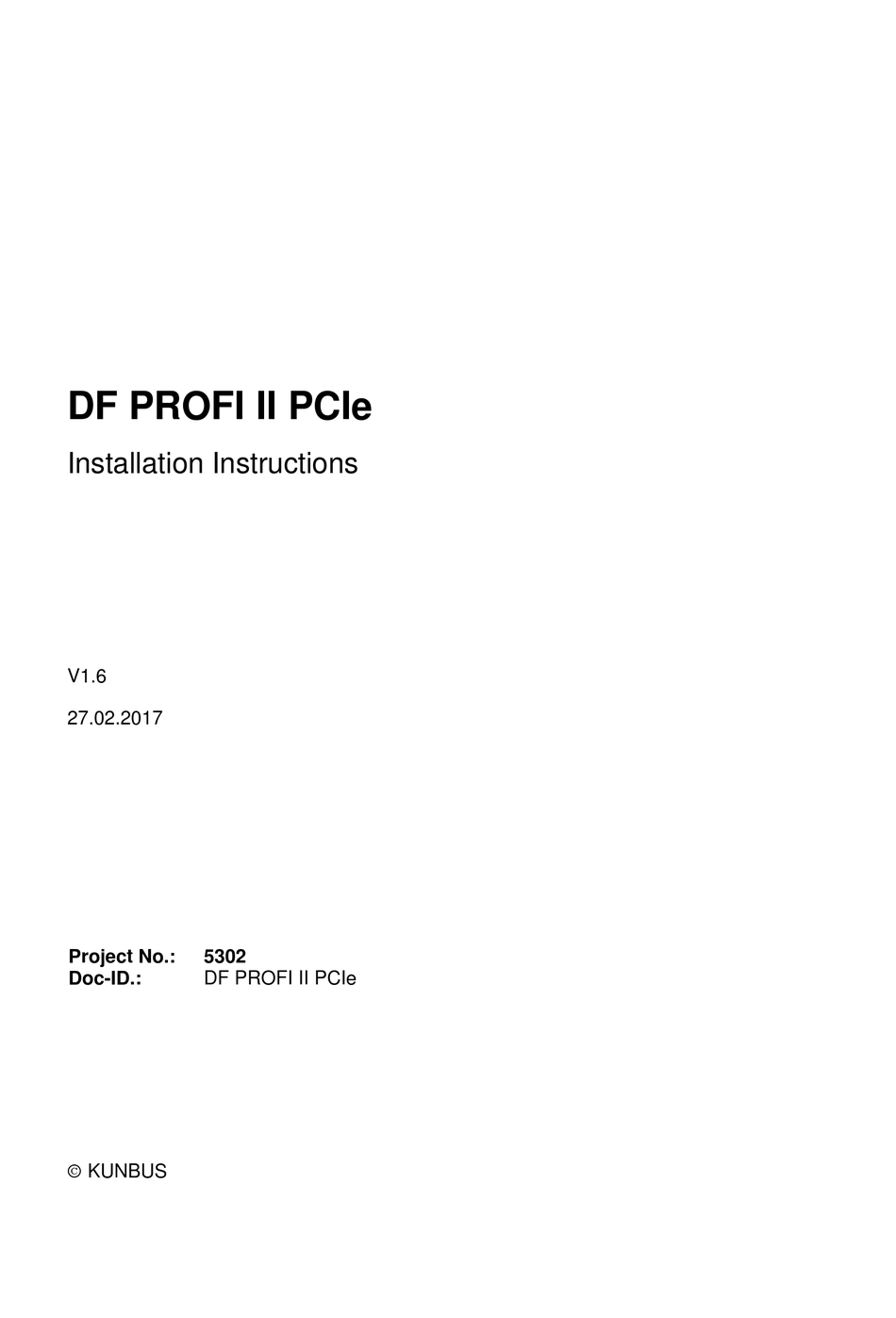

- Page 1 DF PROFI II PCIe Installation Instructions V1.6 27.02.2017 Project No.: 5302 Doc-ID.: DF PROFI II PCIe KUNBUS...
- Page 2 +49 711 300 20 677 Copyright 2017 by KUNBUS GmbH This document is protected by copyright. Reproduction, duplication, publishing, transfer or disclosure of the contents of this document are only permitted after prior written agreement has been obtained from KUNBUS GmbH.
-
Page 3: Table Of Contents
DF PROFI II PCIe - Installation Instructions Contents Contents Installation of the Board ....................1 Safety Instructions ......................2 Pin Assignment ......................3 Description of the LEDs ....................4 Technical Data ......................5 Declaration of Conformity ..................... 6 KUNBUS... - Page 4 Contents DF PROFI II PCIe - Installation Instructions List of Figures Figure 1: DF PROFI II PCIe Board ..................1 Figure 2: PROFIBUS Terminator ................... 3 Figure 3: Declaration of Conformity, page 1 ................6 Figure 4: Declaration of Conformity, page 2 ................7 Figure 5: Declaration of Conformity, page 3 ................
-
Page 5: Installation Of The Board
Installation of the Board Installation of the Board The DF PROFI II PCIe is a plug & play compatible board for PCI Express Slots. The configuration entirely takes place by means of the delivered software or the BIOS of your PC respectively. -
Page 6: Safety Instructions
Safety Instructions DF PROFI II PCIe - Installation Instructions Safety Instructions WARNING: Disregarding this Shielding warning may result in damage to The shielding ground of the equipment and/or serious personal connected twisted pair cables is injury. Only qualified personnel may electrically connected to the female start up and operate this device. -
Page 7: Pin Assignment
DF PROFI II PCIe - Installation Instructions Pin Assignment Pin Assignment Pin Number Signal Function Direction shielding RxD/TxD-P Data+ Input/Output 0V (potential free 80 mA) Feeding of bus terminator Input 5V (potential free 80 mA) Feeding of bus terminator Output... -
Page 8: Description Of The Leds
Description of the LEDs DF PROFI II PCIe - Installation Instructions Description of the LEDs Green LED: On: Firmware loaded and started Off: Firmware not loaded Yellow LED: On: PROFIBUS started Off: PROFIBUS stopped Red LED: On: PROFIBUS-Failure (min. one slave not connected to the bus or with external... -
Page 9: Technical Data
DF PROFI II PCIe - Installation Instructions Technical Data Technical Data Processor Net+Arm 40, 33 MHz PROFIBUS Controller ASPC2, 48 MHz Memory 1 Mbyte SRAM 2 Mbyte Flash Type Memory PCI Interface PCI-Express X1 PROFIBUS Interface 1 * Sub-D 9 pins... -
Page 10: Declaration Of Conformity
Declaration of Conformity DF PROFI II PCIe - Installation Instructions Declaration of Conformity Figure 3: Declaration of Conformity, page 1 KUNBUS V1.6 / 27.02.2017... -
Page 11: Figure 4: Declaration Of Conformity
DF PROFI II PCIe - Installation Instructions Declaration of Conformity Figure 4: Declaration of Conformity, page 2 KUNBUS V1.6 / 27.02.2017... -
Page 12: Figure 5: Declaration Of Conformity
Declaration of Conformity DF PROFI II PCIe - Installation Instructions Figure 5: Declaration of Conformity, page 3 KUNBUS V1.6 / 27.02.2017... - Page 13 DF PROFI II PCIe - Installation Instructions Declaration of Conformity Final Page ! KUNBUS V1.6 / 27.02.2017...
