Kunbus DF PROFINET IO PCI Installation Instructions Manual

Hide thumbs Also See for DF PROFINET IO PCI:

Advertisement

Quick Links

DF PROFINET IO PCI

Installation Instructions

V1.3/31.03.2017
 KUNBUS
DF PROFINET IO CPCI – Installation Instructions - V1.3/31.03.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF PROFINET IO PCI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kunbus DF PROFINET IO PCI

  • Page 1: Installation Instructions

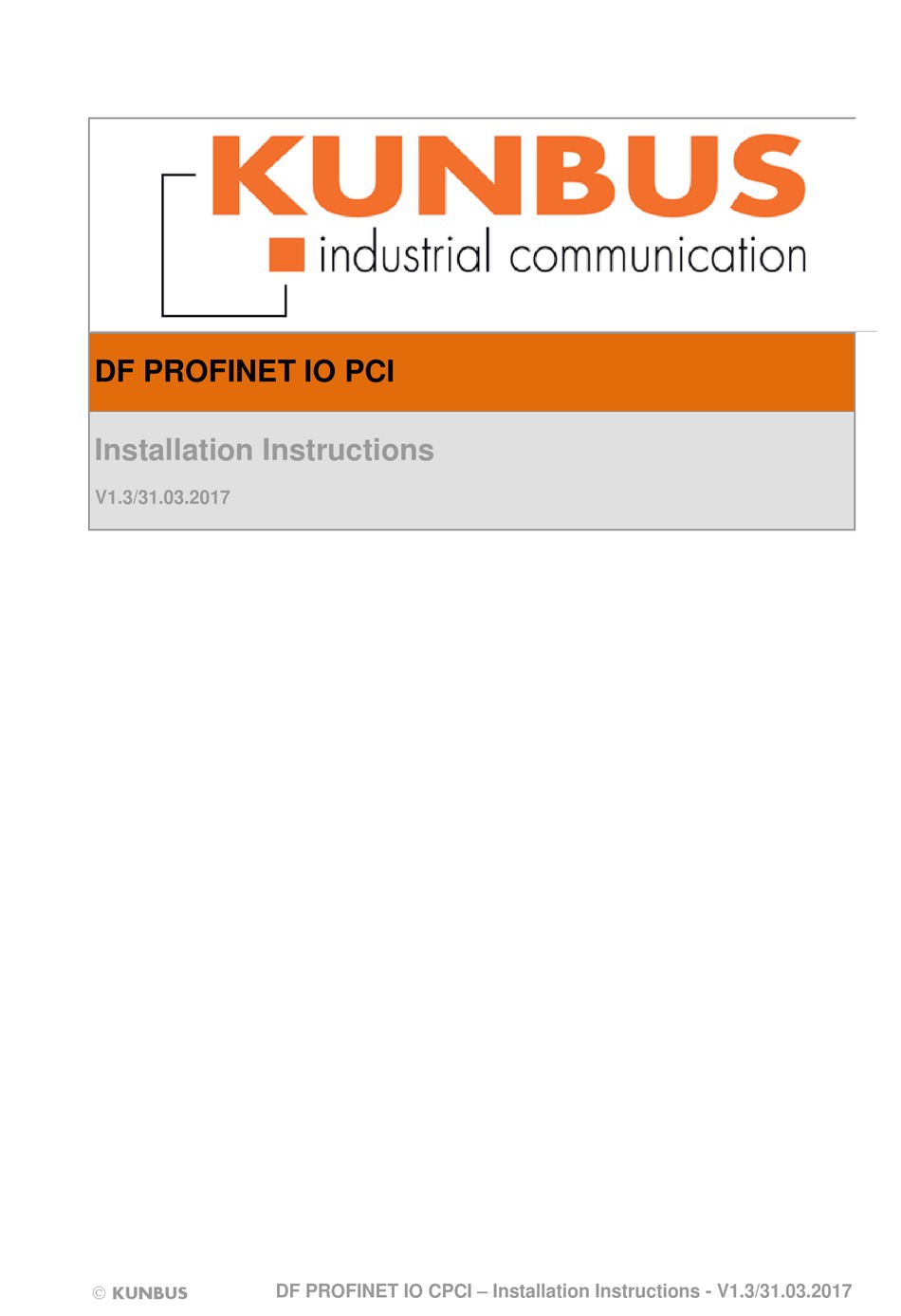

    DF PROFINET IO PCI Installation Instructions V1.3/31.03.2017  KUNBUS DF PROFINET IO CPCI – Installation Instructions - V1.3/31.03.2017...
  • Page 2: Revision History

    Heerweg 15c 73770 Denkendorf Phone +49 711 300 20 678 +49 711 300 20 677 Copyright  2017 by KUNBUS GmbH KUNBUS Business Confidential/ Proprietary This document includes data that shall not be duplicated, used, or disclosed - in whole or in part - for any purpose other than to evaluate this document.
  • Page 3: Table Of Contents

    Installation Instructions Contents Contents Safety Instructions ......................1 Installation of the Board ....................2 Description of the LED's ....................3 Technical Data ......................4 CE-Conformity Declaration ................... 5  KUNBUS DF PROFINET IO PCI-Installation Instructions-V1.3/31.03.2017 Business Confidential/KUNBUS Proprietary...
  • Page 4: List Of Figures

    Contents Installation Instructions List of Figures Figure 1: DF PROFINET IO PCI - Board ................2 DF PROFINET IO PCI-Installation Instructions-V1.3/31.03.2017  KUNBUS Business Confidential/KUNBUS Proprietary...
  • Page 5: List Of Tables

    Installation Instructions Contents List of Tables Table 1: Technical Data ......................4  KUNBUS DF PROFINET IO PCI-Installation Instructions-V1.3/31.03.2017 Business Confidential/KUNBUS Proprietary...
  • Page 6 Contents Installation Instructions Blank page DF PROFINET IO PCI-Installation Instructions-V1.3/31.03.2017  KUNBUS Business Confidential/KUNBUS Proprietary...
  • Page 7: Safety Instructions

    DF PROFINET IO PCI - Installation Instructions Safety Instructions 1 Safety Instructions WARNING: Disregarding this Shielding warning may result in damage to The shielding ground of the equipment and/or serious personal connected twisted pair cables is injury. Only qualified personnel may electrically connected to the female start up and operate this device.
  • Page 8: Installation Of The Board

    DF PROFINET IO PCI - Installation Instructions 2 Installation of the Board The DF PROFINET IO PCI is a Plug&Play-compatible board for 5V and 3.3 V 32-Bit PCI- Slots. The configuration entirely takes place by means of the delivered software or the BIOS of your PC respectively.
  • Page 9: Description Of The Led's

    DF PROFINET IO PCI - Installation Instructions Description of the LED's 3 Description of the LED's Green LED: On: Firmware loaded and started Off: Firmware not loaded Yellow LED: On: PROFINET IO started Off: PROFINET IO stopped Red LED: On: PROFINET IO-Failure Off: No PROFINET IO-Failure ...
  • Page 10: Technical Data

    Technical Data DF PROFINET IO PCI - Installation Instructions 4 Technical Data Functionality PN IO Controller PN IO Specification V 2.3 PN IO Performance Class Class B (<= 1 ms) Processor 1.3 GHz Freescale PowerQUICC III Memory 1 GB DDR II...
  • Page 11: Ce-Conformity Declaration

    DF PROFINET IO PCI - Installation Instructions CE-Conformity Declaration 5 CE-Conformity Declaration  KUNBUS V1.3 / 31.03.2017...
  • Page 12 CE-Conformity Declaration DF PROFINET IO PCI - Installation Instructions  KUNBUS V1.3 / 31.03.2017...
  • Page 13 DF PROFINET IO PCI - Installation Instructions CE-Conformity Declaration  KUNBUS V1.3 / 31.03.2017...
