Page 1: Installation Manual

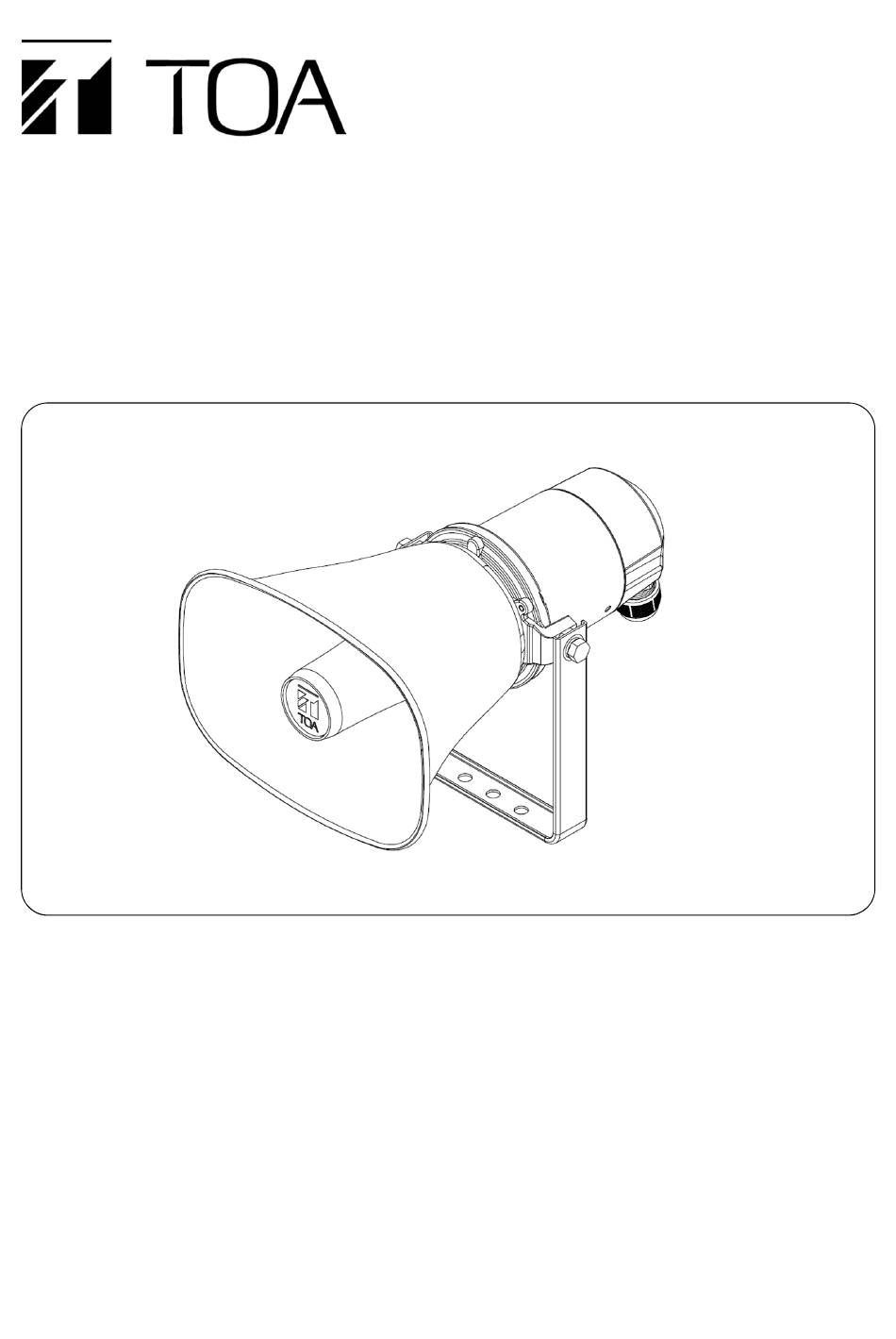

INSTALLATION MANUAL IP HORN SPEAKER UC- 4SC615 Q Thank you for purchasing TOA’s IP Horn Speaker. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. -
Page 2: Table Of Contents
CONTENTS 1. SAFETY INFORMATION ..............3 2. OVERVIEW ..................4 3. FEATURES ..................5 4. NAMES AND FUNCTIONS ............... 5 5. INSTALLATION PRECAUTIONS ............6 6. INSTALLATION ................. 7 ............. 7 6.1. How to Use the Cable Gland ................ 7 6.2. -
Page 3: Safety Information
AC outlet and contact your nearest TOA dealer. • When installing the unit in the snowy area, Make no further attempt to operate the unit in... -
Page 4: Overview
Warning: Operation of this equipment in a residential environment could cause radio interference. 2. OVERVIEW TOA's UC-4SC615 is an IP horn speaker which can be directly connected to an IP network as an endpoint device with a single network cable. Voice announcement, two-way communication, and audio monitoring can be achieved through network. -
Page 5: Features
3. FEATURES Conversation ・SIP conversation with SIP telephones or other audio communication devices using SIP protocol. ・ONVIF conversation with VMS software. Paging ・Multi-cast paging can be received from 10 different stations. ・Background music can be selected from the internal audio source play-list. (Can be used by future updates) Monitoring ・Audio stream being monitored by VMS with ONVIF. -
Page 6: Installation Precautions
1. System Status Indicators 6. External Control Input and Relay Output By control input, you can play internal audio Indicator Activity System Status source and call to SIP telephone. During startup or By connecting the relay output to a flashlight Blue In broadcasting etc., you can indicate the status such as... -
Page 7: Installation
6. INSTALLATION 6.1. How to use the Cable Gland Follow the instructions below when installing the LAN cable. *Recommended cable: φ”4.5~6.0”mm Step 1. Step 3. Separate the cable gland components from each Fix all the components except for the lid. other. -
Page 8: System Settings
7. SYSTEM SETTINGS 7.1. Before You Begin Access the web servers of all devices using the web browser, and then set up the system. Settings cannot be performed while offline. • Make sure you remember combinations of MAC address and IP address. •... -
Page 9: Initialization
8. INITIALIZATION Follow the procedure below to restore the UC- 4SC615 unit to its default setting states: Step 1. Connect a LAN cable and restart UC-4SC615 while pressing the Reset switch. Initialized setting: Login User name Reset switch Login Password IP address (Default IP: 192.168.14.1) Subnet Mask Default Gateway... -
Page 10: Software License Information
For Specific Open-Source Software Information Please contact your nearest TOA dealer if you require details about any of the open-source software incorporated within the UC-4SC615. However, we will not be able to respond to inquiries about the contents of the open source. -
Page 11: Specifications
10. SPECIFICATIONS Power Source PoE / PoE+ (IEEE802.3af/at) (via RJ-45) Power Consumption 13W (Use of the PoE) 22W (Use of the PoE+) Microphone Electret Condenser Microphone Amplifier Rated Output 8W (Use of the PoE) 15W (Use of the PoE+) Sensitivity 121dB (15W, 1m) (500Hz - 2.5kHz, peak level) 109dB (1W, 1m) (500Hz –... - Page 12 Traceability Information for Europe Manufacturer: Authorized representation: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan Suederstrasse 282, 20537 Hamburg, Germany www.toacanada.com TOA CANADA CORPORATION...
