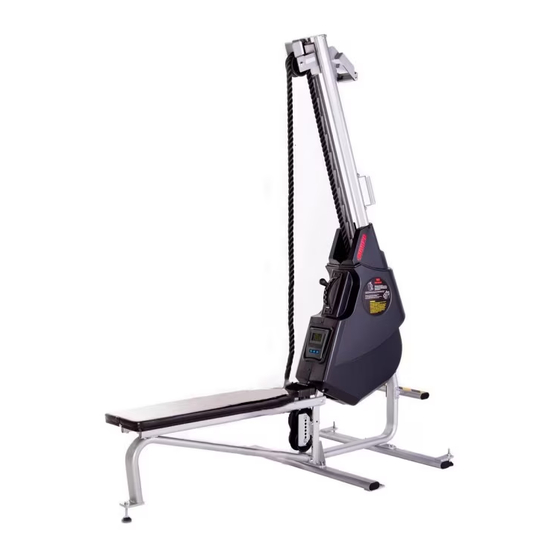

Marpo Kinetics VMX Manual
Hide thumbs
Also See for VMX:
- Maintenance and safety manual (11 pages) ,
- Removal instructions (5 pages) ,
- Important information manual (6 pages)
Advertisement
Quick Links
Marpo Kinetics, Inc.
258 LINDBERGH AVE, Livermore, CA 94551
•
(925) 606-6919
• www.marpokinetics.com
- VMX –
IMPORTANT
INFORMATION
TO SAFELY REMOVE PRODUCT
FROM THE PACKAGE,
FOLLOW THESE INSTRUCTIONS
FOR SAFETY, TWO OR MORE PEOPLE MUST ASSIST IN THE PACKAGE
REMOVAL AND PRODUCT INSTALLATION.
IT IS BEST THAT THE REMOVAL OF THE PRODUCT FROM THE PACKAGE, BE
DONE NEAR THE AREA WHERE THE PRODUCT WILL BE PLACED FOR USE.
THIS WILL ELIMINATE THE NEED TO MOVE THE PRODUCT AROUND AFTER
IT IS ASSEMBLED. SHOULD THERE BE A NEED TO MOVE THE PRODUCT,
THERE MUST ALWAYS BE AT LEAST TWO PEOPLE DOING THIS OPERATION
TO AVOID ANY INJURIES. TO PROTECT THE ROPE FROM SNAGS, IT MUST BE
KEPT WRAPPED UNTIL IT IS READY TO BE STRETCHED ONTO THE PULLEYS.
REMEMBER, ALWAYS KEEP ALL BODY PARTS AWAY FROM PULLEYS OR ANY
MOVING PARTS AS THESE ELEMENTS CAN CAUSE SERIOUS INJURY.
MINORS SHOULD NEVER BE ALLOWED TO OPERATE THE MACHINE WITHOUT
THE CONSENT AND CONSTANT SUPERVISION OF AN ADULT.
Securing Equipment
All MARPO equipment must be secured to the floor to stabilize and eliminate rocking or
tipping. This must be performed by a licensed contractor. DO NOT use the equipment if it
is not set up and located on a solid, level surface.
DO NOT install equipment on an uneven surface.
Use fasteners having a minimum of 500 lbs. tensile capacity (3/8" grade 2 bolts or better).
If legs/frame do not make contact with the ground, DO NOT pull down with anchors. Shim
any leg or frame not in contact with surface using flat washers.
1
Advertisement
Related Manuals for Marpo Kinetics VMX
Summary of Contents for Marpo Kinetics VMX
-
Page 1: Securing Equipment
Marpo Kinetics, Inc. 258 LINDBERGH AVE, Livermore, CA 94551 • (925) 606-6919 • www.marpokinetics.com - VMX – IMPORTANT INFORMATION TO SAFELY REMOVE PRODUCT FROM THE PACKAGE, FOLLOW THESE INSTRUCTIONS FOR SAFETY, TWO OR MORE PEOPLE MUST ASSIST IN THE PACKAGE REMOVAL AND PRODUCT INSTALLATION. -
Page 2: Main Unit
Marpo Kinetics, Inc. 258 LINDBERGH AVE, Livermore, CA 94551 • (925) 606-6919 • www.marpokinetics.com 1. Remove all wrapping material. CAUTION: Do not use blades to cut wrapping material since it may damage the unit. 2. Remove all contents from the box:... - Page 3 Marpo Kinetics, Inc. 258 LINDBERGH AVE, Livermore, CA 94551 • (925) 606-6919 • www.marpokinetics.com 3. One person should hold on to the MAIN UNIT while a second person should attach the MID CROSS BAR to it using the provided 1/4-20 X 3” screws. Use a cardboard block provided with the unit to prop up the unit while attaching the MID CROSS BAR.
- Page 4 Marpo Kinetics, Inc. 258 LINDBERGH AVE, Livermore, CA 94551 • (925) 606-6919 • www.marpokinetics.com 8. Connect HORSE SHOE as shown. Note orientation, the flat end of the horseshoe faces the MAIN UNIT. 9. If the product rocks side-to-side or front to back, adjust the nuts on the 3 threaded LEVELING FEET.
- Page 5 Marpo Kinetics, Inc. 258 LINDBERGH AVE, Livermore, CA 94551 • (925) 606-6919 • www.marpokinetics.com barrels of the BOOM. Note the CARRIAGE PULLEY orients to the front of the unit. Remove the pulley from the CARRIAGE and install the rope on it. Make sure rope is not twisted when installing it on the CARRIAGE.
- Page 6 Marpo Kinetics, Inc. 258 LINDBERGH AVE, Livermore, CA 94551 • (925) 606-6919 • www.marpokinetics.com 17. If your unit has rope with plastic end cap connection follow these instructions to connect the ends of the rope. Pin the chain link in the end cap with the provided 1/4-20 set screw.
- Page 7 Marpo Kinetics, Inc. 258 LINDBERGH AVE, Livermore, CA 94551 • (925) 606-6919 • www.marpokinetics.com 18. Once the machine has been leveled off with the ground, drill the anchor rods provided with the user manual at the specified locations in the picture below. Anchor rods must be drilled into the concrete with a minimum embedment length of 2"...
