Stoltzen PS41H User Manual

Hdmi 2.0 4x1 presentation switcher with audio extraction
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

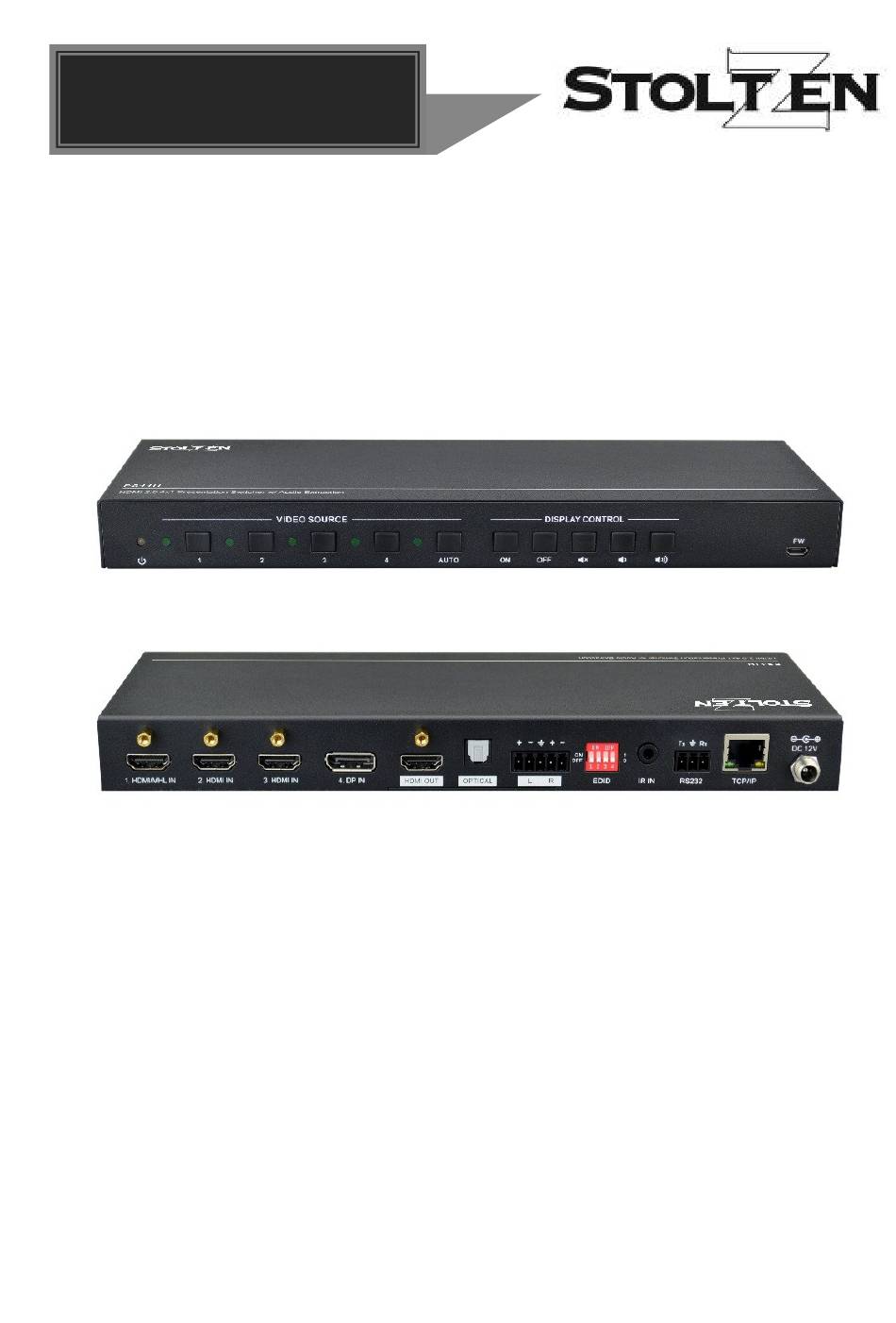

User Manual
Stoltzen PS41H
HDMI 2.0 4x1 Presentation Switcher with
Audio Extraction
All Rights Reserved
Version: PS41H_2019V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS41H and is the answer not in the manual?

Questions and answers

Related Manuals for Stoltzen PS41H

Summary of Contents for Stoltzen PS41H

  • Page 1 User Manual Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher with Audio Extraction All Rights Reserved Version: PS41H_2019V1.1...

  • Page 2: Fcc Statement

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.

  • Page 3: Safety Precautions

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...

  • Page 4: Table Of Contents

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher Table of Contents 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Package List ...................... 2 2. Specification ....................... 3 3. Panel Description ......................5 3.1 Front Panel ......................5 3.2 Rear Panel ......................6 4.
  • Page 5 Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 8.2.3 EDID Management ................23 8.2.4 Audio Control ..................24 8.2.5 Display Control ..................24 8.2.6 Third-party Device Control ..............25 9. Firmware Upgrade ....................31 10. Panel Drawing ......................32 11. Troubleshooting & Maintenance ................33...

  • Page 6: Product Introduction

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 1. Product Introduction Thanks for choosing the HDMI 2.0 4x1 Presentation Switcher. The switcher allows selection of four different sources (three HDMI inputs and one DisplayPort input), and will simultaneously switch the selected video to HDMI output. It supports video resolution up to 4Kx2K@60Hz 4:4:4 8bit, 1080P, and 3D.

  • Page 7: Package List

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 1.2 Package List 1x PS41H HDMI 2.0 4x1 Presentation Switcher  2x Mounting Ears with 4 Screws  4x Plastic Cushions  1x IR Receiver  1x IR Remote  1x 3-pin Terminal Block ...

  • Page 8: Specification

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 2. Specification Video Video Input (1) HDMI/MHL, (2) HDMI, (1) DP Video Input Connector (3) Type-A female HDMI, (1) DisplayPort HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit MHL Input Resolution Up to 1080P@60Hz...
  • Page 9 Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher Frequency Response Deviation <± 0.5dB 20Hz ~ 20KHz Output Load Capability 1KΩ and higher (supports 10x paralleled 10KΩ loads) Stereo Channel Separation >70dB@1KHz Control Part Control (1) FW, (1) EDID, (1) IR IN, (1) RS232, (1) TCP/IP...

  • Page 10: Panel Description

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 3. Panel Description 3.1 Front Panel ① Power LED: The LED illuminates red when the device is in standby, or illuminates green when the device is power on. ② VIDEO SOURCE: Press 1~4 button to select input source respectively, and its corresponding LED ...

  • Page 11: Rear Panel

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 3.2 Rear Panel ① VIDEO SOURCE: Three type-A female HDMI input ports to connect HDMI video source.  One DisplayPort input port to connect DisplayPort video source.  ② HDMI OUT: Type-A female HDMI output port to connect video display.

  • Page 12: System Connection

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation.  System should be installed in a clean environment with proper temperature and  humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ...

  • Page 13: Button Control

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 5. Button Control 5.1 Manual Switching When the switcher is in the manual switching mode, the Auto Mode LED goes out. If need to change the input source, please directly press the 1, 2, 3 or 4 button, and the corresponding LED illuminates green immediately.

  • Page 14: Edid Setting

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 5.4 EDID Setting The Extended Display Identification Data (EDID) is used for the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays with different capabilities are connected to the switcher, the 4-pin DIP switch on the rear panel can be used to set the EDID to a built-in fixed value.

  • Page 15: Ir Remote Control

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 6. IR Remote Control Connect the IR IN port to an IR receiver, the switcher can be controlled by the below IR remote. ① Enter or exit standby mode. ② Video input selection buttons (1~4) and AUTO mode button.

  • Page 16: Gui Control

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 7. GUI Control The switcher can be controlled via TCP/IP, and the default IP setting is: IP Address: 192.168.0.178 Subnet Mask: 255.255.255.0 Please type 192.168.0.178 in the internet browser, and it will enter the below log-in...

  • Page 17: Switching Tab

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 7.1 Switching Tab Click the AUTO button to enable automatic switching mode.  Click 1~4 button to select input source respectively. ...

  • Page 18: Display Control Tab

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 7.2 Display Control Tab ON: Display On.  OFF: Display Off.  : Mute/unmute display audio.  : Volume down display audio.  : Volume up display audio. ...

  • Page 19: Audio Tab

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 7.3 Audio Tab Turn on or turn off the digital audio output.  Turn on or turn off the analog audio output. ...

  • Page 20: Edid Tab

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 7.4 EDID Tab Note: Before select EDID in this tab, please ensure the 4-pin DIP switch on the rear panel is on the “1111” position. Built-in EDID: There are ten built-in EDID values can be selected by this tab.

  • Page 21: Rs232 Tab

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 7.5 RS232 Tab Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200.  Command Ending: NULL, CR, LF or CR+LF can be chosen.  Command: Type the command in this box to control the third-party device which ...

  • Page 22: Tag Tab

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 7.6 Tag Tab Modify the title bar label and button labels.  7.7 Network Tab Set Static IP or Dynamic Host Configuration Protocol (DHCP). ...

  • Page 23: Access Tab

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher Modify the static IP Address, Subnet Mask, and Gateway.  7.8 Access Tab Modify the login password.  Lock or unlock the front panel buttons. ...

  • Page 24: Gui Upgrade

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 7.9 GUI Upgrade Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface. After...

  • Page 25: Rs232 Control

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 8. RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending the RS232 commands. 8.1 RS232 Control Software Installation: Copy the control software file to the control PC.
  • Page 26 Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher The main view is shown as below: Parameter configuration area Monitoring area, show the commands and its feedback information. Command sending area Operation area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity...

  • Page 27: Rs232 Command

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 8.2 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none 8.2.1 Device Control Note: All commands need to be ended with “<CR><LF>”. Command Example...

  • Page 28: Source Switching

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher @GUI_IP:192.168.0.17 #GET_GUI_IP Report GUI IP. @192.168.0.178 #GET_SYSINFO Report system status. … … 8.2.2 Source Switching Note: All commands need to be ended with “<CR><LF>”. Command Example Command Description and Feedback #SET_AUTO_SWITCH Enable/disable auto switching mode. X=0, 1.

  • Page 29: Audio Control

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher Command Function & Operation User-define EDID. XXXX=1011, 1100, 1101 or 1110. Operation: Step 1: Prepare the EDID file (.bin). Step 2: Set the 4-pin DIP switch to “1111” status. Step 3: Send the command “#EDIDW 1101”, and the feedback is “@Please #EDIDW XXXX Send The EDID File!”.

  • Page 30: Third-Party Device Control

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 8.2.6 Third-party Device Control Note: All commands need to be ended with “<CR><LF>”. Command Example and Command Description Feedback #SEND_A_03:123456789 Send the ASCII command “XXXX” to control the third device (e.g. Projector). (PARAM)=01~07: The baud rate of ...
  • Page 31 Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher Command Example and Command Description Feedback #SEND_ON_A_03_01:1234567 Set the ASCII command “XXXX” to be sent automatically to the third-party device when the switcher is powered on or the DISPLAY ON button is pressed.
  • Page 32 Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher Command Example and Command Description Feedback #SEND_OF_A_05_01:12345678 Set the ASCII command “XXXX” to be sent automatically to the third-party device when the switcher is powered off or the DISPLAY OFF button is pressed.
  • Page 33 Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher Command Example and Command Description Feedback #SEND_VOLD_A_03_01:12345 Set the ASCII command “XXXX” to be sent 6789 automatically to the third-party device when the VOLUME DOWN button is pressed. (PARAM1)=01~07: The baud rate of ...
  • Page 34 Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher Command Example and Command Description Feedback #SEND_VOLU_A_03_01:12345 Set the ASCII command “XXXX” to be sent 6789 automatically to the third-party device when the VOLUME UP button is pressed. (PARAM1)=01~07: The baud rate of ...
  • Page 35 Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher Command Example and Command Description Feedback #SEND_VOLM_A_03_01:12345 Set the ASCII command “XXXX” to be sent 6789 automatically to the third-party device when the VOLUME MUTE button is pressed. (PARAM1)=01~07: The baud rate of ...

  • Page 36: Firmware Upgrade

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 9. Firmware Upgrade Please follow the steps as below to upgrade firmware by the FW port on the front panel: 1) Prepare the latest upgrade file (.bin) and rename it as “USERAPP.bin” on PC.

  • Page 37: Panel Drawing

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 10. Panel Drawing 262.00 mm 1 2 3 4 1. HDMI/MHL IN 2. HDMI IN 3. HDMI IN 4. DP IN HDMI OUT OPTICAL EDID IR IN RS232 TCP/IP Stoltzen PS41H 3xHDMI,1xDP, AutoSwitch...

  • Page 38: Troubleshooting & Maintenance

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 11. Troubleshooting & Maintenance Problems Potential Causes Solutions Bad quality of the Try another high quality connecting cable cable. Output image with snowflake Make sure the connection Fail or loose connection is good...

  • Page 39: Customer Service

    Stoltzen PS41H HDMI 2.0 4x1 Presentation Switcher 12. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years.
