ReelCraft UR7830 OLB70 Operating Instructions

Operating Instructions

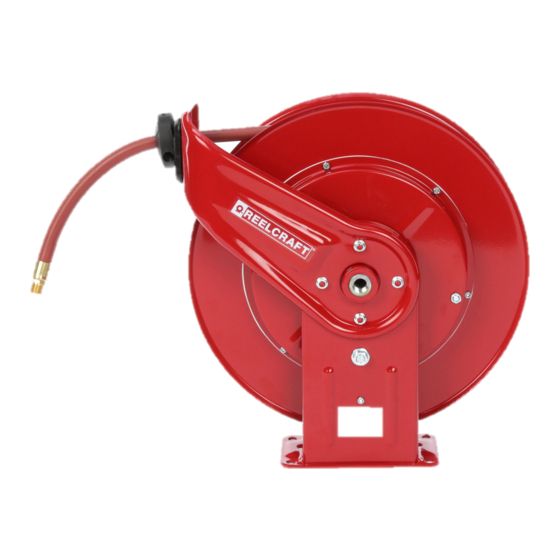

Series 7000 Spring Driven Hose Reels
For Diesel Exhaust Fluid (DEF)
UR7800 OLB UR7830 OLB70
UR7800 OLB70 UR7850 OLB
UR7830 OLB UR7850 OLB70

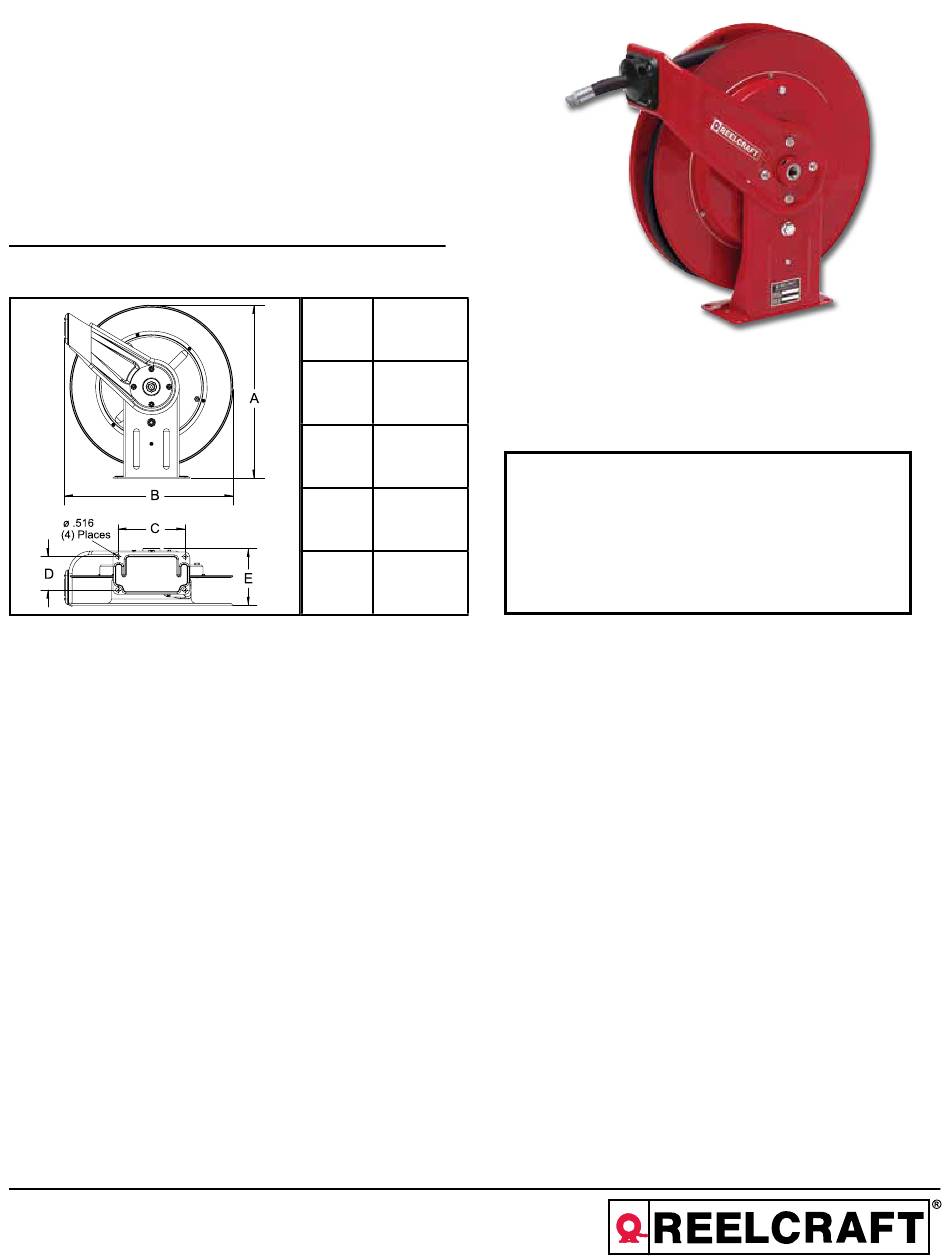

Dimensions
INSTALLATION:
A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible
misalignment and binding.
MOUNTING:
The hose reel is equipped with a universal mounting bracket so that it can be mounted on the floor, wall or
ceiling; whichever place is convenient. The hose guide arm can be moved to the position desired by removing
the screws fastening the guide bracket to the reel base. Shift the guide arm bracket so the hose comes off the
reel at the desired position and replace the screws. A 180° wall mount bracket or 340° pivot base are also
available, consult manufacturer
Hose reel spring and bearings are factory lubricated and require no further lubrication.
LUBRICATION:
REPLACING HOSE: 1. Wind spool flange clockwise-facing swivel-until spring is tight.
2. Back off three turns and latch.
3. Insert hose through roller guide.
4. Connect hose fitting to swivel joint and secure hose with clamps.
ADJUSTMENTS:
To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is
obtained.
REPAIRS:
Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may
void your warranty. Remove all spring tension before beginning disassembly process.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
UR7900 OLB
UR7915 OLB
UR7925 OLB
A 20 1/4"
B 19 3/4"
C 7 13/16"
D 3 7/8"
E 7"
SAFETY
1. Do not use reel at higher pressures or temperatures than
listed on the back of this bulletin.
2. Remove all spring tension before beginning
dissassembly process.
Form# 1215-910 Rev: 4/2013
