Qazqa 90500 Manual

Qazqa 90500 Manual

Vap duo wl black solar

Advertisement

Quick Links

6x
4x30mm
6x
6x27mm
3
φ6mm
30mm
39.5mm
7
8
φ6mm
30mm
88mm
40mm
11
Important: Please ensure that you charge the solar lights in maxi-
mum sunlight for a period of up to 3 days (for 2200mAh Ni-MH)
before switching on the lights, in order that the lights work on a full
charge
HOW TO DETERMINE WHERE TO MOUNT YOUR SOLAR
PIR SENSOR LIGHT
The most important thing to remember for the operation of your
SOLAR PIR SENSOR LIGHT is that it works from the power contained
in DIRECT SUNLIGHT. The more direct sunlight the solar cell receives
in a day, the longer the light will operate.

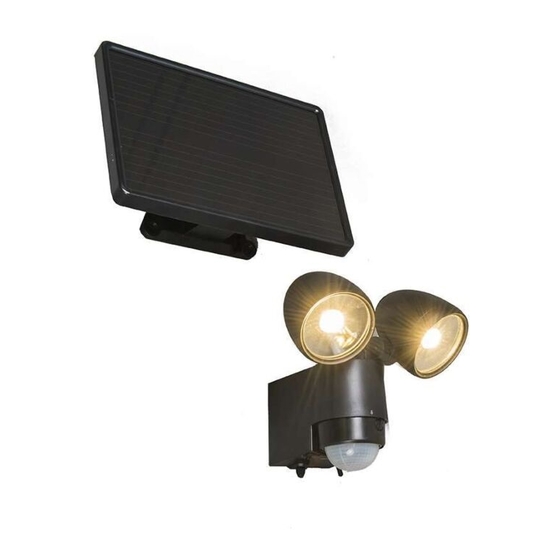

VAP Duo WL Black Solar
MODEL: 90500
1
90°
45°
45°
90°
90°
45°
45°
130°
130°
4
5
9
90°
90°
3 days/72h
2
6
10
130°
H:2.5m
1min
5sec
0
2
4
6
8mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Qazqa 90500

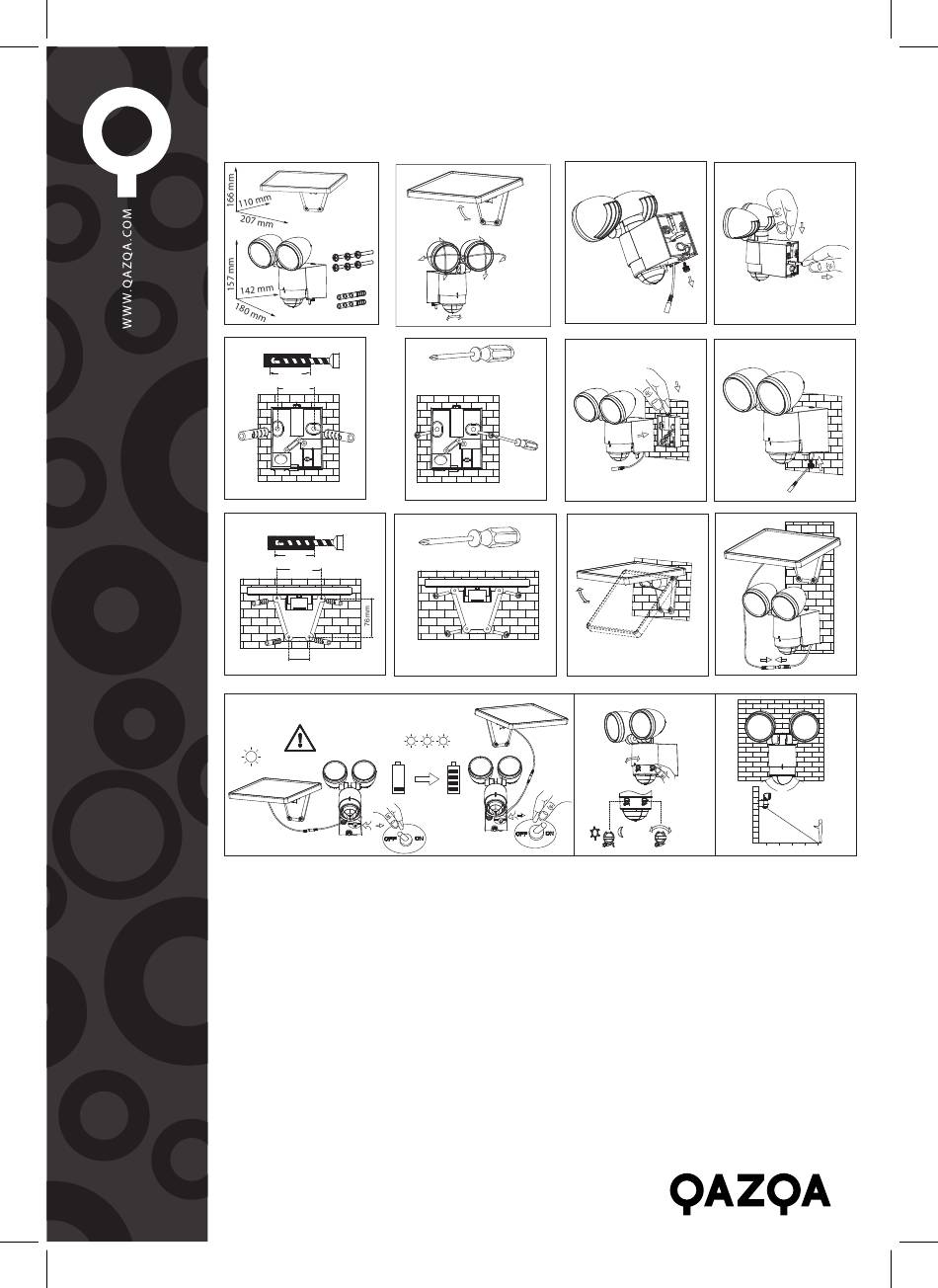

  • Page 1 VAP Duo WL Black Solar MODEL: 90500 90° 45° 45° 4x30mm 90° 90° 45° 45° 6x27mm 130° 130° φ6mm 30mm 39.5mm φ6mm 30mm 88mm 90° 90° 40mm 3 days/72h 130° H:2.5m 1min 5sec Important: Please ensure that you charge the solar lights in maxi-...
  • Page 2 Main Unit: The main unit contains the 2*6*0.5W LED, motion sensor and battery (Ni-MH Rechargeable battery, 3.6V 2200mAh). When deciding where to mount this unit, keep in mind that the motion sensor that actives the light has a “field of vision” of min. 8 meters (in front of the light) and about 130º...
  • Page 3 HOW TO ADJUST THE MOTION SENSOR After the initial 3-day charge, slide the switch on the main unit to AUTO position. On the motion sensor there are threes adjusting knobs: TIME / LUX 1) TIME --- Duration time: Depending on how long you wish the unit to stay lit after motion stops in the field of vision, the duration time will adjust from 10 seconds to 1 minute.
  • Page 4 6) When changing battery, be careful of any sharp edges that could cut you or the wires. Do not pull on wires. CLEANING It is important that the solar panel is kept free of dirt and debris. A dirty solar panel will not allow the battery to fully charge and this will shorten the life of battery and cause the light to malfunction.
