Qazqa 90495 Instruction Manual

220~240V
50Hz

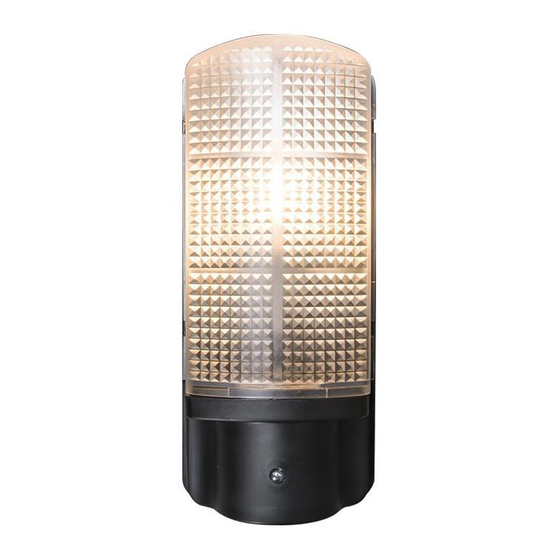

Mossa WL LUX BLack
90495

INTRODUCTION

The unit is an automatic on/off switch for lantern lamp. When the light fades
in the evening, the lamp will switch on after the set light intensity is reached.
The lamp will switch off in the morning.

WHERE TO FIT YOUR BULKHEAD LIGHT

Please pay your attentions to the following:
1. Not to shadow or dirty the transparent Lens of CDS sensor, let the sensor
to catch the change of the natural light
2. Not allow artificial light to active the CDS sensor as Lighting may blink ON
and OFF

INSTALLATION

Installation the bulkhead light, please referring to the mounting and wiring
figure:
1. Installation by a licensed electrician and according to IEC wiring Regulation.
2. Switch power off at the meter box and ensure that there is no power to
the lamp.
3．Ensure install the unit according to the indicator of symbol direction on
cover ( UP)
4. Remove the Lampshade by Screwdriver, see figure.
5. Unscrew the Screw (A) and remove the Transparent Plate.
6. Mark the mounting hole position onto the wall. Drill and plug the wall at
the marked positions. Screw the lamp body to wall with suitable Mounting
Screws (supplied)
7. Connecting the main power wires to the Terminal Block (see the relative
symbols—right figure), the Cable must pass through the Wiring Rubber
Gasket.
INSTRUCTION MANUAL INSTRUCTION MANUAL
IP44
E27 Max.60W
