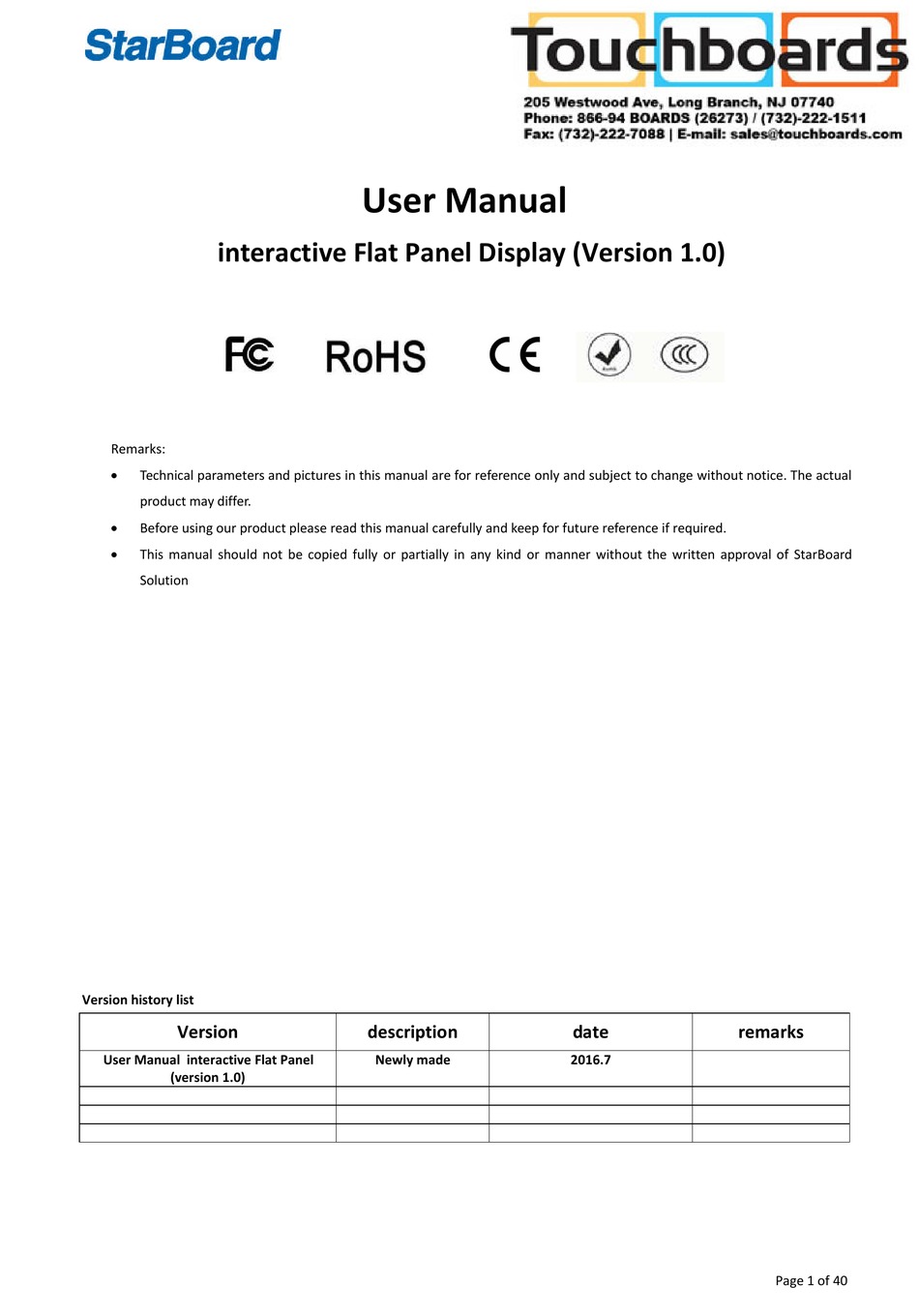

interactive Flat Panel Display (Version 1.0)
Remarks:
Technical parameters and pictures in this manual are for reference only and subject to change without notice. The actual
product may differ.
Before using our product please read this manual carefully and keep for future reference if required.
This manual should not be copied fully or partially in any kind or manner without the written approval of StarBoard
Solution
Version history list
Version
User Manual interactive Flat Panel
(version 1.0)
User Manual
description
Newly made
date
remarks
2016.7
Page 1 of 40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iFPD Series and is the answer not in the manual?

Questions and answers

Related Manuals for StarBoard iFPD Series

Summary of Contents for StarBoard iFPD Series

  • Page 1  Before using our product please read this manual carefully and keep for future reference if required. This manual should not be copied fully or partially in any kind or manner without the written approval of StarBoard  Solution...

  • Page 2: Introduction

    Introduction Thank you for buying our new generation interactive multi-touch StarBoard iFPD product. This manual provides you with the necessary information to assist in the operations of this device. If you have further queries please do not hesitate to contact our support team.

  • Page 3: Safety Considerations

    Safety Considerations WARNING Do not place containers with liquid on or near this product. Use only dry cloth to clean. Do not block any ventilation holes. Install this product according to manufacturer’s User Manual. A distance of at least 16cm must be kept from this product and other objects and/or walls. Do not install this product near heat sources.

  • Page 4: Table Of Contents

    Contents Introduction..............................2 Safety Considerations..........................3 Product Introduction...........................6 Main functions.............................6 Technical Specification..........................7 Front Panel of StarBoard iFPD........................17 Rear View StarBoard iFPD......................... 18 Side/Real ports description........................19 RCU (Remote Control Unit)........................21 Menu Operation............................23 Source selection............................23 Picture ............................... 23 Picture Mode............................. 24 Color Temperature............................
  • Page 5 Document..............................35 Connecting to the PC..........................37 Product Warranty Policy........................... 39 Page 5 of 40...

  • Page 6: Product Introduction

    Main functions Acute touch The StarBoard iFPD is a high resolution touch displaying screen. Users interact with the iFPD using finger, pen or other non- transparent object. HD display The StarBoard iFPD is a high resolution display terminal, a HD monitor.

  • Page 7: Technical Specification

    Technical Specification Size 55’’ 65’’ 70’’ 75’’ 80” 84’’ 98” Specification Up to 1920X1080 Up to 1920X1080 Up to 1920X1080 Up to 1920X1080 Up to 1920X1080 Up to 3840 X 2160 Up to3840X2160 Resolution Up to 3840 X2160 Up to 3840 X2160 Up to 3840 X2160 Optional 4K/2K Optional 4K/2K...
  • Page 8 Size 55’’ 65’’ 70’’ 80” 75’’ 84’’ 98” Specification 1324 1547 1656 1890 1764 1975 2227 Product Size 1109 1012 1155 1292 (mm / ±2mm) 1455 1677 1785 2020 1894 2105 2378 Packing Size Packing 1066 1095 1240 1145 1285 1455 (mm / ±5mm) Information...
  • Page 9 Technical Specification (continued) working Temperature 0°C～40°C Set up As per this Operations Manual Touch Points Single/Two/Four/Six points available Writing mode Finger, writing pen or any non-transparent object Positioning technology IR technology Positioning accuracy <3mm Positioning resolution 4096*4096/16384*16384/32768*32768 Writing response time <8ms Cursor speed >180 dot/sec...
  • Page 10 55” Technical Drawing Page 10 of 40...
  • Page 11 65” Technical Drawing Page 11 of 40...
  • Page 12 70 ” Technical Drawing Page 12 of 40...
  • Page 13 75 ” Technical Drawing Page 13 of 40...
  • Page 14 80” Technical Drawing Page 14 of 40...
  • Page 15 84” Technical Drawing Page 15 of 40...
  • Page 16 98” Technical Drawing Page 16 of 40...

  • Page 17: Front Panel Of Starboard Ifpd

    Front Panel of StarBoard iFPD Multimedia USB Extension USB from OPS Turn On/Off Source Input Menu Volume+ Volume - Menu item ∧ Menu item ∨ OPS Switch Remark: Front Panel Picture for reference only may differ from actual product Page 17 of 40...

  • Page 18: Rear View Starboard Ifpd

    Rear View StarBoard iFPD Remark: Reference only 1.USB 8.VGA-OUT 2. TOUCH PORT 9. AUDIO-OUT 3.AV IN 10.VGA-IN2 4.YPbPr-IN 11.AUDIO-IN2 5.RS232 12.VGA-IN1 6. HDMI1 13.AUDIO-IN1 7. HDMI2 Page 18 of 40...

  • Page 19: Side/Real Ports Description

    Video Input: Connect VGA cable with StarBoard iFPD and chose the source. Audio Input: When using VGA input, an audio cable is needed to connect PC and StarBoard iFPD. Touch Input: Using a USB cable to connect PC and StarBoard iFPD.
  • Page 20 Packing List Part name Quantity RCU(Remote Control Unit) Warranty Card USB cable (1.5 Meter,B-type) Writing Pen(2 pieces with different color) Accessory Box Back LOGO Mark of High Voltage Warning CD for Touch frame User Manual Wall Mount Brackets Wall Mount Screws Power cable(1.8 meter, Depend on import country request standard) VGA cable (1.8 meter, black) Audio cable (1.5 meter, black)

  • Page 21: Rcu (Remote Control Unit)

    RCU (Remote Control Unit) Power on/ off Mute sound. Press again or press VOL+/- to resume. NUMBER BUTTONS CH +/- VOL+/- Press to increase / decrease volume. P.MODE Press to cycle through the available picture modes: Standard, Dynamic, Movie and User. A.MODE Press to cycle through the different Press to select favorite channel.
  • Page 22 List Brings out the LIST pattern. Will return to the Home page when exit from LIST, allowing browsing. USB Function. Fast back. Fast front. Play or pause. Previous. Next. Stop. T. SHIFT Press to time shift, and image freeze. REC.List Record files list.

  • Page 23: Menu Operation

    Menu Operation Source selection Note: 4KX2K only available for panel support 4KX2K. Picture 1. Press◄/► to enter the Picture menu 2. Press ▲/▼ to up and down 3. Press "OK "to modify the value of the options 4. Press "OK "to enter sub menu 5.

  • Page 24: Picture Mode

    Picture Mode Enter the sub menu of the Picture Mode ,with the options of Contrast ,Brightness Color ,Sharpness and Tint .When we set the mode of Picture Mode to user ,we can press ▲/▼ to change the options. Press ▲/▼ to up and down . Press ◄/►...

  • Page 25: Aspect Ratio

    Aspect Ratio Enter the sub menu of Aspect Ratio ,with the options of Auto ,4:3 ,16:9 ,Zoom 1,Zoom 2 and Just Scan .There may exist difference of the options under different signal ,press ▲/▼ to change the options. Press ▲/▼ to up and down . Press "OK "...

  • Page 26: Screen (Only Works Under The Pc Mode )

    Screen (Only works under the PC mode ) Enter the sub menu of Screen , with the options of Auto Adjust , Horizontal Pos, Vertical Pos, Size and Phase. Press ▲/▼ to change the options Press ▲/▼ to up and down . Press ◄/►...

  • Page 27: Mode Of The Sound

    Mode of the Sound Enter the sub menu of Sound ,with the options of Treble and Bass .Press ▲/▼ to change the options. Press ▲/▼ to up and down . Press ◄/► to modify the value of the options Press "menu "to get back last menu. Press "exit"...

  • Page 28: Time

    Enter the sub menu of EQ ,with the options of 120Hz, 500Hz, 1.5KHz, 5KHz,10KHz .Press ▲/▼ to change the options. Press ▲/▼ to up and down . Press ◄/► to modify the value of the options Press "menu "to get back last menu. Press "exit"...

  • Page 29: Clock

    Clock Enter the sub menu of Clock ,with the options of Date, Month, Year, Hour, and Minute. Press ▲/▼ to change the options. Press ▲/▼ to up and down . Press ◄/► to modify the value of the options Press "menu "to get back last menu. Press "exit"...

  • Page 30: On Time

    On Time Enter the sub menu of On Time, with the options of Hour , Minute, VGA1, Program and volume. The Mode of the Off Time have one time, everyday , Monday to Sunday, Monday to Saturday, Monday to Sunday and Sunday . Press ▲/▼ to change the options.

  • Page 31: Language Menu

    Option Enter the Option menu , with the options of OSD Language, Restore Factory Default, Blending, Osd Duraion and 120HZ . Press ▲/▼ to change the options. Press◄/► to enter the Option menu. Press ▲/▼ to up and down . Press "OK "to enter sub menu.

  • Page 32: Restore Factory Default

    Restore Factory Default Enter the sub menu of Restore Factory Default, press to confirm Restore, or press to exit. ◄ ►  Enter the Blending menu to select the menu background transparency degree , there are four options: High, Middle, Low, Off.

  • Page 33: Photo

    Photo Enter the photo option，press▲/▼/◄/►key Choose picture to play，Press the “OK” button to choose the play or cancel, press the play button to play. Relevant operation according to the remote shortcut keys Press “info” to enter the menu Press ▼ to exit this menu press◄/►key, selection content press OK key enter relevant content Press “exit”...

  • Page 34: Movies

    Page 2 Movies enter the movies option，press▲/▼/◄/►key Choose picture to play，Press the “OK” button to choose the play or cancel, press the play button to play. Relevant operation according to the remote shortcut keys press “info” to enter the menu Press ▼...
  • Page 35 Page 3 Document enter the movies option，press▲/▼/◄/►key Choose picture to play，Press the “OK” button to choose the play or cancel, press the play button to play. Relevant operation according to the remote shortcut keys Press “info” to enter the menu Press ▼...
  • Page 36 Codec Media File Ext Remark Video Audio Max Solution: 1920×1080 .mpg MPEG-1, MPEG-2 Max Data Rate: 40 Mbps DivX,Xvid, MPEG-4, .avi MPEG-4 SP/ASP MPEG-2 Max Solution: 1920×1080 WMAAAC Max Data Rate: 20 Mbps .mov/.mkv MPEG-4 SP/ASP Movie AC3+ .dat MPEG-1 MPEG-4 SP/ASP .mp4 MPEG-1, MPEG-2...

  • Page 37: Trouble Shooting

    Connect USB cable to the PC and to the the StarBoard iFPD unit.   Power up the StarBoard iFPD unit and use the remote control unit (RCU) to select input source (VGA Source)  Use cables supplied together with this StarBoard iFPD unit.
  • Page 38 Picture is not clear or distorted Check antenna orientation, position and connection.  Non responsive RCU Change batteries  Clean RCU emitting window  Unblock the receiving window at the StarBoard iFPD unit  Check batteries’ contact points.  Page 38 of 40...

  • Page 39: Product Warranty Policy

    Appendix Product Warranty Policy During the free warranty service period, if a malfunction occurs during normal use, the malfunction will be corrected without charge, according to the provisions of the warranty. Furthermore, if the customer registration card accompanying the warranty is not returned to our company, the customer information will not be registered; so free repairs might be unavailable. After receiving this product, please immediately fill out and return this customer registration card.
  • Page 40 Incidental damage caused by the failure of this product (e.g., loss of profit that should have resulted from the use of this product) is outside the scope of this warranty. The aforementioned provisions define this warranty, and they supersede those of all express or implied warranties that include legal defect liability.
