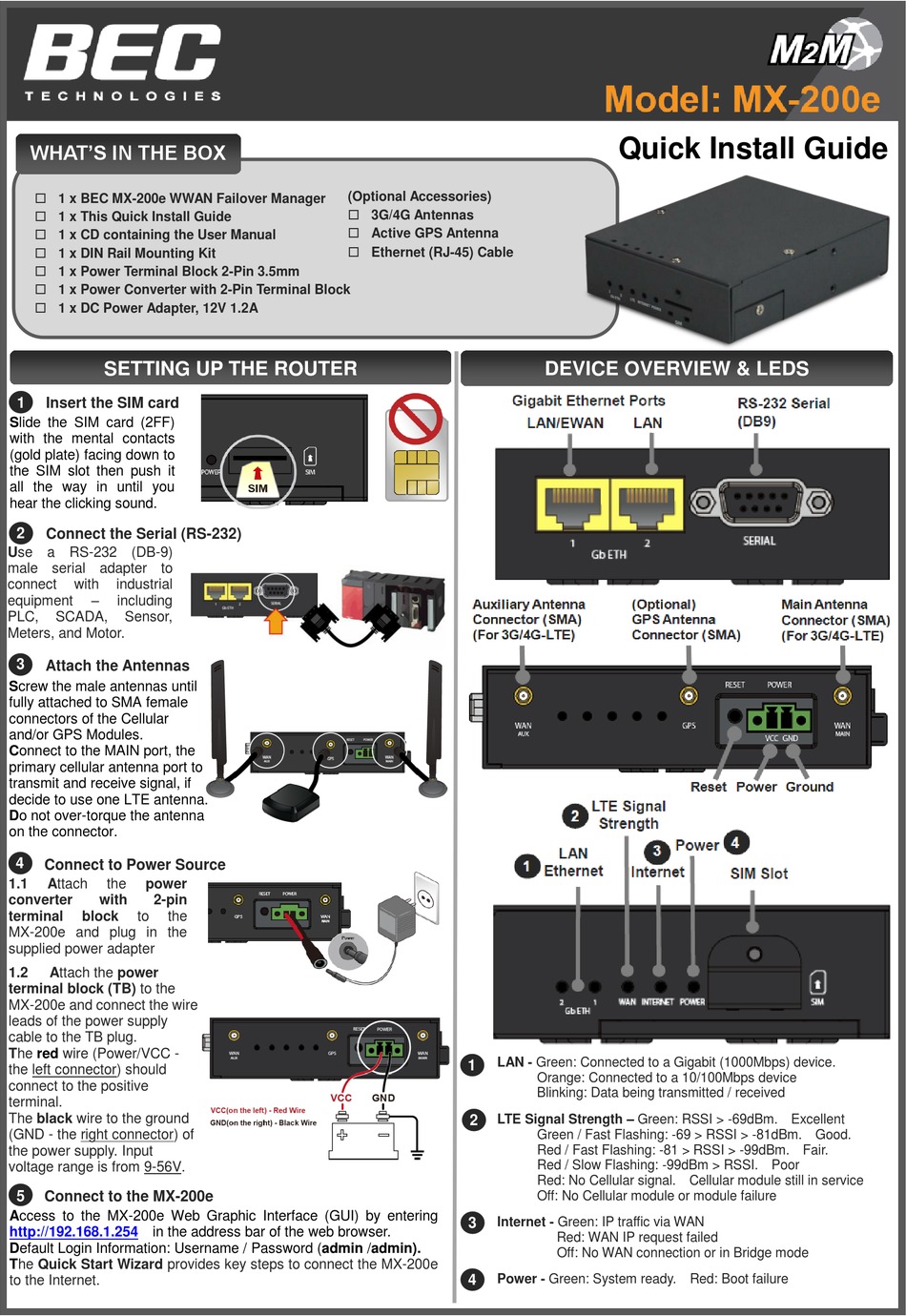

BEC M2M MX-200e Quick Install Manual

WHAT'S IN THE BOX
 1 x BEC MX-200e WWAN Failover Manager
 1 x This Quick Install Guide
 1 x CD containing the User Manual
 1 x DIN Rail Mounting Kit
 1 x Power Terminal Block 2-Pin 3.5mm
 1 x Power Converter with 2-Pin Terminal Block
 1 x DC Power Adapter, 12V 1.2A
SETTING UP THE ROUTER
1 Insert the SIM card
Slide the SIM card (2FF)
with the mental contacts
(gold plate) facing down to
the SIM slot then push it
all the way in until you
hear the clicking sound.
2 Connect the Serial (RS-232)
Use a RS-232 (DB-9)
male serial adapter to
connect with industrial
–
equipment including
PLC, SCADA, Sensor,
Meters, and Motor.
3
Attach the Antennas
Screw the male antennas until
fully attached to SMA female
connectors of the Cellular
and/or GPS Modules.
Connect to the MAIN port, the
primary cellular antenna port to
transmit and receive signal, if
decide to use one LTE antenna.
Do not over-torque the antenna
on the connector.
4
Connect to Power Source
1.1 Attach the power
converter with 2-pin
terminal block to the
MX-200e and plug in the
supplied power adapter
1.2 Attach the power
terminal block (TB) to the
MX-200e and connect the wire
leads of the power supply
cable to the TB plug.
The red wire (Power/VCC -
the left connector) should
connect to the positive
terminal.
The black wire to the ground
(GND - the right connector) of
the power supply. Input
voltage range is from 9-56V.
5 Connect to the MX-200e
Access to the MX-200e Web Graphic Interface (GUI) by entering
http://192.168.1.254 in the address bar of the web browser.
Default Login Information: Username / Password (admin /admin).
The Quick Start Wizard provides key steps to connect the MX-200e
to the Internet.
(Optional Accessories)
 3G/4G Antennas
 Active GPS Antenna
 Ethernet (RJ-45) Cable
LAN - Green: Connected to a Gigabit (1000Mbps) device.
1
LTE Signal Strength – Green: RSSI > -69dBm. Excellent
2
3 Internet - Green: IP traffic via WAN
4 Power - Green: System ready. Red: Boot failure
Quick Install Guide
DEVICE OVERVIEW & LEDS
Orange: Connected to a 10/100Mbps device
Blinking: Data being transmitted / received
Green / Fast Flashing: -69 > RSSI > -81dBm. Good.
Red / Fast Flashing: -81 > RSSI > -99dBm. Fair.
Red / Slow Flashing: -99dBm > RSSI. Poor
Red: No Cellular signal. Cellular module still in service
Off: No Cellular module or module failure
Red: WAN IP request failed
Off: No WAN connection or in Bridge mode
