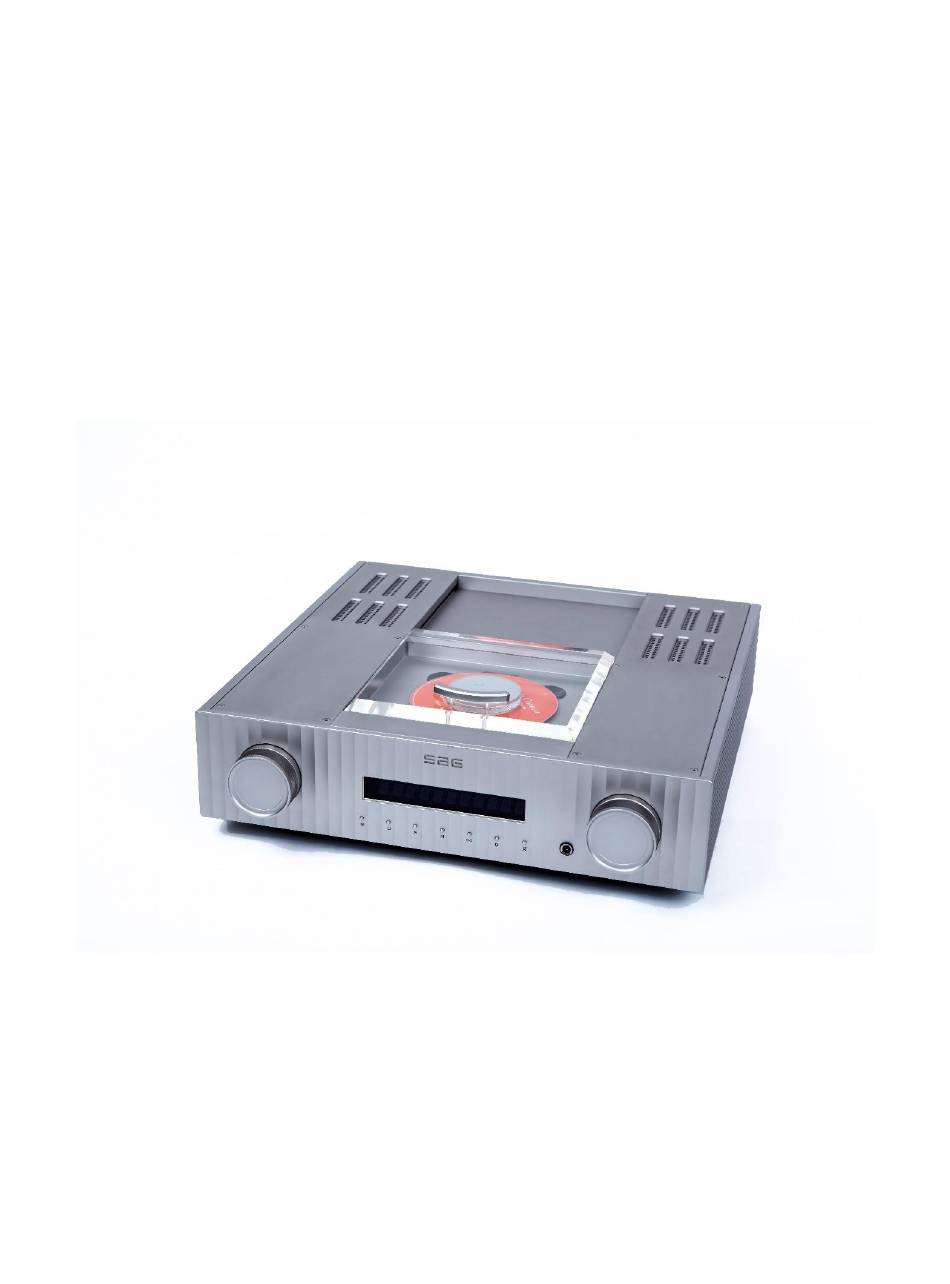

- Page 1 (ALL-IN-ONE MUSIC CENTER) Mar, 2019 Simon Audio...
- Page 2 Intoduction AIO(All-In-One) Music Center Thank you for choosing AIO, a real high-end music center. Not like the other all-in-one audio equipment in the market today, Simon Audio AIO is a true high-end audio device which delivers the true quality of high-end music reproduction.
- Page 3 Essential Design Concepts AIO is a joy to use. AIO concept is established by Simon Lee who has established Simon Audio after his twenty plus years of dedication for his previous company, April Music, Inc. Design concept is very simple. - Musically correct music center - Ease of use so that any members of the family can use this AIO - True to real level reproduction of the recordings.
- Page 4 Cautions 1) Each AIO is shipped with power supply set to the line voltage of each destination country (100VAC-240VAC). Please check this before plugging your AIO into the power outlet. 2) AIO is a precision instrument and is sensitive to external vibration. A bit of care taken in placing it in your listening environment will result in much more musical satisfaction.
-
Page 5: Display Area
Connections Front Panel View 1) POWER On/Off Switch : Power switch is located beneath the bottom of the front/leftside which can not be seen from above. Just slide your finger underneath from the left front panel to operate this switch. 2) INPUT SELECTOR KNOB Rotate the Knob to find your preferred input. -
Page 6: Headphone Input
6) STOP CD, USB Memory Stick 7) PREVIOUS CD, USB Memory Stick, FM Tuner Tuning 8) NEXT CD, USB Memory Stick, FM Tuner Tuning 9) REPEAT (Repeat One, ALL, Off) CD, USB Memory Stick 10) DISPLAY DENSITY To control the brightness of the display window. 11) MUTE To turn off the volume and tunrn on again on the front panel 12) HEADPHONE INPUT... -
Page 7: Rear Panel View
Rear Panel View 14) RIGHT SPEAKER BINDING POST Connect your right speaker cable to this post. Be sure to match the polarity (+ -) like red (+) to red and black to black. 15) USB MEMORY Plug your Memory Stick which stores your favorite music into this slot. When you plug in the memory, AIO will read in the table of the files and takes some time depending on the file size of the memory. -
Page 8: Coaxial Input
17) RJ45 NETWORK PORT Connect the LAN cable from the wifi router with this port. Be sure to make your wifi name used in your Phone or Pad under same name to control NET functions (DLNA server connection etc). 18) WIFI ANTENNA CONNECTOR 19) COAXIAL DIGITAL OUTPUT Used for the digital recording (special recording software may be needed). -
Page 9: Remote Control
Remote Control... - Page 10 30) DIM Control the brightness of the AIO main display. 4 levels of DIM can be controlled. 31) MAIN INPUT SELECTION BUTTON AREA 12 input functions can be selected either from the main front panel (left knob) or this remote selection area. 32) MAIN NAVIGATION BUTTONS 4 buttons are dedicated here.
-
Page 11: Operation
Operation Main Power ON/OFF Main Power Switch is located underneath of the main unit (left side, front). Turn the main power switch ON to make the unit into operation. When the power is switched on, the front display shows ‘SIMON AUDIO’ followed by the ‘INITIALIZE’... - Page 12 Close the cover by pulling the cover all the way to the front. CD information is automatically read-in when you close the door correctly. Choose track by pressing -> several times. Press Play/Pause ( ) Press Stop ( ) if you want to stop listening to CD. 2.
- Page 13 3. Bluetooth (B/T) B/T function enables you to play your music or any audio source from your B/T source like Smart Phone, Personal Computer or any device with Bluetooth function. Choose B/T by pressing B/T button from the remote or by rotating the front source knob.
- Page 14 5. USB (Type A) - On the rear side of AIO, there is an USB Type A port to support Plug-and-play of music files contained in the USB. Any type of files can be played back except DSD and files over 192k/24bit format.
- Page 15 6. NET DLNA compatible network playback is supported. Use any DLNA apps to connect and playback songs in the Servers or Streaming music suppliers. Please refer to separate next Chapter for NETWORK function. Network DLNA compatible network services are supported with AIO. No support for Apple Airplay at this time.
-
Page 16: Wiring Connection Diagram
Wiring (Connection) Diagram ⚫ Use proper CAT-5 LAN cables between your WAN modem and Wifi router as well as between the router and devices. Music Server and PC can be optional. You need a Wifi Router which is connected to outside WAN network (mostly provided by the Network Suppliers). - Page 17 NET Operation 1) Smart phone setting Download appropriate DLNA application from the Play Store (Android Phone) or APP Store (iPhone). We recommend apps as below mconnect BubbleUPnP Or any DLNA compatible Apps or Music service Apps. Configure your phone’s Wifi setting as the same network of the Wifi router. If you select different network, Apps will not work properly.
- Page 18 Mconnect (app) Open mconnect App Touch ‘Play to’ button on the right low corner to choose which Device you want to play music. Choose ‘SIMON AUDIO LAB’ or ‘AIO***’ which is the system name of your AIO. If you can not see UPnP Devices, make sure your phone and AIO are under same network.
- Page 19 If you are a subscriber of Tidal or Qobuz, you can choose and play the Tidal songs instantly. You can choose ‘Internet Music’, ‘Cloud’, and also local servers including the local phone. If you have a NAS connected, select the server to see the menu screen of the NAS.
