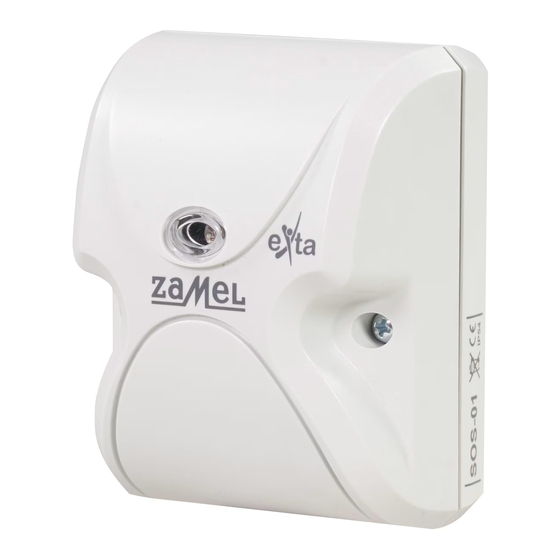

LIGHT SENSOR SOS-01

DESCRIPTION

SOS-01 light sensor is used to co-
operate with twilight switches WZM-
01, WZM-02, WZH-01, WZN-01 pro-
duced by ZAMEL. It measures the
luminous flux density outside and
passes/ directs the signal straight to
the twilight switch.
The light sensor is set in a herme-
tic casing in order to work in difficult
weather conditions (IP 54). It is mo-
unted by means of attached screws
on the surface.

FEATURES

● Hermetic casing (IP 54),
● cooperation with twilight switches
WZM-01, WZM-02,
WZN-01 produced by ZAMEL,
● surface mounting,
● terminal clamps 0,2 ÷ 2,50 mm
The device must be
installed in accordance
with standards valid in
a particular country.
The device should be
CAUTION
connected
to the details included
in this operating manual. Installation,
Connection and control should be car-
ried out by a qualified electrician staff,
who act in accordance with the servi-
ce manual and the device functions.
Disassembling of the device is equal
with a loss of guarantee and can cau-
se electric shock. Before installation
make sure the connection cables are
not under voltage. The cruciform head
screwdriver 3,5 mm should be used to
instal the device. Improper transport,
storage, and use of device influence
its wrong functioning. It is not advisa-
ble to instal the device in the following
cases: if any device part is missing or
the device is damaged or deformed. In
case of improper functioning of the de-
vice contact the producer.
The symbol means selective
collecting of electrical and
electronic equipment. It is forbidden
to put the used equipment together
with other waste.
Zakład Mechaniki i Elektroniki
J.W. Dzida, K. Łodzińska
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl

TECHNICAL DATA

WZH-01,
.
2

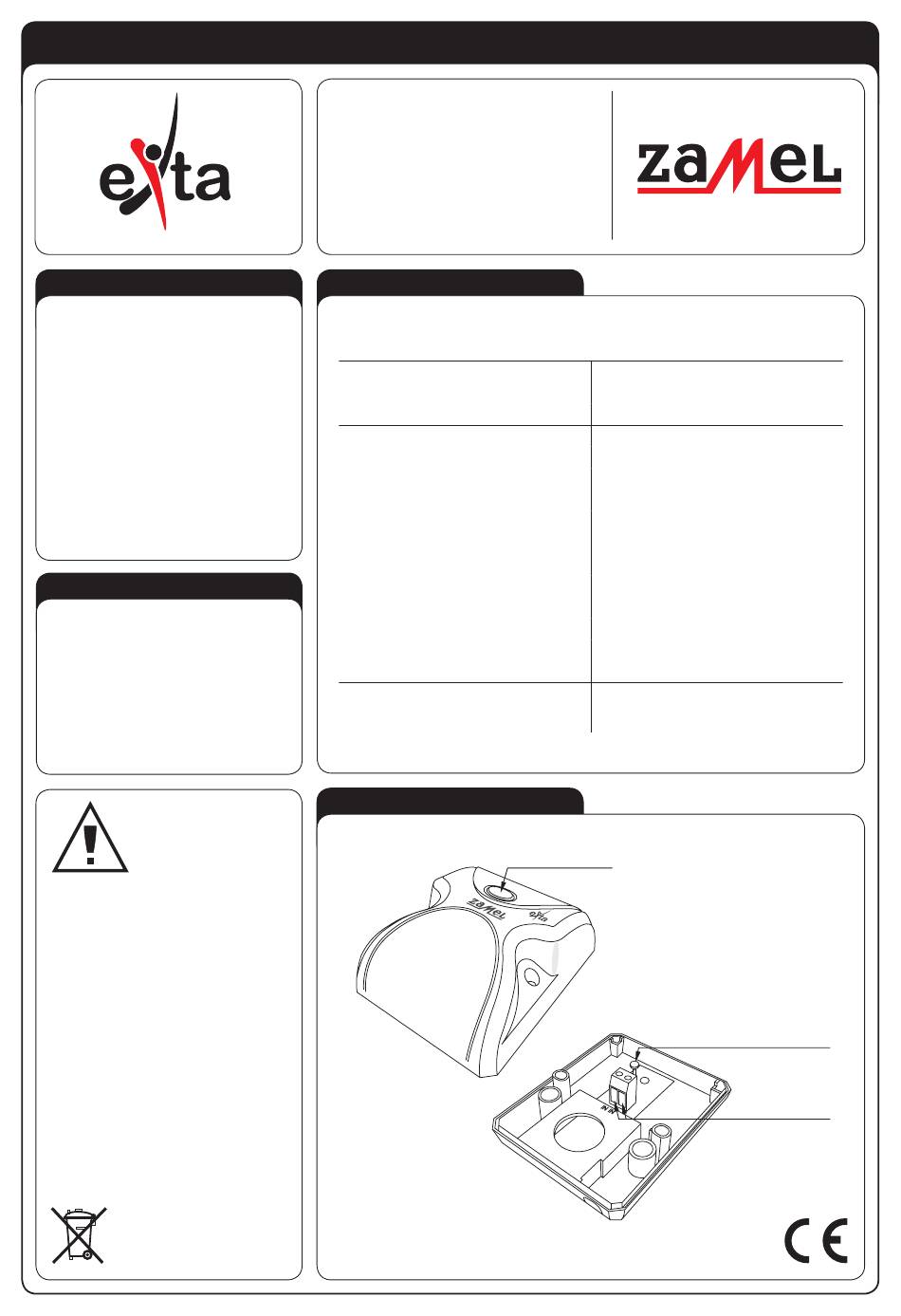

APPEARANCE

according
ZAMEL sp.j.
SOS-01
Terminal clamps: IN, IN
Maximum sensor cable length: 50 m (MTY 2 x 0,5 mm
Light sensor: inner
Number of terminal clamps: 2
Section of connecting cables: 0,2 ÷ 2,50 mm
Ambient temperature range: -20 ÷ +45
Operating position: freely
Casing mounting: 2x stretcher 6x(3,5x35)
Casing protection degree: IP54 (EN 60529)
Protection level: II
Overvoltage category: II
Pollution degree: 2
Surge voltage: 1 kV (EN 61000-4-5)
Dimensions: 84x68x43 mm
Weight: 0,05 kg
Reference standard: EN 60669-1
Light sensor
INSTRUCTION
)
2
2
C
o
EN 60669-2-1
EN 61000-4-2,3,4,5,6,11
Photoresistor
Output terminals
(IN, IN)
VER. 001_31.03.2010
