Summary of Contents for Omano CX-3

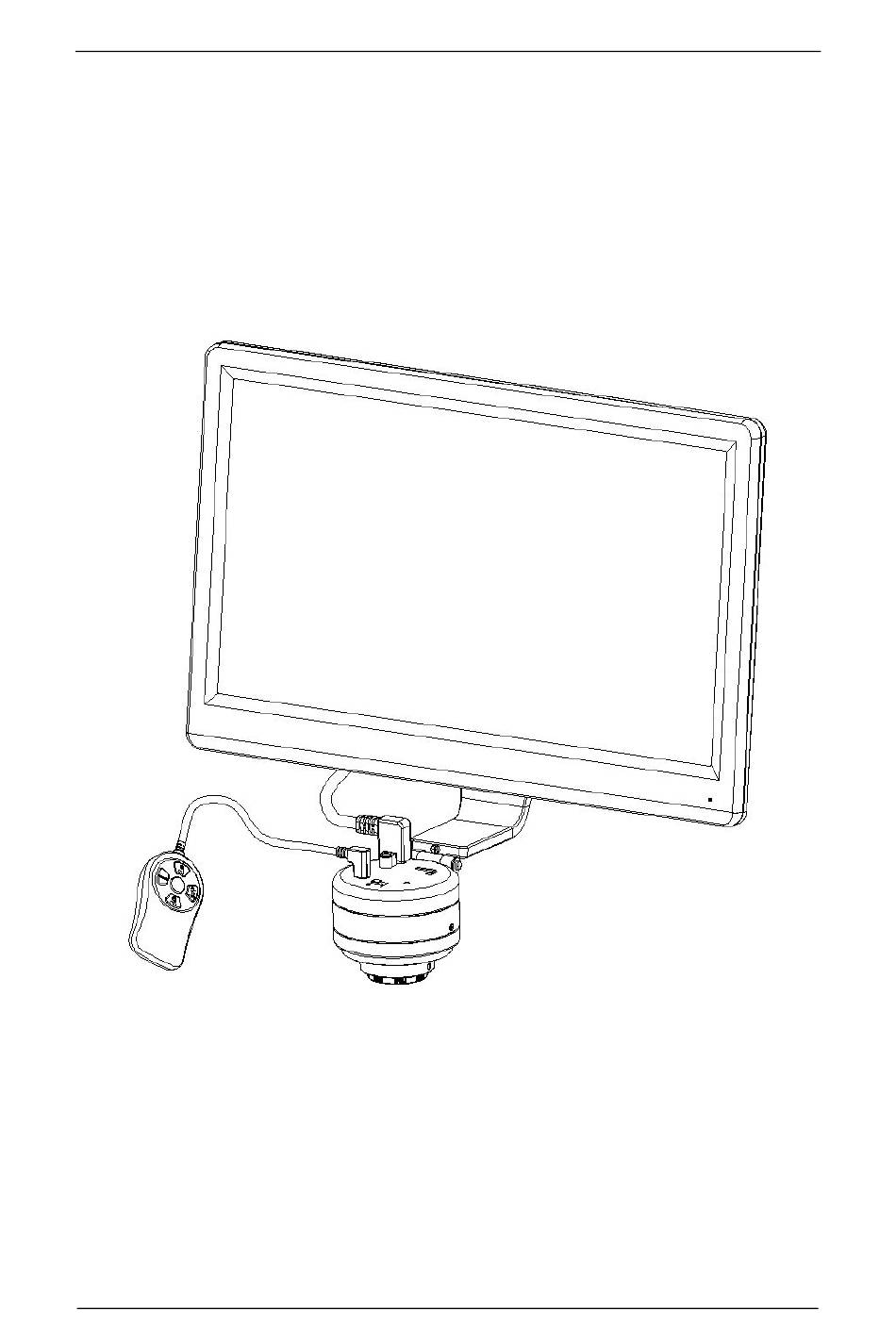

- Page 1 Omano CX-3 User Manual KS070800G4-Ver1.1...
-
Page 2: Table Of Contents
Omano CX-3 Camera User Manual Content - 1 - HAPTER OTES AND AFETY EQUIREMENTS 1.1 Cautions and Notes - 1 - - 2 - HAPTER ACKING - 3 - HAPTER UNCTION NTRODUCTION OF 3.1 Part & Functions - 3 - 3.2 Accessory Introduction... -
Page 3: Chapter 1 Notes And Safety Requirements
Omano CX-3 Camera User Manual Chapter 1 Notes and Safety Requirements 1.1 Cautions and Notes To avoid incurring damage to the lens, do not touch the lens or sensor （1） directly with your fingers. To avoid failure or electric shock hazard, do not disassemble or modify the （2）... -
Page 4: Chapter 2 Packing List
Omano CX-3 Camera User Manual Chapter 2 Packing List 1、Digital camera with monitor and cables 2、AC/DC adapter 3、Wired controller 4、Quick installation guide KS070800G4-Ver1.1... -
Page 5: Part & Functions
Omano CX-3 Camera User Manual Chapter 3 Parts and Functions 3.1 Name and Function for Each Part of the Omano CX-3 ① M onitor ： 12.5" monitor，For image display and USB power supply interface. ： 5 buttons a chieve different functions : ②... - Page 6 Omano CX-3 Camera User Manual Right button ： Mode/sure/crosshair (hot key) function. This function is active in the “camera”, “play back” and “record” modes. Without entering the menu, “Mode switch” function will be activated and can be switched successively among three modes, namely photographing, playing back and recording.
-
Page 7: Accessory Introduction
Omano CX-3 Camera User Manual ⑮ P ort C thread ： C Port thread can be directly connected with C port microscope and telescope. Connected with eyepiece (accessories), the C port thread allows connection to microscopes with different ports. -
Page 8: Chapter 4 Installation Guide
Omano CX-3 Camera User Manual Chapter 4 Installation Guide 4.1 Installation and Assembly -+ 1 . Assembly: Take out the dust cover of digital camera。(Image 1) Mount the digital camera at the C interface of the lens。(Image 2) Lock the digital camera's screw with inner hexagon spanner。(Image 3) 螺... -
Page 9: Start-Up Settings
Omano CX-3 Camera User Manual Chapter 5 Operation Start-up Settings 5.1 1） A pplication field Press the "left button" of the wired controller to enter menu and select “Microscope”, and then press the "right button" of the wired controller to enter the sub-menu. -
Page 10: Photography
Omano CX-3 Camera User Manual If the correct microscope type and lighting source is not selected, color reduction deviation may occur. 5.2 Additional Functions a) Short press refers to press time 0.2s~1s. Long press refers to press time more than 2s. -
Page 11: Playback
Omano CX-3 Camera User Manual 3）Playback The top right corner icon “ ” displays when in Playback mode. View images or videos by pressing “ Top Button”or “Bottom button”. Pressing button “Left button” enters the file attributes interface, which includes three operation functions such as delete, protect and slide show. -
Page 12: White Balance Adjustment
Omano CX-3 Camera User Manual the “top button” or the “bottom button” to select the menu bar “exposure EV” and then press the “right button” to enter the exposure setup interface. The screen will show the icon . (Note: Flashing font = the cursor is located in current position. - Page 13 Omano CX-3 Camera User Manual button” to select the current status and the font color will turn red. Press the “left button” to exit the White balance setup interface. KS070800G4-Ver1.1...
-
Page 14: Crosshair Mark
Omano CX-3 Camera User Manual （1） The cursor points to A, the real-time automatic white balance function will be started by pressing the “right button” and the color of the letter A will turn red. （2） The cursor points to S, the single automatic white balance function will be started by pressing the “right button”...
