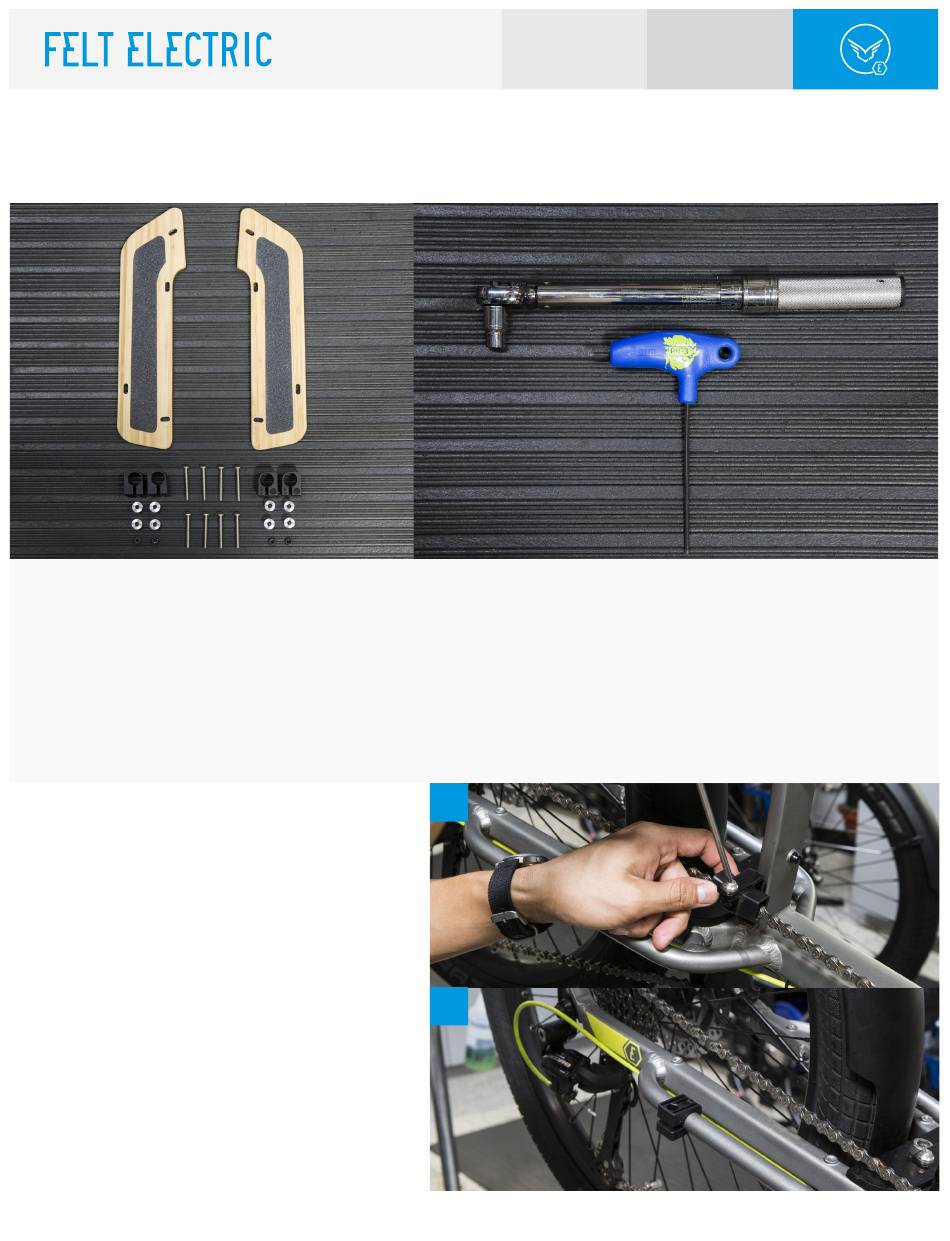

BRÜHAUL FOOTPLATE KIT INSTALLATION
Parts List:
2 x Bamboo Footplates
4 x Plastic Frame Clips
8 x Allen Head Machine Footplate Screws
8 x Aluminum Spacers
4 x Nuts
1.
Starting with the drive side, remove the
BruHaul's existing chain guide and set aside
(See Photo 1A). Install two (2) black Plastic
Frame Clips on the chainstay hoops of the
frame (See Photo 1B). Make sure that the
screw holes are positioned outboard of the
frame hoops so that they line up with the holes
in the bamboo footplate. Also ensure that the
thicker side of each Plastic Frame clip
is facing upward.
Required Tools:
3mm Allen Wrench
Torque Wrench
1A
1B
