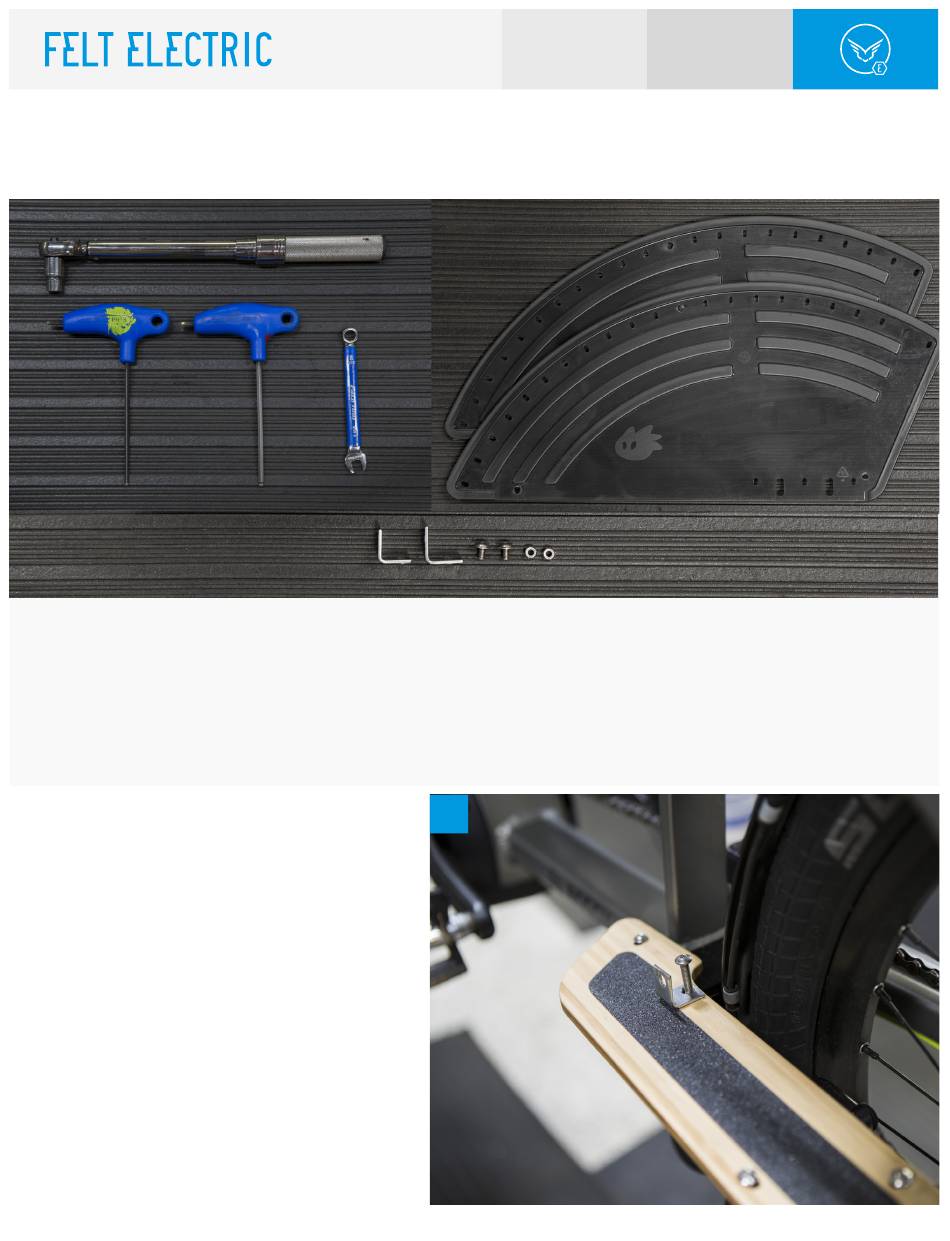

FELT BRÜHAUL WHEEL GUARD INSTALLATION
Parts List:
2 x Plastic Wheel Guards
2 x L-Brackets
2 x M5 Screws
2 x M5 Nuts
1.
Note: Wheel Guards can only be used in
conjunction with Bamboo Footplate. Begin
work on only one side of the bike at a time.
Remove the inside front mounting screw
(located on the Footplate along the chain
stay). Place screw through one L-bracket and
reinstall onto the footplate chain stay (see
Photo 1).
Required Tools:
4mm Allen wrench
3mm Allen wrench
8mm open-end wrench
Torque wrench
1
