Mounting Options; Rack Mount Installation; Wall Mount Installation; Shelf Installation - Altronix NetWay8G Installation Manual

Rack Mount Installation

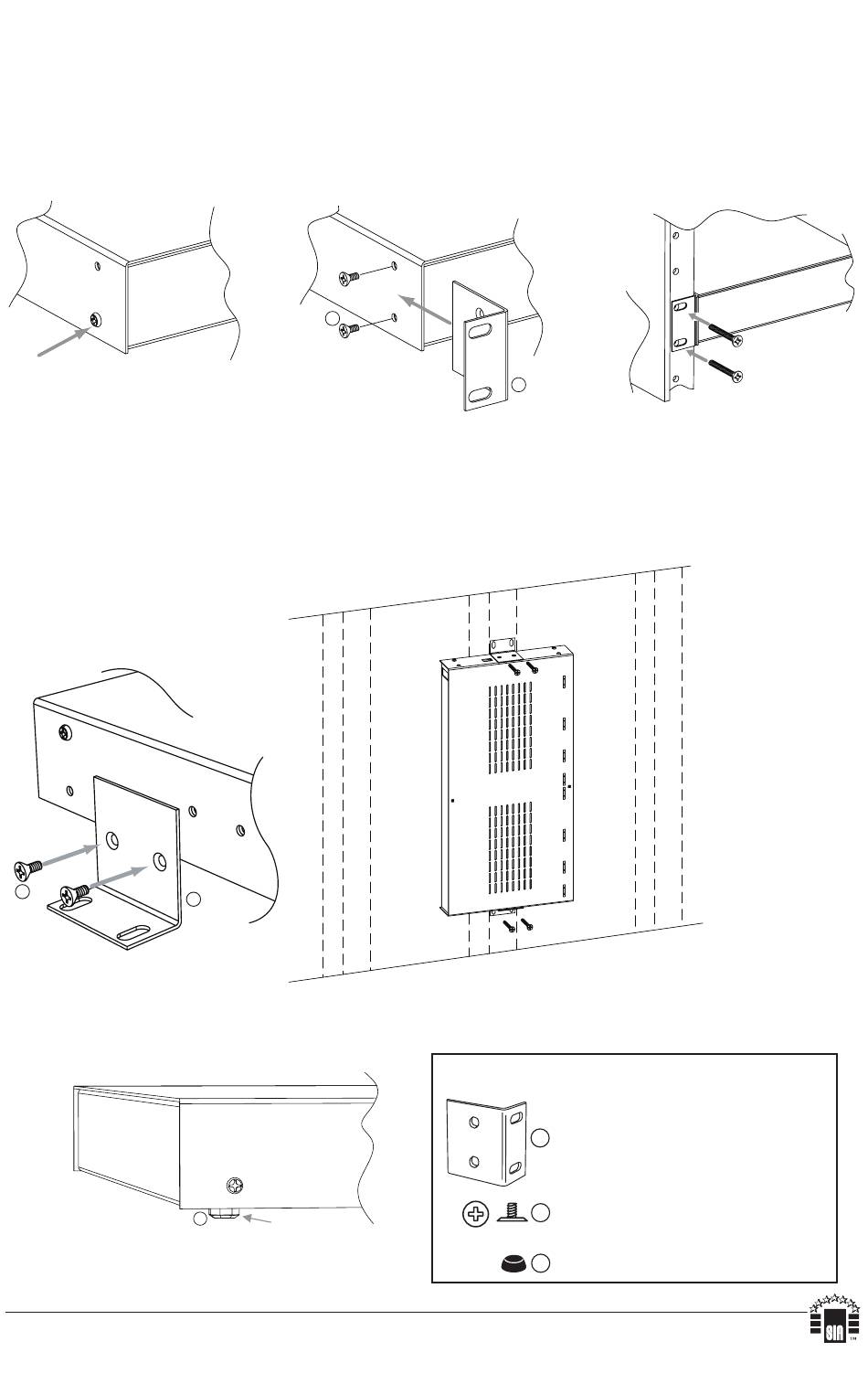

1 . Remove and discard factory installed screws from both sides of rack chassis (Fig. 5a) .
2 . Install mounting brackets (A) on the left and right side of rack chassis using the four (4) flat head screws (B)
(included) (Fig. 5b) .
3 . Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 5c).
Fig. 5
Fig. 5a
Top
Front
Left
Remove

Wall Mount Installation

1 . Install mounting brackets (A) on the left and right side of rack chassis using
four (4) flat head screws (B) (included) (Fig. 6a) .
2 . Place unit at desired location and secure with #6 size screws or larger (not included) (Fig. 6b).
Caution: It is necessary to make sure mounting screws are securely fastened
to a beam when installing the unit vertically .
Fig. 6
Fig. 6a
B

Shelf Installation

1- Position and affix rubber pads (C) (included) at each corner on the bottom of the unit (Fig. 7) .
2- Place unit in desired location .
Fig. 7
Altronix is not responsible for any typographical errors .
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www .altronix .com | e-mail: info@altronix .com | Lifetime Warranty | Made in U .S .A .
IINetWayG
- 8 -

Mounting Options:

B
Fig. 6b
A
Left Side
C
Rubber
Pad
Fig. 5b
Top
Front
Left
A
Dotted lines indicate studs behind sheetrock.
Mounting Hardware (Included):
Two (2) mounting brackets
A
Six (6) flat head screws
B
for mounting brackets .
Four (4) rubber pads .
