Altronix NetWay8G, NetWay8GP and NetWay16G Networked Managed Midspans provide PoE/PoE+/Hi PoE
(up to 60W) power per port, and pass data at 10/100/1000 Mbps at distances up to 100m . Features also include an
integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control,
and report power and diagnostics from anywhere .
Agency Listings:
• UL 60950-1
• CE
Input:
• NetWay8G:
• NetWay8GP/16G:
Power:
• Unit supplies PoE output voltage (55V) .
Total power:
NetWay8G (up to 30W per port):
NetWay8GP (up to 60W per port):
NetWay16G (up to 30W per port):
• IEEE 802 .3af and IEEE 802 .3at compliant
(PoE/PoE+/60W) .
• Short circuit protection .
Ethernet:
• Eight (8) or sixteen (16) ports for
cameras/edge devices over ethernet .
• Wire type: 4-pair CAT5e and higher .
• Speed: 10/100/1000 Mbps .
Functions:
• Auto detection and protection of legacy non-PoE
cameras/edge devices .
Wiring methods shall be in accordance with the National
Electrical Code (ANSI/NFPA70), local codes, and the au-
thorities having jurisdiction . NetWayG unit is not intended
to be connected to outside plant leads . These products are
for indoor use only and must be installed within the pro-
tected premises . If battery bracket is removed, then the unit
must be installed in a restricted access area (Fig. 1b, pg. 3) .
1 . Attach mounting brackets to NetWayG unit for rack
or wall mount installation (Fig. 5 or 6, pg. 8) .
Affix rubber pads to NetWayG for shelf installation
(Fig. 7, pg. 8) .
2 . Secure the unit in a rack or on a wall, or place unit on a shelf as desired .
Note: The following factors should be taken into consideration when installing these rack mount units:
a . The unit is to be installed in a space where the maximum ambient temperature does not exceed 104ºF (40ºC) .
b . Take care to ensure that there is sufficient air flow around the unit and that obstructions do not impede it .
c . When mounting units in a rack, take care to avoid uneven loading which can cause a hazardous condition .
3 . Plug the grounded AC line cord (included) into the IEC 320 connector of the NetWayG unit (Fig. 2g, pg. 4) .
Plug unit into a reliable earth grounded socket . When using multiple units, the sum of the individual name plate
ratings should not exceed the supply circuit rating .
Do not connect to a receptacle controlled by a switch.
4 . Connect structured cables from port marked [IN] on NetWayG to the corresponding inputs of an ethernet
switch or video server (Fig. 2b, pg. 4, Fig. 4, pg. 6) .
Note: All cabling and wire must be UL Listed and/or Recognized wire suitable for their application .
5 . Connect structured cables from port marked [OUT] on NetWayG to PoE compliant camera/edge devices
(Fig. 2a, pg. 4, Fig. 3, pg. 5) .
6 . When the use of stand-by batteries is required, they must be sealed lead acid or gel type . Connect four (4)
12VDC batteries in series to terminals marked [+ BAT –] (Fig. 2h, pg. 4), carefully observing polarity .
Note: When batteries are not used a loss of AC will result in a loss of output voltage .
NetWayG
Information Technology
Equipment .
European Conformity .
115VAC, 60Hz, 3 .25A or
230VAC, 50/60Hz, 2 .0A .
115VAC, 60Hz, 5 .5A or
230VAC, 50/60Hz, 3 .0A .

Installation Instructions:

Overview:

Features:

Battery Backup:
• Built-in battery charger (optional rack mount
battery enclosure - RE2) .
• Automatic switchover to stand-by battery when
AC fails .
LINQ Technology:
• SSL (Secure Socket Layer) security encryption .
• User level security .
• Built-in IP management allows for remote camera
reset and monitoring .
• Provides local and/or remote access to critical
information via LAN/WAN
• Email and Windows Dashboard Alert notifications
240W .
report real-time diagnostics .
480W .
• Event log tracks history .
480W .
Accessories:
NetWayXT:
• PoE repeater module extends data range 100m .
NetWayXTX:
• PoE/PoE+ repeater module extends data range 100m .
RE2:
• Rack Mount Battery Enclosure accommodates up
to four (4) 12VDC/7AH batteries

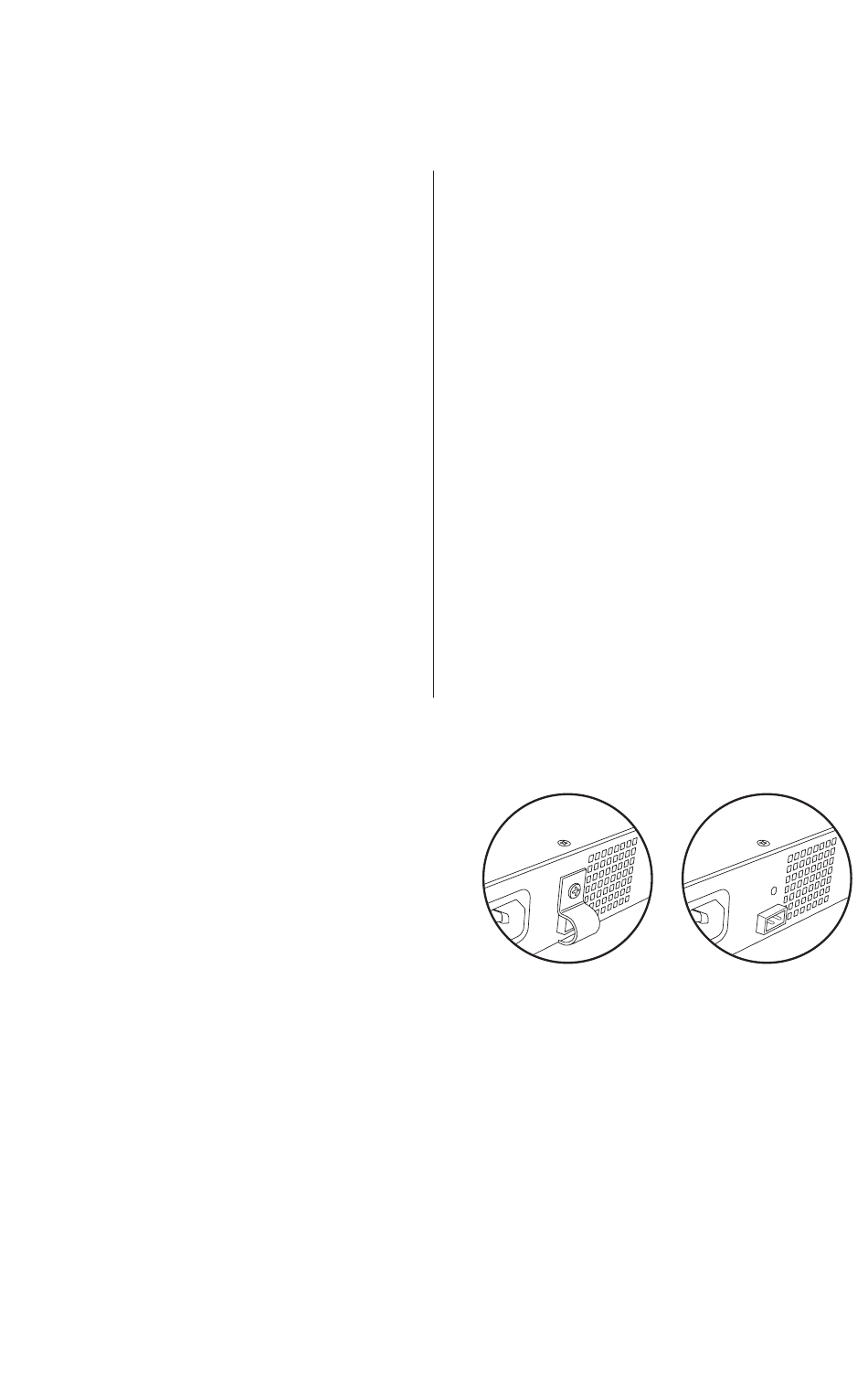

Fig. 1a Fig. 1b
