Safety Instructions & Warnings
IMPORTANT: Please refer to additional safety warnings on last page.
- eFlux wave pumps create a tremendous amount of water flow. Do not install pump where the
strong current can harm corals or animals.
- Do not install pump too close to the sand bed where it will not stir/suck the sand.
- Pumps can also produce powerful waves in both wave and surge mode. Ensure your aquarium is
designed for wave pumps and ensure pumps are mounted low enough not to push water out of the
aquarium.
- Magnet mounting assembly is very powerful. Be cautious not to cause injury to fingers.
- Keep out of reach of children.
- Never place magnets or pump near sensitive electronics, sharp objects or attractive surfaces.
- Never run wave pump dry or out of water.
- Always place spacer between magnets when not in use.
- Always unplug with dry hands for any maintenance or service.
- eFlux wave pumps are 24VDC. Ensure one 24VDC UL® transformer is used per wave pump.
- Ensure 24VDC UL® transformer is plugged into a GFCI approved outlet with a drip loop.
- Turn controller OFF and disconnect pump from power before performing any service
- Ensure eFlux wave pumps and any accessories all have a drip loop installed before plugging into
the wave pump manifold HUB as shown below.
Use caution when
installing magnets
Ensure pump location
will not spill water from
wave motion
Ensure use of drip
loop for all cables
1
2
3
4
Ensure correct voltage power
supply for each component
P3
P2
P1
Drip
Wave Pump
Loop
Manifold HUB
SAVE THESE INSTRUCTIONS

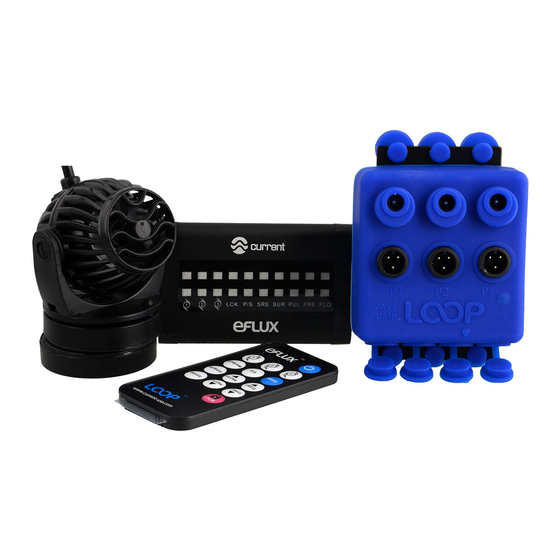

eFlux Accessory Wave Pump
For purchasing our eFlux Wave pump.
Please read all instructions before
getting in the LOOP!
24VDC
Power Supply
24VDC
Power Supply
Wave Pump
Drip
LCK P/S SRE SUR PUL FRE FLO
LED Display
Loop
Page 1
Thank You!
Use only with GFCI
Protected AC Outlet
AC Power
GFCI Outlet
Ensure use of drip
loop for all cables
