Pros'Kit GS-23K Instruction Manual

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
Thanks for buying PRO'SKIT GS-23K Gas Soldering Iron Kit –
Auto Ignition. Please read all instructions carefully before using
the product.

SPECIFICATIONS

Iron size
Gas container capacity
Operating time
Soldering temperature
Hot Blow temperature
Torch temperature

APPLICATIONS

 Repair switch board, meters
 TV Cable system
 Soldering circuit board
 Loosen rusted nut and bolts
 Sensitive IC board
Jewelry repair

 Silver solder
 Weld plastics
 Automotive / Aviation service repairs

WARNING

1.) Keep the touch out of reach of children.
2.) Read directions carefully before use.
3.) The burn tip and other accessory tips get hot in operation.
Do not touch the tip or accessories, or place them on
flammable objects
4.) Always have a fire extinguisher or bucket of water near
the torch work area.
5.) Always point away from eyes and body when igniting or
operating. Flam is invisibles sunlight; it can cause injury if
used with extreme.
6.) Under no circumstances should you attempt to repair a
damage torch
7.) Do not store under direct sunlight or anywhere that will
exceed 104℉ / 40℃
8.) Do not immerse in water.
9.) Make sure the adjustment knob is firmly closed and the
flame is completely extinguished after using.
10.) Use only in well ventilated areas.

OPERATION



IGNITION

1.) Make sure the exhaust vent is facing upward to
avoid the damage of tabletop.
2.) Press the safety lock button and
simultaneously using your thumb to pull down the
trigger. This action will ignite the soldering iron.
3.) Hold the ignition button and release the
GS-23K Gas Soldering Iron Kit – Auto Ignition.

Instruction Manual

Φ29 x 245mm
15ml
About 90mins
(one gas filling)
up to 500℃
up to 600℃
up to 1300℃

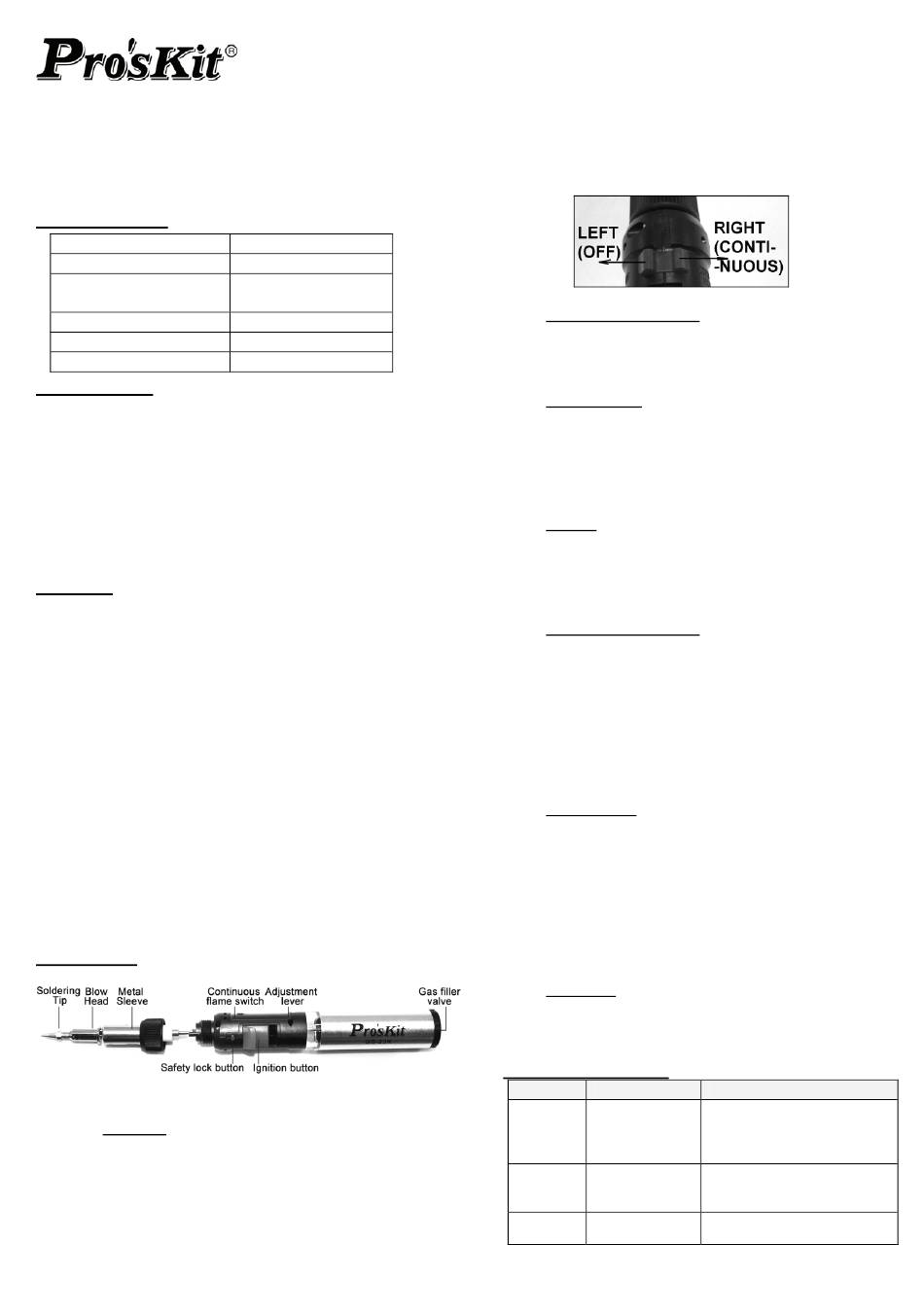

Fig1
safety lock button. Slide the continuous flame
switch to right (Fig2) for a constant flame.
 EXTINGUISHING (Fig2)
Slide the continuous flame Switch to left (OFF), and
this will cut off the gas supply and extinguish the
flame.


HOT BLOWER

Disassemble the soldering tip by rotating the tip
counterclockwise. The assembly will now be used as
hot blower without the soldering tip. Operation will be
the same as above for the soldering iron.
(fig1.)
 TORCH
Disassemble the soldering tip and hot blow head
with metal sleeve by rotating counterclockwise. Install
the metal sleeve back to the unit. Operation will be the
same as above for the soldering iron. (Fig2)


FLAME ADJUSTMENT

Slide the adjustment lever toward right side to
increase the flame strength or toward left to decrease
the flame strength.
When the flame is at "+" position, the longer flames
may cause the torch to flare or extinguish. In this
situation, please move the gas adjustment lever to "-"
side for decreasing the flame strength and set up a
most efficient flame(Blue Flame).


GAS REFUEL

1.) Use only high quality butane gas.
2.) Before refilling make sure that the continuous
flame Switch at left (OFF)side. (Fig2)
3.) Follow the directions on butane fuel can. Insert the
tip to filler valve, using a pumping action for best
results
4.) After filling allow the gas to stabilize a few minutes
before ignite.

STORAGE


Make sure that the torch is turned off and cool, before
storing or leaving unstable.

TROUBLE SHOOTING

Problem Probable cause
Does not 1. Empty fuel
ignite 2. Gas Pressure
too high or too
low.
Excessive Setting too high
gas flow
Low gas 1. Low fuel
pressure 2. Cold fuel
Fig2
Solution
1. Refuel
2. Slide the adjustment lever
toward right or left.
Adjust gas regulator gradually
Re-ignite the torch by gradually
increasing the gas.
1. Refuel
2. Hold in hands to warm up.
