Manitowoc Servend 4 in 1 Tower Installation And Cleaning Instructions

INSTALLATION & CLEANING INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Unbox the Tower (and Tea Enhancer if it's a Lipton unit) check
for freight damage. Any damage should be noted at the time
of delivery.
1. Attach the 3/4" drain that is supplied to the back of the
drain pan.
2. Plumb the unit. The tower has (4) 1/4" pre-plumbed syrup
lines and (1) 1/4" pre-plumbed water line. The lines are
supplied with 1/4" splicers for easy connection. Plumb
the tower according to the labels on the lines.
3. Mount the tower in the proper location.
4. Turn water on to the tower.
5. Plug the transformer butt connector into the tower. Plug
the tranformer wall plug into a standard duplex oulet.
6. Brix the two beverage valves.

Enhancer Instructions:

7. Place the Enhancer over the top of the Tower. It should
snap into place making the two pieces one.
8. Plug in the Enhancer into a standard duplex outlet.

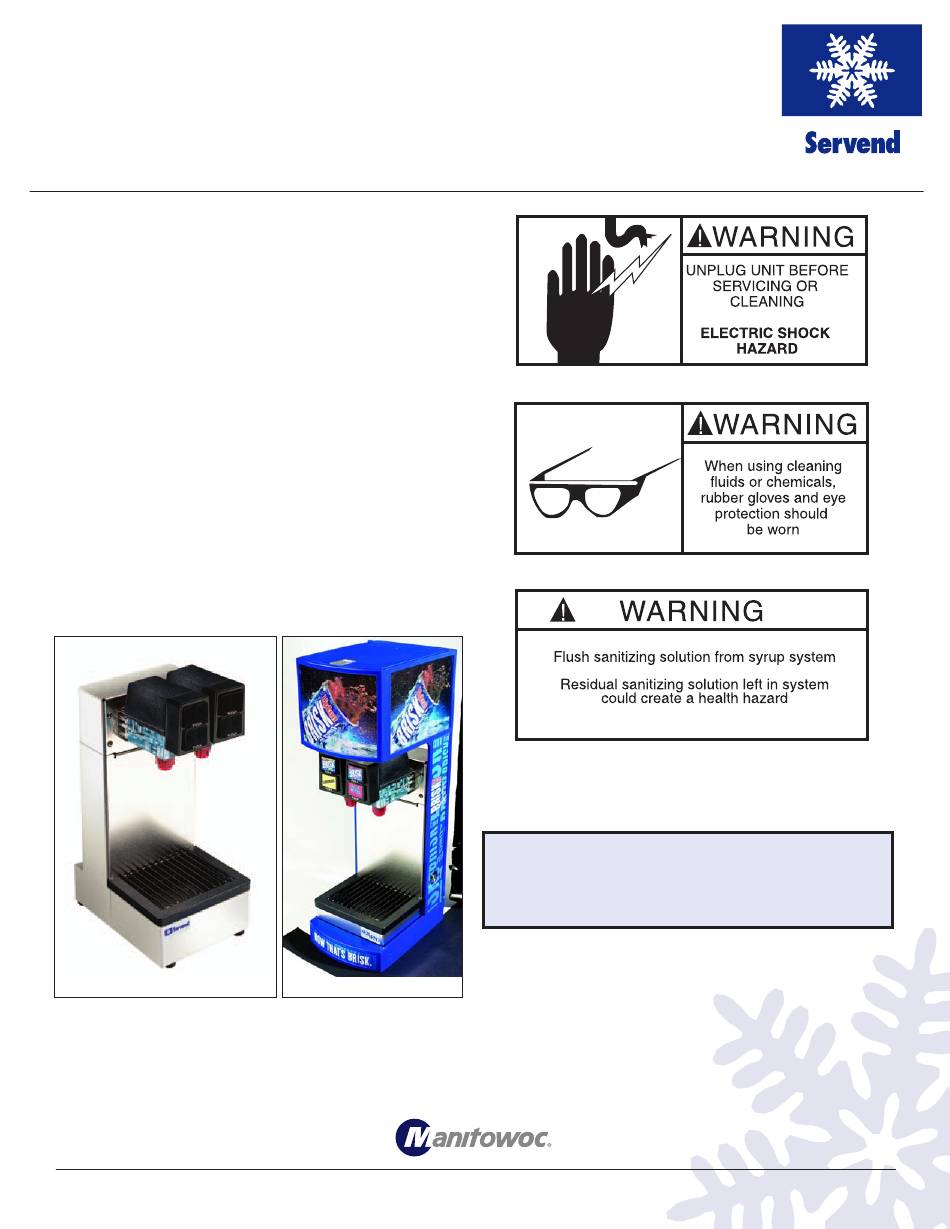

Plain Tower
Manitowoc Beverage Equipment
2100 Future Drive
Sellersburg, IN 47172-1868
PHONE: 812.246.7000
800.367.4233
FAX: 812.246.9922
www.manitowocbeverage.com
In accordance with our policy of continuous product development and
improvement, this information is subject to change at any time without notice.
If you have any questions concerning this bulletin, please contact the Manitowoc Beverage Equipment Technical Service Department at (800) 367-4233
4 IN 1 & LIPTON TEA TOWER
With Enhancer
Foodservice Group
NOTE: Installer is responsible to provide
backflow prevention that conforms with
any local and/or national health codes.
5029005
REV 11/07/03
