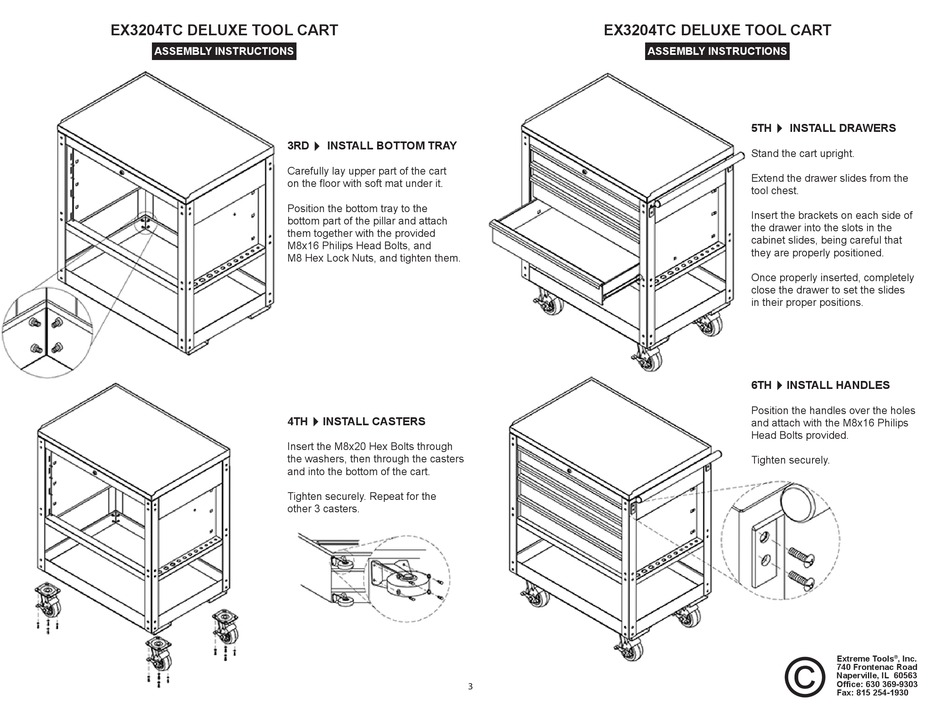

EX3204TC DELUXE TOOL CART
ASSEMBLY INSTRUCTIONS
3RD
Carefully lay upper part of the cart
on the floor with soft mat under it.
Position the bottom tray to the
bottom part of the pillar and attach
them together with the provided
M8x16 Philips Head Bolts, and
M8 Hex Lock Nuts, and tighten them.
4TH
Insert the M8x20 Hex Bolts through
the washers, then through the casters
and into the bottom of the cart.
Tighten securely. Repeat for the
other 3 casters.
INSTALL BOTTOM TRAY

INSTALL CASTERS

3
EX3204TC DELUXE TOOL CART
ASSEMBLY INSTRUCTIONS
5TH

Stand the cart upright.
Extend the drawer slides from the
tool chest.
Insert the brackets on each side of
the drawer into the slots in the
cabinet slides, being careful that
they are properly positioned.
Once properly inserted, completely
close the drawer to set the slides
in their proper positions.
6TH 
Position the handles over the holes
and attach with the M8x16 Philips
Head Bolts provided.
Tighten securely.
INSTALL DRAWERS
INSTALL HANDLES
