Professional Tools and Equipment

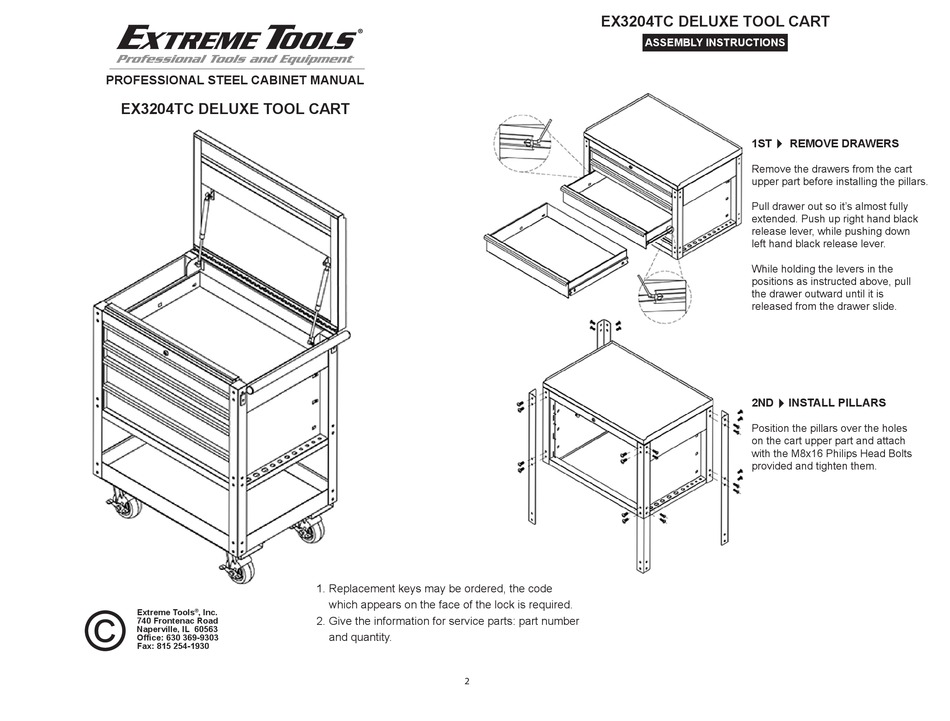

PROFESSIONAL STEEL CABINET MANUAL
EX3204TC DELUXE TOOL CART
Extreme Tools , Inc.
®
740 Frontenac Road
Naperville, IL 60563
Office: 630 369-9303
Fax: 815 254-1930
1. Replacement keys may be ordered, the code
which appears on the face of the lock is required.
2. Give the information for service parts: part number
and quantity.
2
EX3204TC DELUXE TOOL CART
ASSEMBLY INSTRUCTIONS
1ST

Remove the drawers from the cart
upper part before installing the pillars.
Pull drawer out so it's almost fully
extended. Push up right hand black
release lever, while pushing down
left hand black release lever.
While holding the levers in the
positions as instructed above, pull
the drawer outward until it is
released from the drawer slide.
2ND 
Position the pillars over the holes
on the cart upper part and attach
with the M8x16 Philips Head Bolts
provided and tighten them.
REMOVE DRAWERS
INSTALL PILLARS
