LumaPro 2ZB95A Operating Instructions And Parts Manual

Operating Instructions and Parts Manual

Warranty

LIMITED ONE-YEAR WARRANTY
Should this product fail to perform satisfactorily due to a defect or poor workmanship within ONE YEAR from
the date of purchase, return it to the place of purchase and it will be replaced, free of charge. Incidental or
consequential damages are excluded from this warranty.
For Repair Parts, call 1-800-323-0620
24 hours a day - 365 days a year

Repair Parts List

Description

18" Replacement Diffuser (2ZB95A)
24" Replacement Diffuser (2ZB98A)
36" Replacement Diffuser (2ZE10A)
48" Replacement Diffuser (2ZE12A)
2ZB95A, 2ZB98A,
2ZE10A, 2ZE12A
FLUORESCENT UNDERCABINET
FIXTURES
Part
Number
LT2ZB9501G
LT2ZB9801G
LT2ZE1001G
LT2ZE1201G
4
Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using
product. Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/or damage to product or
property. Please retain instructions for future reference.
Description

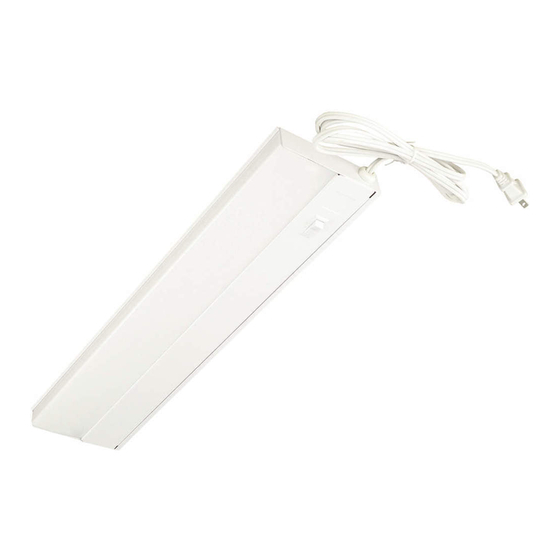

Under Cabinet Fixture with electronic ballast. Designed for
plug-in 120 VAC 60Hz circuit applications. The low profile
allows the fixture to be hidden from view in most installations.

Unpacking

After unpacking unit, inspect carefully for any damage that
may have occurred during transit. Check for loose, missing,
or damaged parts. Shipping claims must be filed with carrier.
Qty.

Specifications and Dimensions

Input
1
Model
Volts
1
2ZB95A 120V
1
2ZB98A 120V
1
2ZE10A 120V
2ZE12A 120V
Manufactured for Grainger International, Inc.
Printed in China 08/12
Form #1380
FLUORESCENT UNDERCABINET
FIXTURES
Lamp Fixture Lamp
Qty. Wattage Type
1 15W F15T8
1 17W F17T8
1 25W F25T8
1 32W F32T8
2ZB95A, 2ZB98A,
2ZE10A, 2ZE12A
Housing Dimensions (in)
L W H
18-1/8" 5-1/4" 1-7/8"
24-1/8" 5-1/4" 1-7/8"
36-1/8" 5-1/4" 1-7/8"
48-1/8" 5-1/4" 1-7/8"
