Omega Research & Development Excalibur Quick Start Operation Manual

Visit www.CarAlarm.com today
To Download your complete operation guide and learn more about system upgrades & other features!
PROGRAMMING REMOTES TO THE SYSTEM (UP TO 4)
BEFORE YOU BEGIN: Have all remotes for the system at hand.
1) Turn the ignition key "ON" (do not start).
2) Press the valet button 5 times within 5 seconds of step 1.
- The siren/horn may briefly sound
3) Press & release the "lock" button on each transmitter one after the other.
- 1-button models, press the "start" button.
- The siren/horn may chirp once for each transmitter.
- NOTE: When the fi rst remote is learned all previous remotes are erased.
4) Turn the ignition key "OFF".
SCAN TO WATCH
- NOTE: The system will exit at any time HOW-TO VIDEO
after 10 seconds of no activity.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna., Increase the separation
between the equipment and receiver., Connect the equipment into an outlet on a circuit different from that to which the receiver is connected., Consult the dealer or an experienced radio/TV technician for help.,
Warning! Changes or modifi cations made to this equipment not expressly approved by the part responsible for compliance could void the use's authority to operate the equipment
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifi cations to this equipment. Such modifi cations could void the user's authority to operate the equipment.
4

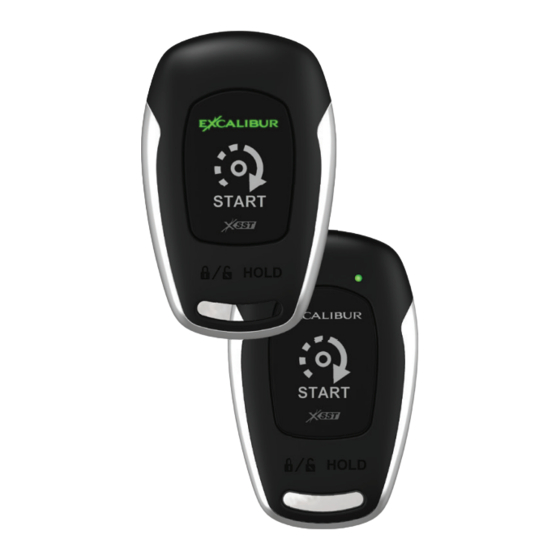

1-Button 2-Way LED Remote Start Systems
QUICK START OPERATION GUIDE
Problems? Questions?
Contact Customer Service:
800-554-4053 (toll free) |
+1-770-942-9876 (outside USA)
/omegard /c/omegard
Remote Start/Security System Model:
(Installer, write system model above)
Copyright 2019 Omega Research & Development Technologies, Inc. QOM_1BUTLED2WAY_20190829
REPLACING YOUR REMOTE BATTERY
STEPS
1) Find the part # on the back of the remote to identify the battery type.
2) Remove the screw from the back of the remote.
3) Gently pry the case halves apart to access & replace the batteries.
SECURITY, KEYLESS ENTRY, & CONVENIENCE FUNCTIONS
Lock & Arm
Unlock & Disarm
Scan to register
& download the
full operation
guide at
Engine Start/Stop
CarAlarm.com!
Run Time Extender
1-Security related functions only available on some models. Consult your installer for more info.
2-These fu-nctions are only available on some remote start models. Consult your installer for more info.
Register today
To activate/view your warranty
1-Button 2-Way LED
QUICK START OPERATION GUIDE
FUNCTION BUTTON(S) LED CONFIRMATION
Security enabled systems will flash the status LED.
1 LED Flash + 1 Beep
For 1 Sec.
Repeat to Unlock/Disarm
Repeat to Lock/Arm
1 LED Flash + 2 Beeps
For 1 Sec.
LED Flash + Melody
Engine Runtime Flashes:
Activation is programmable (contact installer).
4x = 76-100% remaining
x 2 Key Take Over: Turn ignition key 'ON' (not start), press
3x = 51-75% remaining
brake pedal.
2x = 26-50% remaining
1x = 1-25% remaining
LED runtime flashes will
2
The system will restart the internal run timer.
start over
at www.CarAlarm.com
& Download a complete operation guide.
Remote Start Systems
REMOTE PART# BATTERY (QTY)
1110 CR2025 (2)
1111 CR2032 (1)
NOTE
1
