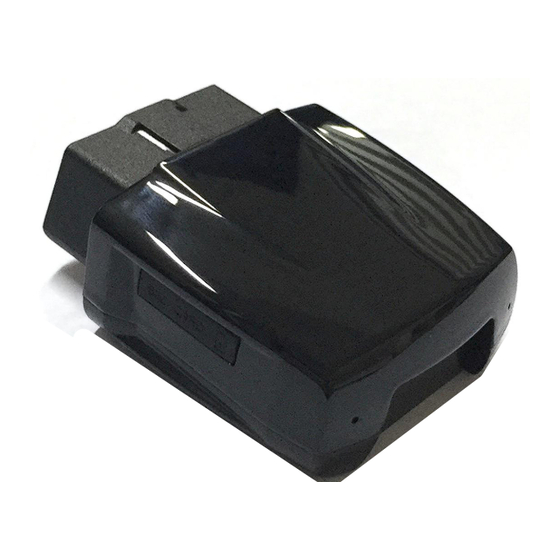

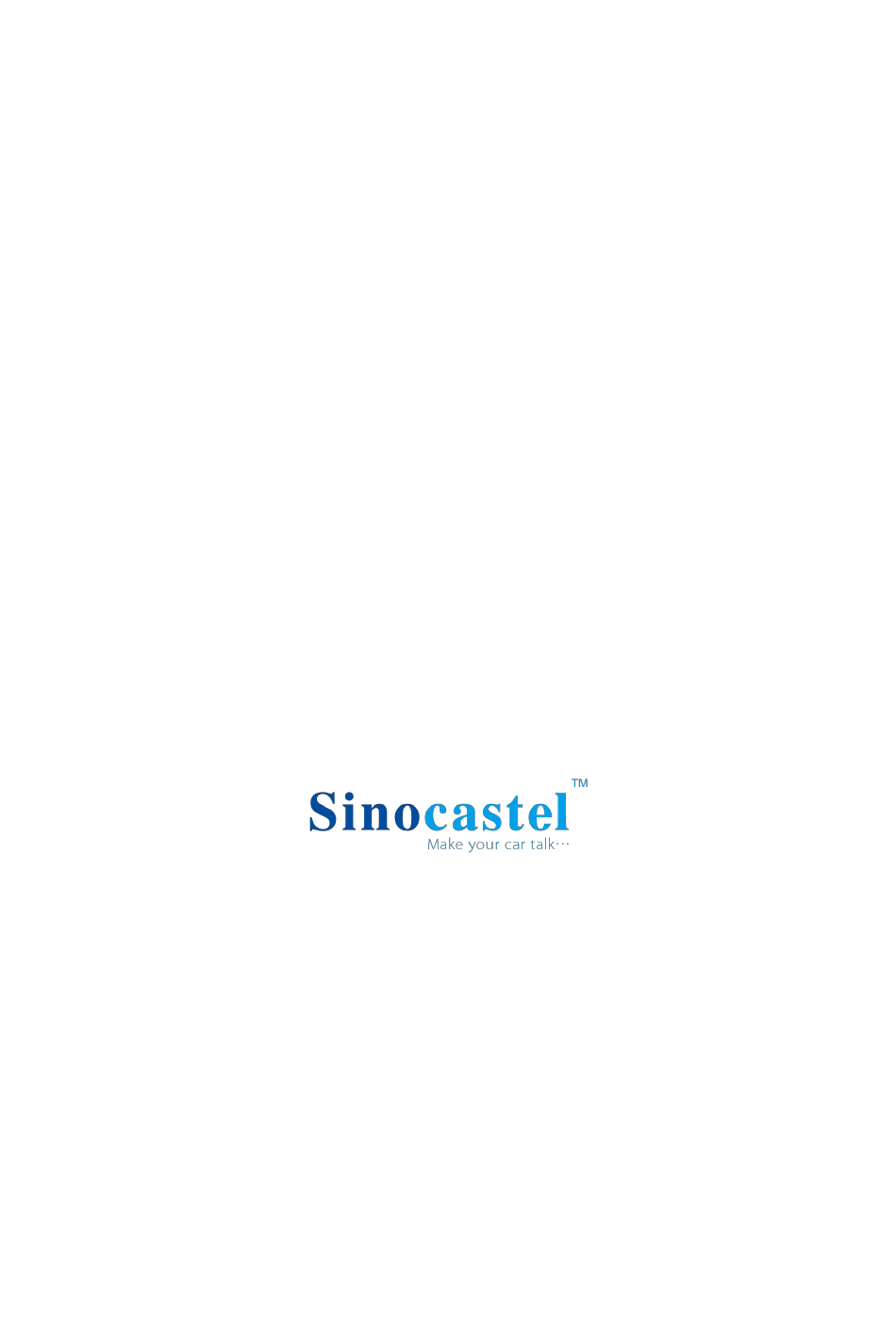

- Page 1 IDD-213L User Manual (Rev. 1.0) Sinocastel Co., Ltd. April, 2017...
-
Page 2: Table Of Contents
IDD-213L User Manual Contents 1. Introduction ............................. 2 2. Specifications ............................3 2.1 External Interface ........................... 3 2.2 Status Indicator ..........................4 2.3 Technical Parameters ........................5 3. Device Configuration ..........................6 3.1 Web Manager ............................6 3.2 SMS Instructions ..........................7 4. -
Page 3: Introduction
GPS, then send them to backend server for real-time remote diagnostic and tracking purpose. IDD-213L can also act as an in-Vehicle WiFi hotspot, up to 8 WiFi enabled devices can be connected to share high speed 4G LTE network. Packing List... -
Page 4: Specifications
IDD-213L User Manual OBD II extension cable ○ 9-Pin deutsch wiring harness ○ 6-Pin deutsch Wiring harness ○ Power cable (including 3A Fuse) ○ Note: ● Standard configuration ○ Optional configuration (Optional accessories will not be included if there is no indication in the order) 2. -
Page 5: Status Indicator
IDD-213L User Manual Connect to the 16 pin on-board Diagnostic Link Connector (DLC). 2. SIM Card slot 2.2 Status Indicator Indicator Color Status Solid on – Searching for GPS signal / Failed OBD communication Fast Blinking (on 1s, off 1s) – GPS fixed / Failed... -
Page 6: Technical Parameters
IDD-213L User Manual 2.3 Technical Parameters Dimension 63mm (L) x 50mm (W) x 26mm (H) Mechanical Weight OBD II connector: SAE J1962 Interface SIM card slot: Micro SIM, Push-Push Type Storage 8MB FLASH Data Transmission Packet data (TDD/FDD/HSPA/GPRS) and SMS... -
Page 7: Device Configuration
IDD-213L User Manual TD-SCDMA B34/B39 WCDMA/HSPA+ B1/B8 GSM/GPRS 900/1800MHz Frequency (IDD-213LE, Europe): FDD LTE B1/B3/B5/B7/B8/B20 WCDMA/HSPA+ B1/B5/B8 GSM/GPRS 850/900/1800/1900MHz Frequency (IDD-213LA, US): FDD LTE B2/B4/B5/B12/B17 WCDMA/HSPA+ B2/B4/B5 GSM/GPRS 850/1900MHz Data: LTE-FDD Max 100Mbps (DL) Max 50Mbps (UL) LTE-TDD Max 61Mbps (DL) Max 18Mbps (UL) HSPA+ Max 42Mbps (DL) Max 5.76Mbps (UL) -
Page 8: Sms Instructions
IDD-213L User Manual 3.2 SMS Instructions SMS command is mainly for remote maintenance. The message content is text format. Default secret key is the last 6 digits of the device ID. The key can only be changed through PC Tool. SMS format is defined as follows: 3.2.1 Set IP parameters... -
Page 9: Installation Instruction
IDD-213L User Manual Send SMS *SecretKey#position#*, device will reply *position#http://maps.google.com /?q=latitude,longitude*. e.g.: *123456#position#*http://maps.google.com/?q=22.536934,114.021425* 3.2.6 Set working mode Send SMS *SecretKey #set workmode#mode*, device will reply *set workmode#ok/fail*. mode = passenger、heavyduty 或 tracker e.g.: *123456#set workmode#tracker* 3.2.7 Get working mode Send SMS... -
Page 10: Obd Port
IDD-213L User Manual 4.2 OBD Port In general, the OBD port is located in the driver or passenger cabin, from the edge of dashboard on driver side to the border of 300mm. It is easy to touch by sitting in the driver's seat; the preferred location is within the area from... -
Page 11: Device Installation
IDD-213L User Manual 4.3 Device Installation Before installing the device, please make sure device has been configured with necessary parameters including network parameters and working mode. Park the car and make sure engine is off, align the OBD connector of the device with the engine diagnostic port and simply push in place, ensuring the device is secure. - Page 12 IDD-213L User Manual Some heavy duties may need 9-Pin or 6-Pin deutsch wiring harness. For vehicles do not have an OBD port, please use power cable to connect vehicle battery and configure the device with tracker mode. Start engine, then device starts OBD communication, acquiring GPS info and Cellular network connection.
- Page 13 IDD-213L User Manual Log into www.livetelematics.com to check real-time monitor and trip reports. Login Vehicle monitoring list...
-
Page 14: Functions
IDD-213L User Manual Vehicle real time monitor 5. Functions 5.1 OBD Protocols Device supports all legislated OBD II protocols, it is also SAE J1939 and SAE J1708 compliant. SAE J1850-PWM SAE J1850-VPW ISO 9141-2 ISO 14230-4 (KWP2000) ... -
Page 15: Wifi Hotspot
IDD-213L User Manual Data transmission between device and the server can be encrypted with AES 128bit, the AES key is generated by device randomly and sent to the server with encryption of RAS 2048bit. Each time device logs into the server it synchronizes the AES key with the server. -
Page 16: Regular Diagnostic Data Reporting
IDD-213L User Manual G-Sensor message until it has collected specified groups of G-Sensor data. Groups of G-Sensor data per message can be 50-100 and default setting is 100. 5.8 Regular Diagnostic Data Reporting Device is able to read variety of vehicle diagnostic data, also called PID... -
Page 17: Alarms And Events Reporting
IDD-213L User Manual Real-time detects bad driving behavior, including Speeding, high RPM, hard acceleration, hard brake, quick lane change, sharp turn and excessive engine idle time. 5.16 Alarms and Events Reporting Alarms and Events are reported when they are triggered or eliminated and there comes short beeps, beeps are disabled by default. -
Page 18: Gps/Cellular Timer
The device is compatible with OBD II standard, it is also SAE J1939 and J1708 compliant. While some vehicles are not following those standards, therefore Sinocastel can not guarantee the OBD performance of the device with every vehicle. The GPS function may be affected in electromagnetic shielding area or bunker place. -
Page 19: Warranty
SIM card which is restricted by region. To make sure the products works well, please use the original accessories. This manual is based on the “as-is” situation. Sinocastel will not guarantee the accuracy, reliability and content of the handbook. Also Sinocastel reserves the right to amend or withdrawn this manual without any prior notification. -
Page 20: Statement
Sinocastel reserves the rights to modify or improve these products without any prior notification. Sinocastel reserves the rights to change or cancel the content of this document without any prior notification. All rights reserved by Sinocastel Co., Ltd.
