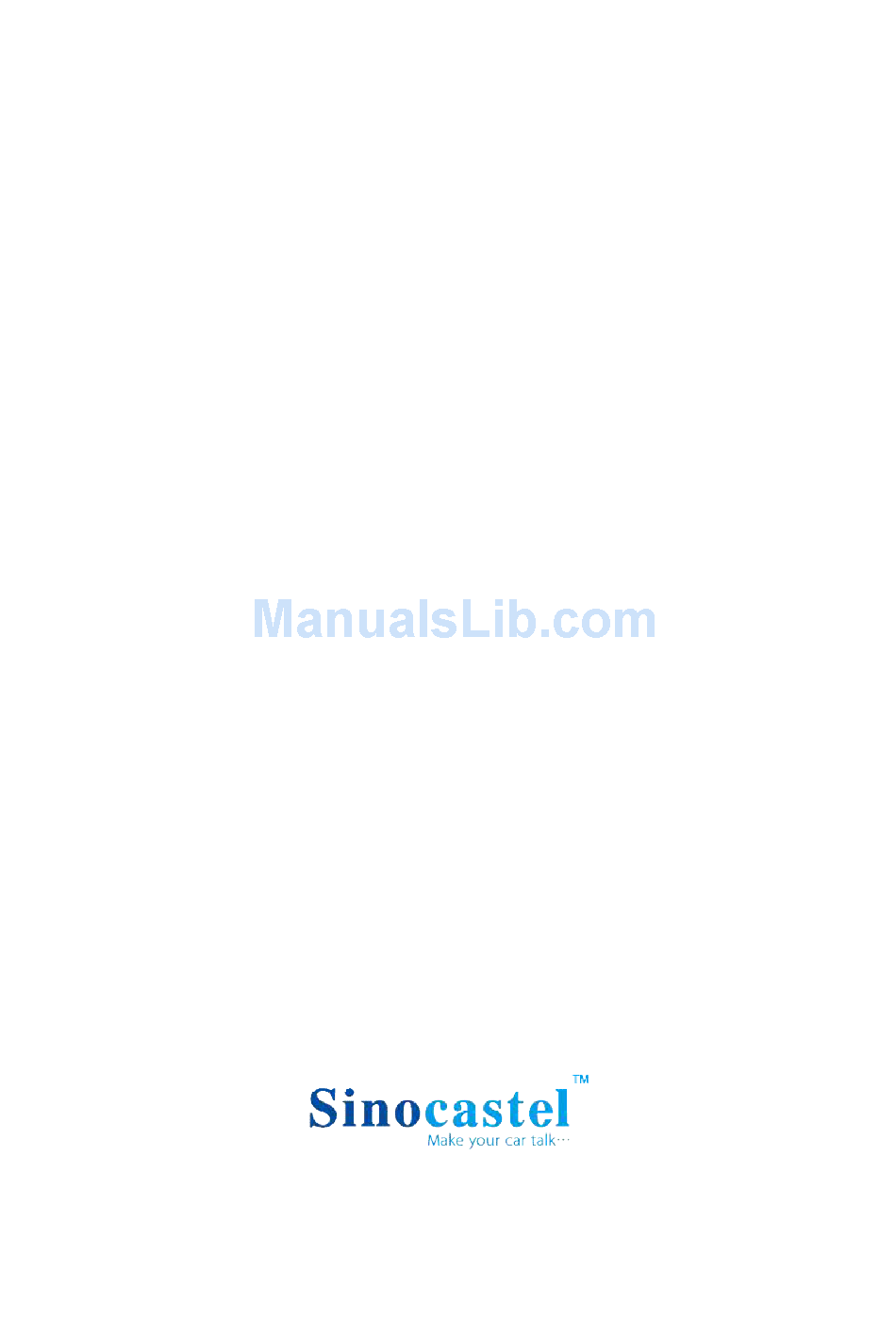

- Page 1 IDD-213L Installation Guide Rev 1.0 Sinocastel Co.,Ltd. June, 2017...
- Page 2 Device Installation Guide Sinocastel OBD Device can be used on vehicles equipped with OBD II system (vehicles manufactured after 1996 in US and after 2000 in Europe). There is a 16-Pin DLC (Diagnostic Link Connector) on vehicles with OBD II compliant. In general, the 16-Pin DLC is located in the driver or passenger cabin, from the edge of dashboard on driver side to the border of 300mm.
- Page 3 Device Installation Guide Step 1: SIM Card Access 1. Remove the SIM card cover. 2. Insert the SIM card (Micro type) and press gently, a click will be heard upon successfully placing the SIM card in its place, please follow the insertion direction marked on the SIM card cover 3.
- Page 4 Device Installation Guide A: Set the network parameters: B: Set the WiFi parameters: WiFi Parameters also can be set by WEB...
- Page 5 Device Installation Guide Connect to device via WiFi with mobile phone, default WiFi name and password can be found on the label, log in web manager at http://192.168.225.1, WiFi name and password can be changed here, after save WiFi will reboot. C: Set the work model: Step 3: Locate the vehicle’s diagnostic port, typically found in the driver’s area at or below knee level.
- Page 6 Device Installation Guide Step 4: Park the car and make sure engine is off Align the OBD connector of the device with the engine diagnostic port and simply push in place, ensuring that the device is secure. If the OBD port cover can not be closed back after device plugged in, please use OBD extension cable and mount the device in proper place.
- Page 7 Device Installation Guide Some heavy duties may need 9-Pin or 6-Pin deutsch wiring harness. For vehicles do not have an OBD port, please use power cable to connect vehicle battery and configure the device working with tracker mode. Start engine, then device starts OBD communication, acquiring GPS info and 4G/WiFi network connection.
- Page 8 Device Installation Guide Login Vehicle monitoring list Vehicle real time monitoring...
