Summary of Contents for i3-TECHNOLOGIES i3AALLSYNC

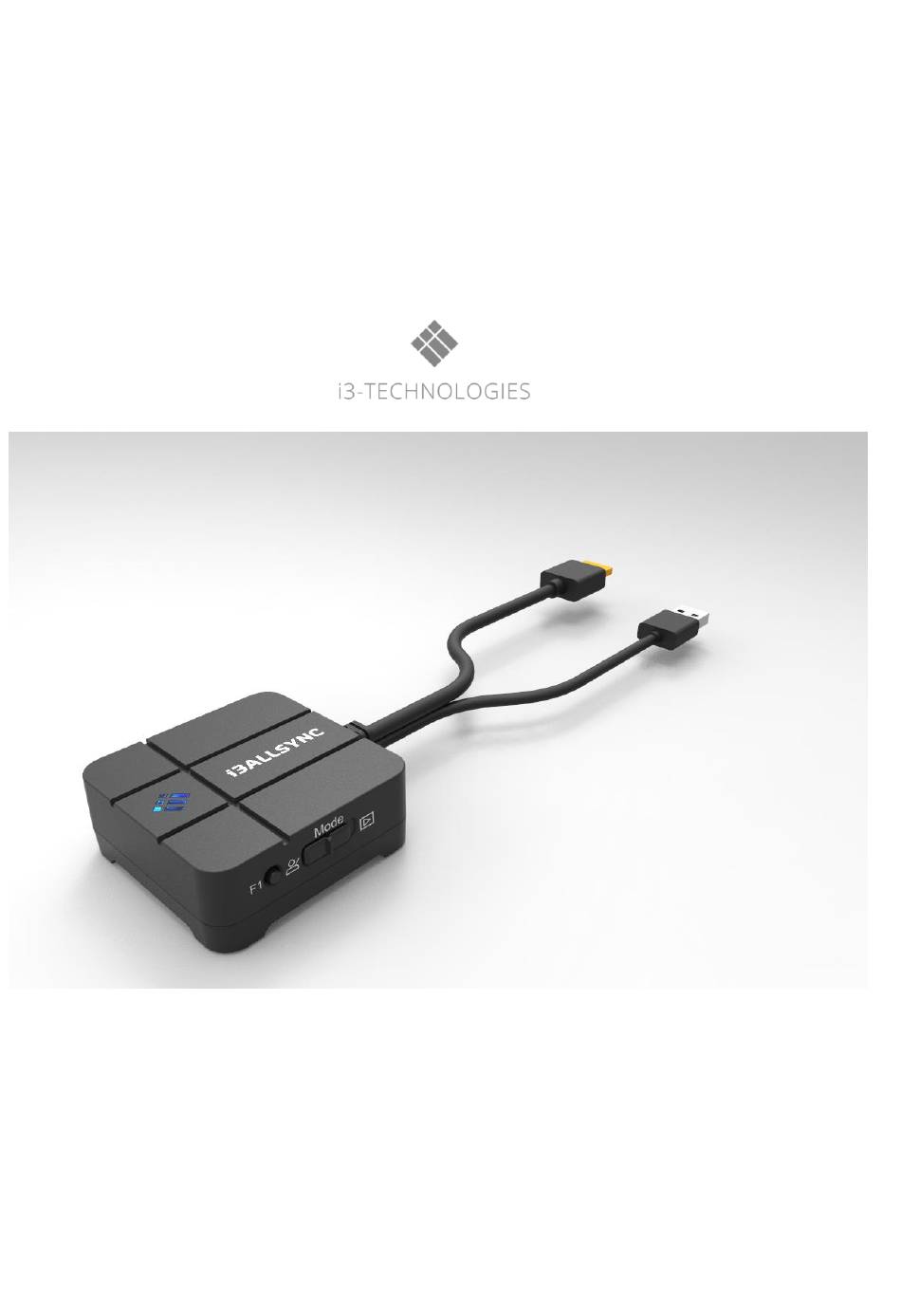

- Page 1 HDMI Transmitter User Manual www.i3-technologies.com...
-
Page 2: Table Of Contents
Table of Contents Chapter 1: Product Introduction ........................3 1-1 Package Contents ..........................3 1-2 Hardware Recommendation ......................3 1-3 Wi-Fi requirement ........................... 3 1-4 Description of functions ........................3 Chapter 2: How to connect ........................... 5 Chapter 3: Use i3ALLSYNC HDMI Transmitter to mirror................6 3-1 How to pair the i3ALLSYNC HDMI transmitter for the first time: ........... -
Page 3: Chapter 1: Product Introduction
Chapter 1: Product Introduction Thank you for purchasing i3ALLSYNC HDMI Transmitter. This section is going to introduce you the i3ALLSYNC HDMI transmitter. 1-1 Package Contents 1. i3ALLSYNC HDMI Transmitter 2. Manual 1-2 Hardware Recommendation 1.Your device which will function as transmitter needs to be foreseen off an HDMI and USB connection ... - Page 4 Item Function Description Main Button Pairing / Start mirroring / Stop mirroring F1 Button Service button Mode Switch Switch Presentation Mode / Video Mode Status Color LED Action Standby Lights up constantly Connection failed Flash three seconds and stop three seconds Waiting for pairing White...
-
Page 5: Chapter 2: How To Connect
Chapter 2: How to connect 1. Connect the i3ALLSYNC HDMI transmitter to your device:... -
Page 6: Chapter 3: Use I3Allsync Hdmi Transmitter To Mirror
Chapter 3: Use i3ALLSYNC HDMI Transmitter to mirror. 3-1 How to pair the i3ALLSYNC HDMI transmitter for the first time: 1. Activate your i3ALLSYNC app on your i3TOUCH or i3HUDDLE: 2. Select the “settings” icon in your round i3ALLSYNC menu and follow the indicated steps on your screen. - Page 7 When using the i3ALLSYNC HDMI Tx at the first time, please select “Setting” click on “WiFi HDMI Tx pairing” in the right corner of your i3ALLSYNC app then hold down the main button of Transmitter for 4 seconds.
- Page 8 Enter the password of your router and select “pairing”, now your transmitter will start auto pairing.
- Page 9 After this procedure, the auto pairing is complete.
-
Page 10: How To Use
3-2 How to use After the pairing connection is completed, the transmitter is ready for screen mirroring. Your main button will now be constantly green. (When your main button blinks green, the transmitter is still pairing). Tap the main button to start the sharing. Once you’re sharing your main button will turn blue. If you would like to stop the sharing, just click the main button again and the light will change back green. -
Page 11: Chapter 4: Troubleshooting And Faq
Chapter 4: Troubleshooting and FAQ Transmitter connected to power but doesn’t receive HDMI signal data. Please check the HDMI cable is plugged in. Disconnected... - Page 12 Please check the Tx HDMI connection and power cable connection. What's video mode and presentation mode? Mode indication is shown before mirroring. Presentation mode is designed with lower latency. Video mode is designed with higher FPS and the video play is smooth. ...
