i3-TECHNOLOGIES i3ALLSYNC Touch Stand-alone 4.0 User Manual

Hide thumbs Also See for i3ALLSYNC Touch Stand-alone 4.0:
Table of Contents

Advertisement

Quick Links

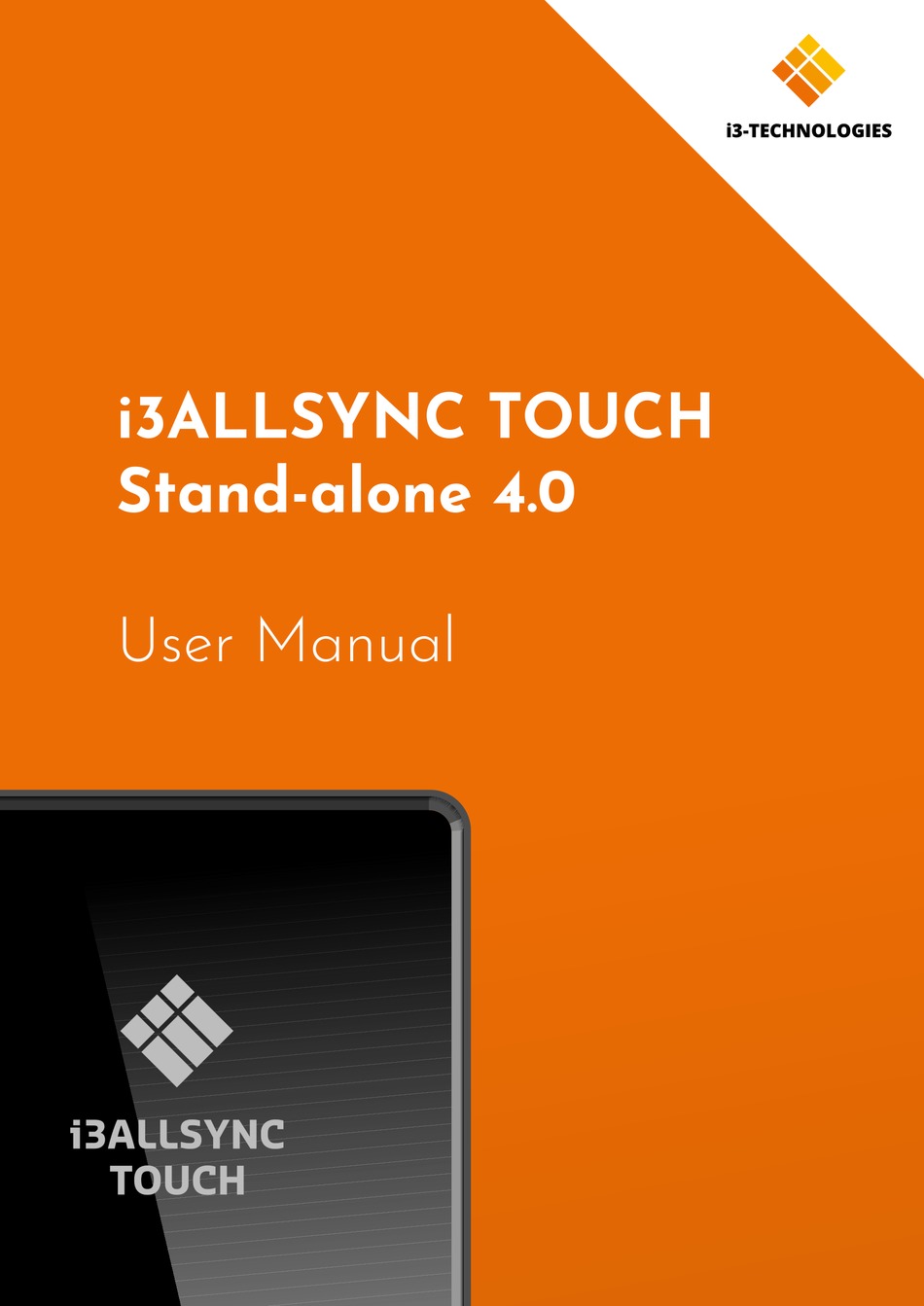

i3ALLSYNC TOUCH
Stand-alone 4.0
User Manual
i3ALLSYNC TOUCH Stand Alone
|
1
product introduction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i3ALLSYNC Touch Stand-alone 4.0 and is the answer not in the manual?

Questions and answers

Related Manuals for i3-TECHNOLOGIES i3ALLSYNC Touch Stand-alone 4.0

Summary of Contents for i3-TECHNOLOGIES i3ALLSYNC Touch Stand-alone 4.0

  • Page 1 i3ALLSYNC TOUCH Stand-alone 4.0 User Manual i3ALLSYNC TOUCH Stand Alone product introduction...

  • Page 2: Table Of Contents

    Contents 1. Product introduction ........................3 1.1 Introduction ...................................................3 1.2 Package contents ..............................................3 1.3 System requirements ............................................3 1.4 Description of functions ..........................................3 2 Installation of the receiver ....................4 2.1 Pair your i3ALLSYNC TOUCH HDMI with your i3ALLSYNC Touch Stand-alone Receiver 4.0 ....4 2.2.

  • Page 3: Product Introduction

    1. Product introduction Thank you for choosing the i3ALLSYNC TOUCH Stand-alone 4.0 presentation solution. 1.1 Introduction This User Reference Guide provides a summary of how i3ALLSYNC Touch Stand-alone works for users, in- cluding an overview of an i3ALLSYNC Touch Stand-alone system as well as steps for users to connect, share and control content on an i3ALLSYNC wireless display using laptops, mobile devices and the display user interface.

  • Page 4: Installation Of The Receiver

    2 Installation of the receiver A. Connect an HDMI cable from your display to the HDMI OUT port of the Receiver B. Connect a USB cable from a touch device to the USB port of the Receiver C. Connect the Power Supply that is included, in the Power port of the Receiver Once you’re all set up, decide if you want to share your screen with the software or hardware transmitter solution.
  • Page 5 Wireless pairing When you use the i3ALLSYNC HDMI transmitter for the first time, you must do a little pairing process before you can start screen sharing. But be aware that the pairing process only must be done once. After this pro- cess you can just connect the HDMI transmitter to your laptop, press the main button and your screen will be mirrored.
  • Page 6 3. Press ‘next’ 4. Press and hold down the main button for 4 seconds until the main button flashes white. Press ‘next’ when your main button is flashing white. 5. Enter the password of your WiFi network and click on ‘pairing’ i3ALLSYNC TOUCH Stand Alone installation of the receiver...
  • Page 7 6. Now your HDMI Transmitter and the i3ALLSYNC receiver will pair. After this procedure, the auto pairing is complete. Wait for a constantly green light, then press the main button and your screen will be mirrored. Wired pairing: 1. Make sure that your Receiver is connected properly with your interactive display. 2.
  • Page 8 12. i3ALLSYNC TOUCH HDMI Transmitter is now paired and ready to use, enjoy! Please refer to our website for more information about the i3ALLSYNC HDMI transmitter and it’s manual: www.i3-technologies.com i3ALLSYNC TOUCH Stand Alone installation of the receiver...

  • Page 9: Install The I3Allsync Software Transmitter

    2.2. Install the i3ALLSYNC Software transmitter If you would like to start screen sharing via the software transmitter, then please download the transmitter on i3ALLSYNC.com. Download the transmitter for your operating system. Using iPhone to screen share? Then just get started with ‘Airplay’. •...

  • Page 10: Action Short Cut On The Touch Panel

    3.1.2 Action Short Cut on the touch panel Press the to expand the floating circle menu. Press the center of the floating menu again to close it. Enable / Disable the Conference Mode from receiver server. Show clients’ screens preview on left or right bar in conference mode Enable/Disable Back Control from receiver to control the Windows / Mac clients.

  • Page 11: Basic Mode And Conference Mode

    3.1.3 Basic Mode and Conference Mode Basic Mode All the clients with i3ALLSYNC transmitter software or app are free to share their screens once their devices are connected to the i3ALLSYNC receiver server. The clients can share one after another in full screen or in split-screen. Conference Mode A meeting control system that enables the meeting host as admin to organize the connected devices and select which screen to share and stop.

  • Page 12: Touch Back

    3.1.4 Touch back The Touch back feature enables the i3ALLSYNC receiver to interact with the i3ALLSYNC client. Make a click on i3ALLSYNC receiver, i3ALLSYNC will do a same click on the client’s device. This enables you to control your laptop on the display without remote. Click to enable Touch back from receiver to control the Windows/Mac client.

  • Page 13: Android) System Settings

    Attendee Set the period of Attendee List Preview update. Only effective when Conference Mode enabled. Preview Click “Send To Desktop” to send the log file to desktop. Send this file to support team to analyze Log Output the software issue. Version The i3ALLSYNC version.
  • Page 14 More settings i3ALLSYNC TOUCH Stand Alone how to use your presenting solution...

  • Page 15: The Whiteboard Application

    Please check our i3NOTES manual on the website if you would like to receive some more information and to get known with our tips & tricks of the whiteboard application. www.i3-technologies.com 4. How to start screen mirroring? The user has the option to choose between a software and hardware transmitter. The software transmitter can be downloaded from the website.

  • Page 16: Troubleshooting

    System update 6. Troubleshooting Screen mirroring with my i3ALLSYNC Android transmitter software doesn’t work. Please turn of your 4G before you start the screen sharing. This is a bug at Android and can’t be fixed by i3. Troubles with the license of the i3ALLSYNC Receiver? What can you do: •...
  • Page 17 No sound You are screen sharing but there is no sound on your touch display? • Are you using an Android device? Sorry, it’s not possible with an Android device. Are you using a Win- dows or Mac than please follow the steps below •...
  • Page 18 Mac permission settings How to turn on permissions if I didn’t allow permission when I installed the software? Go to "system preferences" Select "security & privacy" Choose the tab "general" and click the lock icon to unlock it, then choose "allow" No sound with macOS software transmitter Please contact our service team.

This manual is also suitable for:

I3allsync touch stand-alone rx 4.0I3allsync touch hdmi
