Rexnord Falk Quadrive A Mounting & Installation

Instructions

For non-standard mountings, modify drives as illustrated
below and on Page 2 to assure satisfactory lubrication. For
applications that exceed the limits shown, drives that are both
rotated AND tilted and drives with backstops, consult Factory.
CAUTION: Inadequate lubrication will cause damage.
When replacing a pipe plug (P) with a street elbow (E), insert
the plug in the elbow (E/P). When replacing a pipe plug (P)
with a street elbow (E), pipe nipple (N) and a pipe cap (C),
discard the pipe plug. Kits consist of parts for an oil expansion
chamber. Pipe fittings and kits tabulated on Page 2are
available from Rexnord. Pipe fittings may also be purchased
locally. Use galvanized pipe fittings.
Horizontal Drive Modifications 20° Max. Drive Rotation
5 to 20° CW Rotation – Sizes 5107 & 5115
10 to 20° CW Rotation – Sizes 5203 thru 5315
3 O'Clock — CW Rotation
L
5107 = STD 5115 = .375 E/P
6 O'Clock — CW Rotation
L
L
5107 = STD
5115 = .375 E/P
9 O'Clock — CW Rotation
L
L
5107 = 5-12° STD 5203 & 5207 = KIT 0786775
5107 = 13-20° .375 E/P 5215 thru 5315 = KIT 0786776
5115 = .375 E/P
12 O'Clock — CW Rotation
L
L
5107 = .375 E/P 5115 = .375 E/P
Rexnord Industries, LLC, Gear Group
3001 W. Canal St., Milwaukee, WI 53208-4200 USA Telephone: 414-342-3131
Fax: 414-937-4359 e-mail: info@rexnord.com web: www.rexnord.com
®
Falk™ Quadrive Shaft Mtd. Drives Model A
Sizes 5107-5315
L
L
5203 & 5207 = KIT 0786775
5215 thru 5315 = KIT 0786776
L
5203 thru 5315 = STD
L
5203 & 5207 = KIT 0786775
5215 thru 5315 = KIT 0786776
Non-Std. Mounting Installation
•

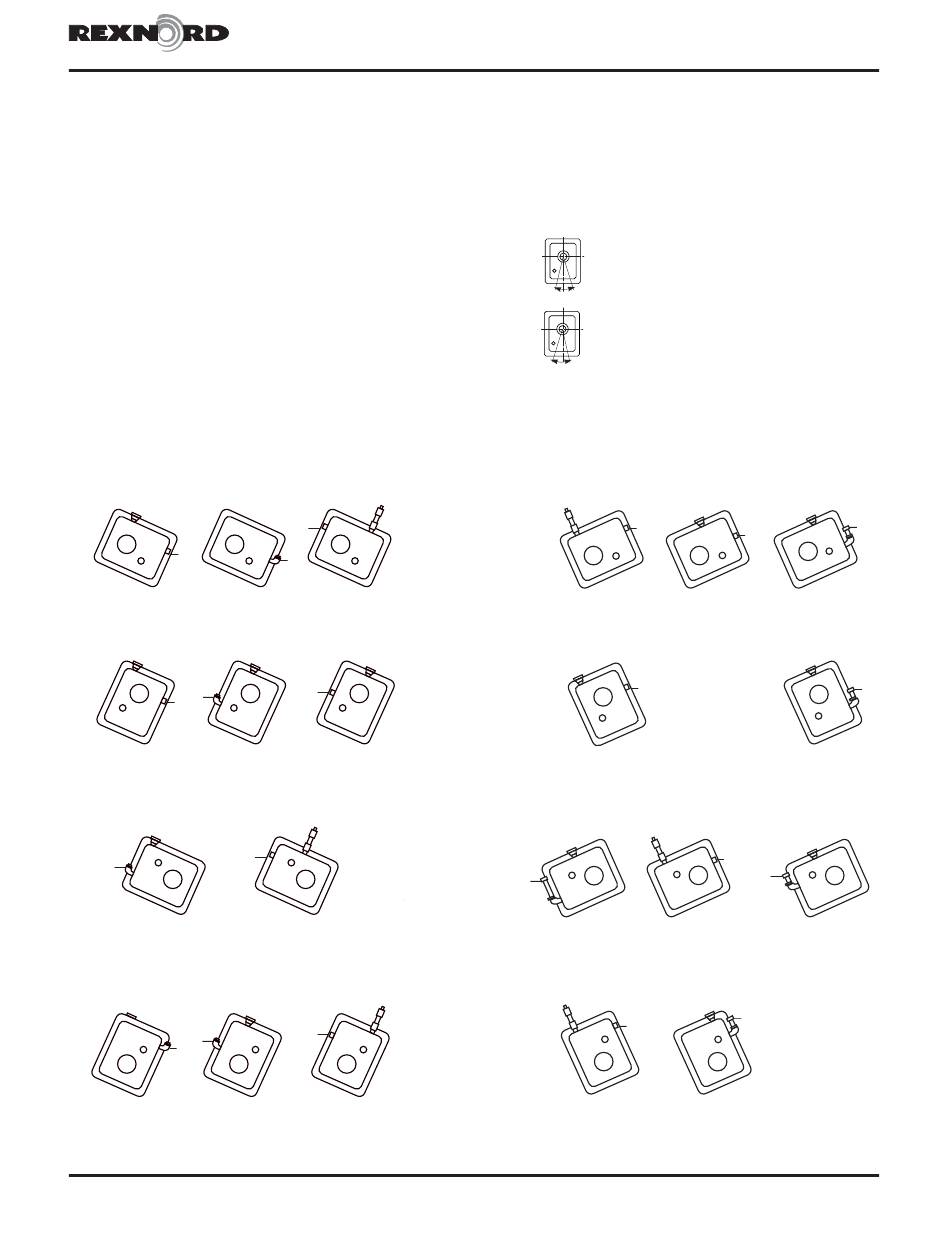

Remove all pipe plugs and coat them and the added parts, with
