HDVision R8VDHS Installation Manual

R8VDHS 8 MP 4-in-1 HD Varifocal 100 ft IR
Dome Camera Quick Installation Guide
This 8 MP HD-TVI dome security camera captures sharp high definition video images with its high-
performance CMOS sensor and 2.8 ~ 12 mm varifocal lens. This camera features:
3840 × 2160 (8 MP) progressive scan CMOS sensor
•
2.8 mm ~ 12 mm varifocal lens providing a 105.94°(W) ~ 29.76°(T) horizontal field of view
•
Switch selectable TVI, AHD, CVI or CVBS video signal format (4-in-1)
•
IR range up to 100 feet
•
Flip and Rotation image adjustments
•
D-WDR DIgital Wide Dynamic Range
•
IP66 weatherproof rating
•

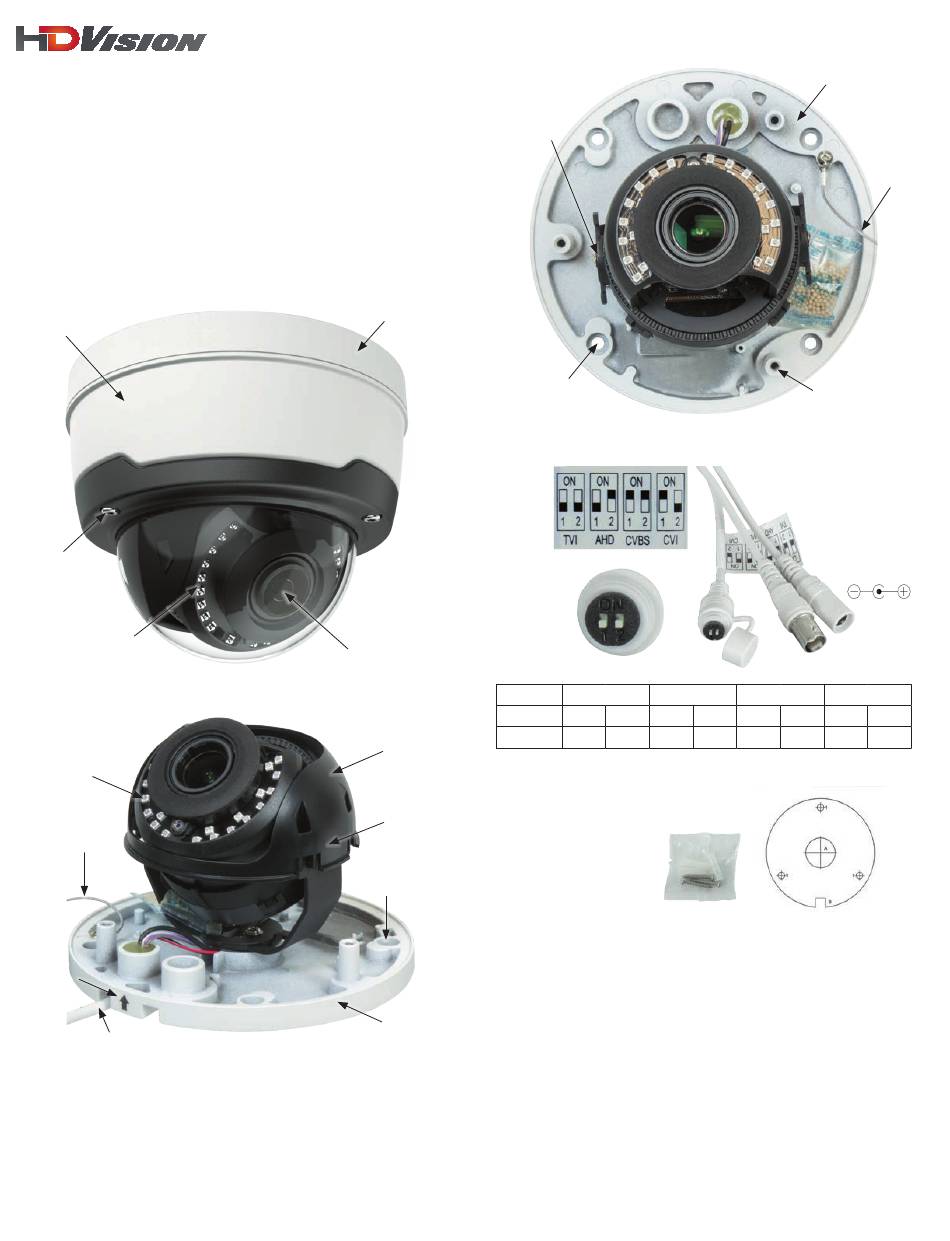

Dome
assembly
Dome
assembly
screws (3)
IR LEDs
R8VDHS camera assembly
IR LEDs
Safety cable
(attached
to dome)
Dome
alignment
mark
Drop cable and cable channel
Camera (dome assembly removed)
www.observint.com
1
Camera
gimbal pivot
point
Mounting base
Holes for
mounting
screws (4)
Lens
Format
Switch
Setting
Black liner
What's in the box
Camera gimbal
pivot point
Camera assembly
•
Mounting hardware
•
L-wrench for dome assembly
•
Holes for
Drill template
•
mounting
Quick Installation Guide
screws (4)
•
Tools you need
To install the camera, you will need:
12 Vdc power source. See Specifications for wattage requirement.
•
Tools and additional fasteners (may be required) for mounting the camera
Mounting •
base
Phillips #2 screwdriver
•
Video and 12 Vdc power extension cables
•
Installation
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
Camera (dome assembly and liner removed) top view
HD format select switches Cap
TVI AHD
1 2 1 2
Down Down Down Up
Camera drop cables
Mounting base
Safety
cable
Holes for dome
assembly screws (3)
12 Vdc connector
HD Video BNC connector
CVBS CVI
1 2 1 2
Up Up Up Down
