NightStick XPR-5572RM Instruction Manual

Instruction Manual
XPR-5572RM
US PATENT 9,713,217
THANK YOU FOR SELECTING THE NIGHTSTICK XPR-5572RM

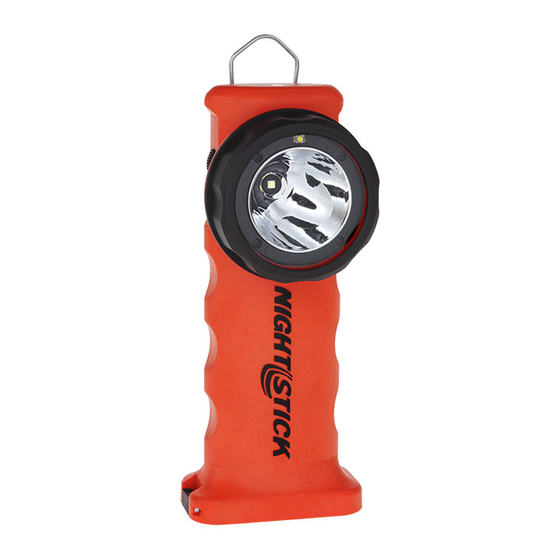

INTRINSICALLY SAFE PERMISSIBLE RECHARGEABLE ANGLE LIGHT
W/MAGNETIC BASE!
Please read these instructions before using your Nightstick XPR-5572RM.
They include important safety information and operating instructions.
THE XPR-5572RM IS APPROVED FOR USE
Permissible Nightstick XPR-5572 Flashlight/Floodlight
APPROVAL No. 20-A150005-0
TESTED FOR INTRINSIC SAFETY IN METHANE-AIR MIXTURES ONLY
WARNINGS: Do not charge in hazardous location. MSHA approved for use with Bayco
Li-ion Battery Pack 5572-BATT or Primary 5570-BATT Battery Pack containing 6 AA
Energizer Type EN91 or L91 batteries. Replace the Battery Pack in fresh air only. Do not
mix batteries from different manufacturers or different types. Battery Pack to be replaced by
a qualified technician only. The Model Nightstick 5572 must not be opened in areas where
permissibility is required. Substitution of components may impair Intrinsic Safety.
Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS
UL listed for use with Bayco Li-ion Battery Pack
5572-BATT or Primary 5570-BATT Battery Pack
containing 6 AA Energizer Type EN91 or E91 batteries.
E 467756
0359
WARNINGS - INTRINSICALLY SAFE
y WARNING: Use only the approved Nightstick 5572-BATT Lithium-ion
rechargeable battery pack or the approved non-rechargeable batteries
listed below.
y WARNING: To prevent ignition of a hazardous atmosphere, do not open
the battery compartment or attempt to exchange any of the supplied battery
packs while in the hazardous environment.
performed in an area known to be non-hazardous.
y WARNING: To prevent ignition of a hazardous atmosphere, the approved
Nightstick 5572-BATT Lithium-ion rechargeable battery pack must only be
charged in an area known to be non-hazardous.
y WARNING: When using non-rechargeable batteries in the Nightstick
5570-BATT, use only Energizer EN91 or Energizer E91 batteries.
y WARNING: To prevent ignition of a hazardous atmosphere, non-
rechargeable AA batteries must only be changed in an area known to be
non-hazardous.
y WARNING: To reduce the risk of explosion, do not mix new non-
rechargeable batteries with used non-rechargeable batteries, or mix non-
rechargeable batteries from different manufacturers.
y WARNING: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
y For personal safety, always confirm the rating of any known hazardous or
potentially hazardous location where the Angle Light is to be used.
CAUTION
y Rechargeable Lithium-ion batteries must be used and charged properly.
Improper use can result in serious injury, fire, or death.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
CLASS I DIV I GRPS A-D T3
CLASS II & III DIV I GRPS E-G
CLASS I ZONE 0 Group IIC T3
CLASS II ZONE 20 Group IIIC T3
-20ºC ≤ Tamb ≤ +70ºC
This task must ONLY be
Included in the box - Compris dans la boîte - Incluido en la caja
y Do not leave the battery in direct sunlight or use or store the battery inside
cars in hot weather.
y Do not expose the battery to water or salt water, or allow the battery to
get wet.
y Do not store the battery with metallic objects that may cause a short circuit.
y Immediately discontinue use of the battery if the battery emits an unusual
smell, feels hot, changes color, changes shape or appears abnormal in
any way.
y Keep out of the reach of children.
MOUNTING THE CHARGER
WARNING: While the XPR-5572RM Angle Light is certified as an
Intrinsically Safe Permissible product, the charger is NOT Intrinsically
Safe. The charger MUST be installed in a location far enough outside of
the hazardous environment to ensure that it can never come in contact
with any potentially explosive materials.
Tools required for installation:
y A small level
y A hammer
y A small center punch or nail
y An electric drill and drill bits to suit the wall material and anchoring method
y A #2 Phillips Head Screwdriver
y Torx Wrench (included)
The Nightstick 5572-CHGR1 wall/vehicle charger is designed to mount to
any flat, dry surface. The design of the charger will secure the Angle Light
into the charger at virtually any angle. As such, the charger can be mounted
at any angle. For purposes of these instructions, we will be mounting the
charger vertically.
Included with the wall/vehicle charger are 4 - #8 x 32 x 1 ½" Pan Head
Screws that can be used to install the charger to virtually any surface however
special mounting requirements may require different hardware.
y To install the charger, use the full-size DRILLING DIAGRAM TEMPLATE
located here in the instructions.
y Select a location to install the charger making sure to check what is on
the other side of the mounting surface...no electrical wires, water lines, etc.
y The other consideration for determining the mounting location of the
charger is the distance to the AC wall outlet or the 12v DC power outlet.
Please check to make sure that the appropriate Nightstick AC or DC Power
Supply will reach the charger when it is plugged in. Otherwise, relocate the
charger's installation location as needed.
y Once the appropriate location has been selected, tape the template in
place using blue painter's tape (or other non-marring tape) ensuring that
the template is level.
INS-XPR-5572RM-17
9-19-2017
