SMOKE & CO
COMBO
A L A R M
P H O T O E L E C T R I C
ZCOMBO-G
CAT.
Z-WAVE WIRELESS
INTERCONNECT
Communicates with First Alert protocol
enabled Z-Wave technology wireless
hubs. Note: This alarm will not connect
to Onelink or BRK Wireless Interconnect
alarms. Z-Wave hub not included.
PHOTOELECTRIC
Photoelectric technology is generally
more sensitive at detecting large par-
ticles, which tend to be produced in
greater amounts by smoldering fires.
SILENCE FEATURE
Silences nuisance alarms.
TAMPER RESISTANT
Locks alarm to mounting bracket to
prevent removal of battery and/or alarm.
Perfect for apartment, dormitory or hotel
applications.
3V (2 AA) Battery Powered
Description:

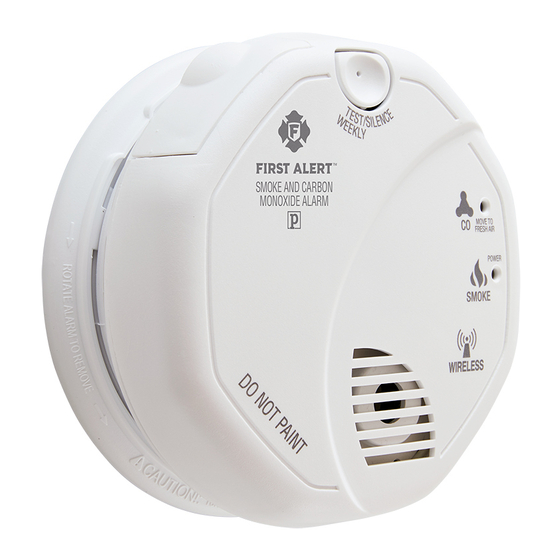

BRK ZCOMBO-G (model ZCOMBO) is a single station combination smoke and CO
alarm specifically designed for residential and institutional applications includ-
ing sleeping rooms of hospitals, hotels, motels, dormitories, and other multifamily
dwellings as defined in standard NFPA 101. BRK ZCOMBO-G has been fully tested
and complies with, UL217, UL2034, CSFM, NFPA 72, NFPA 720 and NFPA 101 and
other agencies that model their codes after the above agencies. It meets building
codes where battery operated Z-Wave wireless smoke and CO alarms are required
along with silence features and with model building codes published by the ICC.
BRK ZCOMBO-G is a state of the art wireless combination smoke and CO alarm
designed to provide early warning of a fire or CO. It features a fully insect screened
Photoelectric smoke sensing chamber and an electrochemical carbon monoxide
sensor, an 85dB horn, a supervised 3V (2 AA batteries) power supply, a full func-
tion test switch and a silence feature. This combination alarm will operate with 3rd
party, certified Z-Wave devices enabled with the First Alert protocol and the basic
command class required by all Z-Wave devices. By the requirements of the Device
Class spec, this command class does not have to be mapped to any particular
functionality for this device. The alarm supports one association group with up
to 1 node, and sends its alarms to that group. The alarm supports configuration
parameter #1, which has a size of 1, a default value of 0, and when set to 1 causes
the device to send double alarm messages.
It also features tamper resistant locking pins that lock alarm to the mounting
bracket and battery drawer to prevent removal of battery or alarm. Perfect for
apartment, dormitory or hotel applications. Designed for wall or ceiling mounting.
Includes mounting anchors and screws.
