XBOX 360 VGA HD AV Cable Quick Start Manual

X16-69671-02
1111 Part No. X16-69671-02
enGlisH

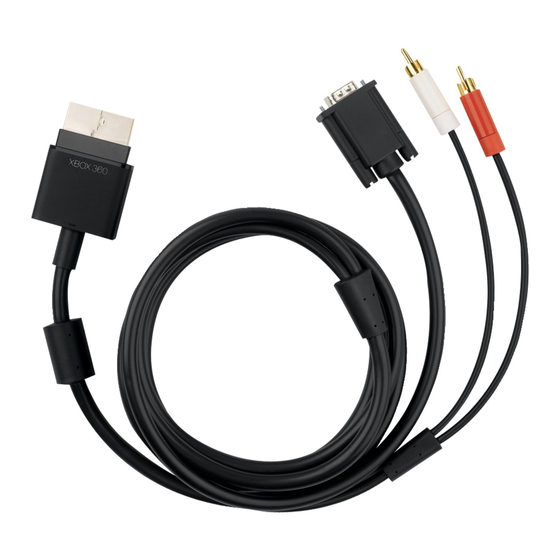

Xbox 360 VGA HD AV Cable
Thanks for choosing the Xbox 360 VGA HD AV Cable to connect your Xbox 360 console
®
to your VGA CRT, LCD, or HDTV monitor, including PC monitors. The cable also connects
to analog audio amplifiers. It is for use exclusively with the Xbox 360 video game and
entertainment system.
!
WARninG
Before using this product, read this manual and the Xbox 360 console instructions
for important safety and health information. For replacement manuals, visit
www.xbox.com/support.

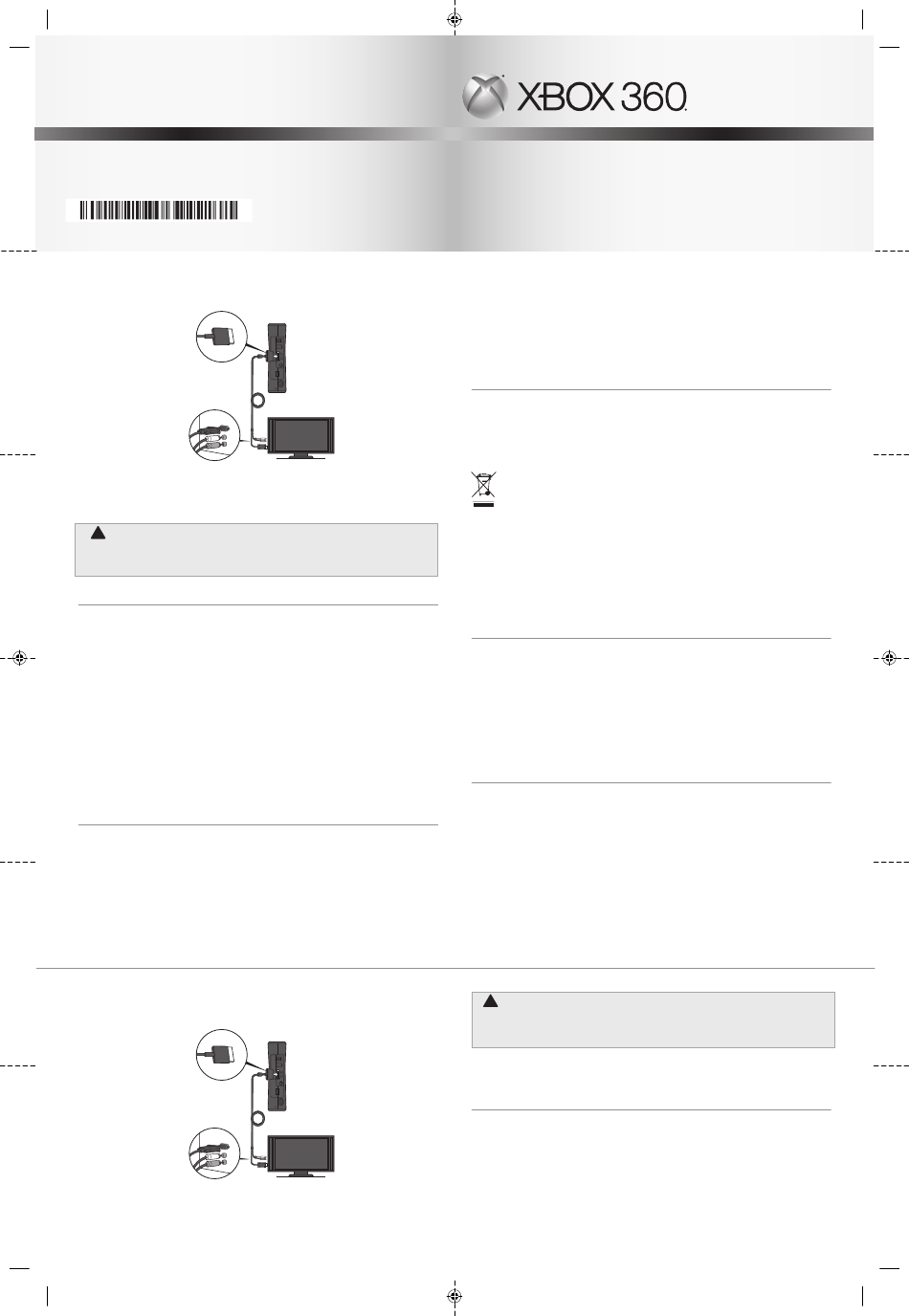

ConneCt YouR VGA HD AV CAble
Use your VGA HD AV cable to connect your console to a monitor and an audio system.
impoRtAnt
Stationary images in video games can "burn" into some TV screens, creating a permanent
shadow. Consult your TV owner's manual or manufacturer before playing games.
To connect your console to a monitor and audio:
Turn off your console.
1
Connect the AV connector on the VGA cable to the AV port on the console.
2
Connect the VGA connector on the VGA cable to the VGA input on your monitor.
3
note
Your monitor may not have a VGA input. If not, you may need to purchase additional
equipment. For further information, go to www.xbox.com/support.
Connect the left and right (white and red) audio connectors on the VGA cable to the
4
audio input on your monitor (if equipped), receiver, or amplified speaker system.
Turn on your console. From the system area, you can change your display settings.
5
Select the appropriate screen size and resolution for your monitor.
tRoublesHootinG
If you encounter problems, try the possible solutions indicated below.
no picture
Turn on the monitor. Try resetting your display settings. Remove any disc from the disc
tray and turn off your console. Then press and hold the Xbox Guide button on player
one's controller to turn the console back on.As it starts up, press and hold the Y button
while pulling the right trigger. Your console will return to its default display settings.
中文
Xbox 360 高解析 VGA AV 端子線
感謝您購買 Xbox 360 高解析 VGA AV 端子線，用於連接您的 Xbox 360 主機與 VGA
®
CRT 顯示器、LCD、或高畫質電視螢幕，包括電腦螢幕。本端子線也可以連接到類比音效
擴大器，但僅能與 Xbox 360 視訊遊戲家庭娛樂系統搭配使用。
picture with no sound
Make sure the video and audio connectors are connected to the same input group on the
back of your monitor. If you're using a separate receiver or amplifier, make sure the unit is
turned on.
sound with no picture
Verify that your monitor is turned on. Check your connections and make sure your
monitor has been set to display video from the port into which the VGA cable is plugged.
if You neeD moRe Help
For answers to common questions, troubleshooting steps, and Xbox Customer Support
contact information, visit www.xbox.com/support.
Do not take your Xbox 360 console or its accessories to your retailer for repair. Please visit
www.xbox.com/support for troubleshooting and service information.
Disposal of Waste batteries and electrical & electronic equipment
This symbol on the product or its batteries or its packaging means that this
product and any batteries it contains must not be disposed of with your household
waste. Instead, it is your responsibility to hand this over to an applicable collection
point for the recycling of batteries and electrical and electronic equipment. This
separate collection and recycling will help to conserve natural resources and prevent
potential negative consequences for human health and the environment due to the
possible presence of hazardous substances in batteries and electrical and electronic
equipment, which could be caused by inappropriate disposal. For more information about
where to drop off your batteries and electrical and electronic waste, please contact your
local city/municipality office, your household waste disposal service, or the shop where
you purchased this product.
This product is for use with NRTL-listed (UL, CSA, ETL, etc.) and/or IEC/EN 60950 compliant
(CE marked) Information Technology equipment.
foR CustomeRs in tAiWAn
product information
Product name: Xbox 360 VGA HD AV Cable
Model no.: Xbox 360 VGA HD AV Cable
Country of origin: China
Manufacturer name: Microsoft Corporation
Importer name: Synnex Technology International
Importer's Address: 4th Fl. 75, Section 3, Min-Sheng E. Rd., Taipei 104
Importer's number: (02) 2506-3320
CopYRiGHt
Information in this document, including URL and other Internet Web site references, is subject to change
without notice. Unless otherwise noted, the example companies, organisations, products, domain names,
e-mail addresses, logos, people, places and events depicted herein are fictitious, and no association with
any real company, organisation, product, domain name, e-mail address, logo, person, place or event is
intended or should be inferred. Complying with all applicable copyright laws is the responsibility of the
user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in
or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical,
photocopying, recording, or otherwise), or for any purpose, without the express written permission of
Microsoft Corporation.
Microsoft may have patents, patent applications, trademarks, copyrights or other intellectual property
rights covering subject matter in this document. Except as expressly provided in any written licence
agreement from Microsoft, the furnishing of this document does not give you any licence to these
patents, trademarks, copyrights or other intellectual property.
© 2011 Microsoft Corporation. All rights reserved.
Microsoft, Xbox, Xbox 360, Xbox LIVE, the Xbox logos, and the Xbox LIVE logo are trademarks of the
Microsoft group of companies.
!
警告
在使用此產品前，請閱讀本手冊與 Xbox 360 手冊，以取得重要的安全和健康資訊。
請妥善保存所有手冊，以供未來參考之用。如需下載手冊，請至 www.xbox.com/
support 網站下載。
亞太國家/地區專用 (澳大利亞除外)
有限瑕疵擔保網址 www.xbox.com/warranty
連接您的高解析 VGA AV 端子線
使用您的高解析 VGA AV 端子線，將您的主機連接到螢幕及音效系統。
重要事項
視訊遊戲中的靜態影像可能會「燒穿」螢幕，造成永久陰影不會消失。請在進行遊戲之
前，參考您的電視使用手冊或向製造商詢問相關事宜。
如何將主機連接到螢幕：
1 關閉您的主機。
將 VGA 端子線上的 AV 接頭連接到主機上的 AV 埠。
2
將 VGA 端子線上的 VGA 接頭連接到您螢幕的 VGA 輸入。
3
VGA HD AV CAble
高解析 VGA AV 端子線
VGA HD AV 케이블
