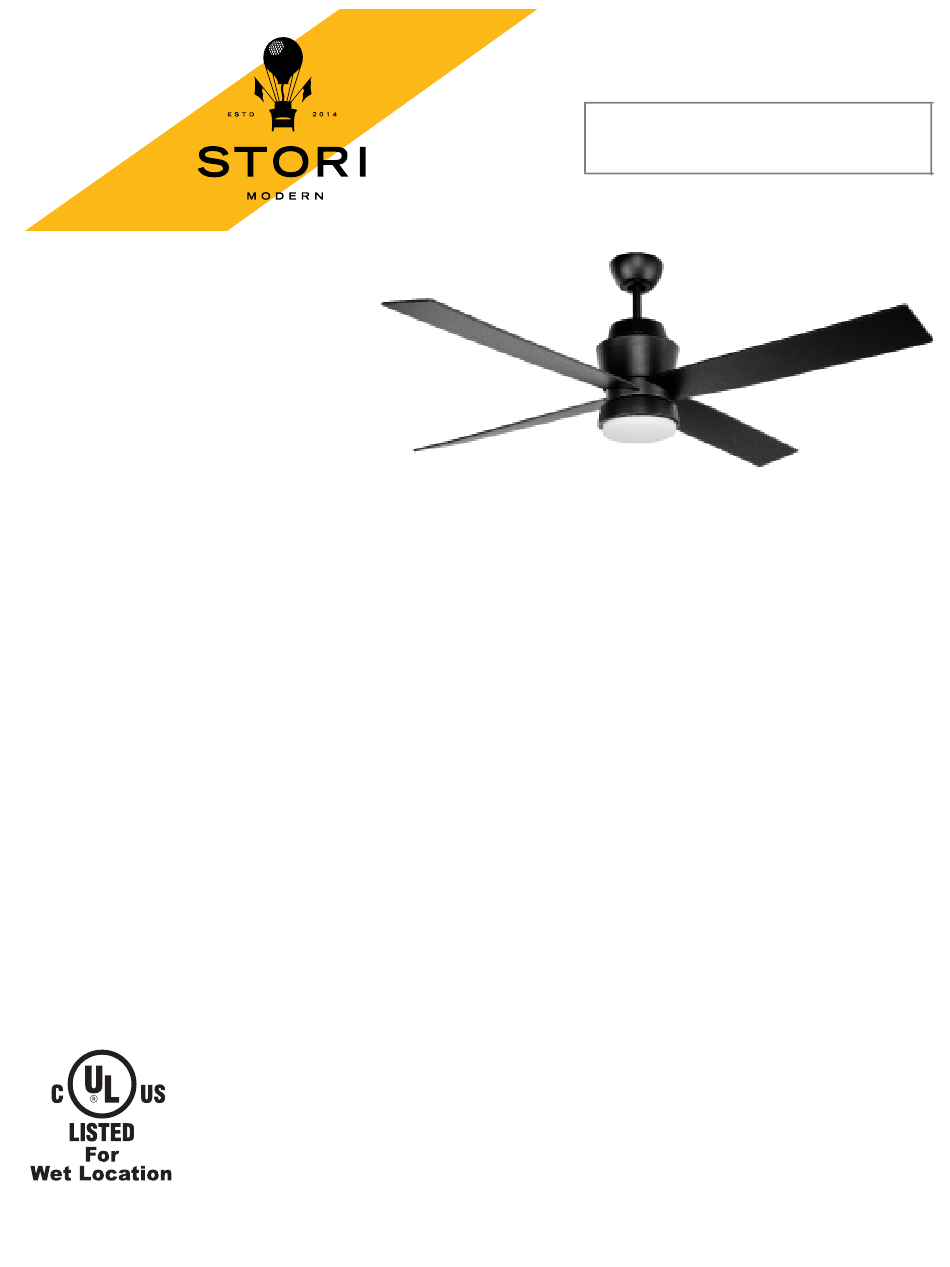

READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Prologue Installation Guide Table of Contents: Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly. pgs. 4 - 5 Wiring.
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a inches clearance of 7ft. (2.13m) from the floor and 30in. 7 feet (76cm) (76cm) from any wall or obstruction. (2.13m) This fan is suitable for room sizes up to 400 square feet (37.2 square meters).
5. Fan Assembly. If you wish to extend the hanging length of your fan, you set screw hole must remove the hanging ball from the downrod set screw provided to use with an extended downrod (sold stop pin separately). [If you wish to use the downrod provided, please proceed to instructions following the dotted line below.] To remove hanging ball, loosen set screw on hanging...
5. Fan Assembly. (cont.) safety cable loop wood ceiling With the hanging bracket secured to the outlet box and joist able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod wood screw through opening in hanging bracket and let hanging and washer...
7. Canopy Assembly. antenna Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging hanging bracket. Partially loosen the other screw. Lift canopy to bracket hanging bracket. Place rounded part of slotted hole in screw canopy over loosened screw in hanging bracket and push up.
Page 8
9. Light Kit Assembly (Optional). (cont.) Place big slotted holes in light kit plate over motor screws in fitter plate, allowing molex housing connections from motor housing to come through hole in middle of light kit plate. Adjust light kit plate if necessary so smaller holes align and then re-insert the 3 screws that were fitter plate previously removed.
10. Automated Learning Process./ Activating Code. CAUTION: The remote control transmitter can be remote control programmed to multiple receivers or fans. If this is transmitter (backside) not desired, turn wall switch off to any other programmable receiver or fan. Remove battery cover from backside of remote control transmitter.
11. Remote Control Operation. to control fan speed button - turns fan to HIGH speed button - turns fan to MEDIUM speed button - turns fan to LOW speed button - turns fan OFF to control light brightness - turns light kit ON/OFF when pressed once; dims light kit when pressed and held down 12.
Troubleshooting. Warranty. WARNING: Failure to disconnect power supply STORIMODERN LIFETIME LIMITED WARRANTY: STORIMODERN warrants this fan to the original household prior to troubleshooting any wiring issues may purchaser for indoor/outdoor use under the following result in serious injury. provisions: 1-YEAR WARRANTY: STORIMODERN will replace or repair Problem: Fan fails to operate.
Page 12
LEER ESTAS INSTRUCCIONES Y GUARDARLAS PARA UTILIZACION FUTURA Prologue Guía de instalación Índice de materias: Sugerencias de seguridad. Pág. 1 Desempaquetado del ventilador. Pág. 2 Inventario de piezas. Pág. 2 Preparación para la instalación. Pág. 3 Instalación del soporte de montaje. Pág. 3 Ensamblaje del ventilador.
Page 13
SUGERENCIAS DE SEGURIDAD. ADVERTENCIA: Para evitar la posibilidad de una descarga eléctrica, desconectar la corriente en la caja de fusibles principal o el interruptor protector antes de iniciar la instalación del ventilador o antes de repararlo o instalar accesorios. LEER TODAS LAS INSTRUCCIONES E INFORMACIÓN DE SEGURIDAD CUIDADOSAMENTE ANTES DE INSTALAR SU VENTILADOR Y GUARDAR ESTAS INSTRUCCIONES.
Page 14
1. Desempaquetado del ventilador. Abrir el empaque cuidadosamente. Sacar los artículos del embalaje. Sacar el motor y ponerlo en una alfombra o en el embalaje para evitar rayar el acabado. Guardar la caja de cartón o el empaquetamiento original en caso de que tenga que mandar el ventilador para alguna reparación.
Page 15
borde 3. Preparación para la instalación. del aspa 76cm Para prevenir daño corporal y otros daños, estar seguro de que el lugar en donde va a colgar el ventilador le 2,13m pulg.) permite un espacio libre de 2,13 m (7 pies) entre las (7 pies) puntas de las aspas y el piso y 76 cm (30 pulg.) entre las aspas y cualquier pared u otra obstrucción.
Page 16
5. Ensamblaje del ventilador. agujero para Si usted desea extender la longitud colgante del el tornillo ventilador, usted tendrá que quitar la bola que sirve tornillo de fijación para colgar del tubo provisto para usarla con un tubo de fijación más largo (a la venta por separado).
Page 17
viga de madera bucle del cable 5. Ensamblaje del ventilador. (cont.) de seguridad Ya que esté sujetado el soporte de montaje a la caja de salida y capaz de apoyar el ventilador, usted está listo para colgar el ventilador. Agarrar el ventilador firmemente con las dos manos. tornillo para Deslizar el tubo por la abertura del soporte de montaje y dejar que madera...
Page 18
7. Colocación de la cubierta decorativa. antena Localizar los 2 tornillos en la parte inferior del soporte de montaje y quitar el tornillo que está localizado más cerca del extremo abierto del soporte de montaje. Aflojar parcialmente soporte de el otro tornillo. Subir la cubierta decorativa hasta el soporte de montaje montaje.
Page 19
9. Instalación del juego de luz (opcional). (cont.) Colocar los agujeros con ranura grande en la placa bastidor del juego de luz sobre los tornillos en la placa de del motor conexión, dejando que las conexiones tipo “molex” del bastidor del motor pasen por el agujero de en medio de la placa del juego de luz.
Page 20
10. Proceso de aprendizaje automático./El activar el código. PRECAUCIÓN: Se puede programar el transmisor del control remoto para usar con varios receptores o ventiladores. Si no desea hacer esto, apagar el interruptor de cualquier otro receptor o ventilador transmisor del control remoto programable.
Page 21
11. Funcionamiento del control remoto. para controlar la velocidad del ventilador botón - pone el ventilador en velocidad ALTA botón - pone el ventilador en velocidad MEDIA botón - pone el ventilador en velocidad BAJA botón - APAGA el ventilador para controlar el brillo de la luz - ENCIENDE/APAGA el juego de luz cuando se oprime el botón una vez;...
Page 22
Localización de fallas. Garantía. ADVERTENCIA: El no desconectar el suministro de GARANTIA LIMITADA DE POR VIDA DE STORIMODERN: fuerza eléctrica antes de hacer localización de fallas STORIMODERN garantiza este ventilador al comprador original de grupo familiar para uso interior/al aire libre con para cualquier problema de instalación eléctrica puede las siguientes condiciones: causar lesiones graves.
