- Page 1 iRenew Plus Pain Relief & Recovery ™ TENS + EMS System Model # ET-8080 Instruction Manual Instruction Manual...
-
Page 2: Table Of Contents Indications
For symptomatic relief and management of chronic, intractable pain and relief of pain associated with arthritis. (Choose TENS Mode P8) • For use by healthy adults for the stimulation of healthy muscles in order to improve or facilitate performance. (Choose EMS Modes P1 through P6) www.iReliev.com... -
Page 3: Table Of Contents
• Adjust Intensity..….…………………......…………………......................14 SPECIAL FEATURES………………………………………………….......................... 15 PAD PLACEMENTS....................................16-17 TENS PROGRAMS…………………………………………………..........................18 EMS PROGRAMS…………………………………………………..........................19 CARE AND MAINTENANCE…………………............................. 20 TROUBLESHOOTING.………..………………………............................21 TECHNICAL SPECIFICATIONS……………………………………………………..................... 22-24 INFORMATION ABOUT ELECTROMAGNETIC COMPATIBILITY………..................25-28 FCC INFORMATION………………………………………………………………......................29 WARRANTY………………………………................................30 REGISTER YOUR DEVICE…………………..............................32 www.iReliev.com... -
Page 4: Contraindications, Warnings, And Precautions
The irritation can usually be reduced by using an alternate conductive medium, or alternate pad placement. • Electrode placement and stimulation settings should be based on the guidance of the prescribing practitioner. • Powered muscle stimulators should be kept out of the reach of children. www.iReliev.com... - Page 5 Do not apply stimulation in the presence of electronic monitoring equipment (e.g., cardiac monitors, ECG alarms), which may not operate properly when the electrical stimulation device is in use. • Do not apply stimulation when in the bath or shower. www.iReliev.com...
- Page 6 You may experience skin irritation or hypersensitivity due to the electrical stimulation or electrical conductive medium (gel). • If you have suspected or diagnosed heart disease, you should follow precautions recommended by your physician. • If you have suspected or diagnosed epilepsy, you should follow precautions recommended by your physician. www.iReliev.com...
- Page 7 You may experience headaches and other painful sensations during or following the application of electric stimulation near your eyes and to your head and face. • You should stop using the device and should consult with your physician if you experience adverse reactions from the device. www.iReliev.com...
-
Page 8: What's Included
1. iRenew™ Plus TENS + EMS Device (1) 2. Belt Clip & Holster (1) 3. 3.5” x 5” XL Electrode Pads (2) 4. 2” x 2” Electrode Pads (4) 5. AC Adapter and USB Charging Wire (23.5”) 6. Lead Wires (2) 7. Tote Bag (1) www.iReliev.com... -

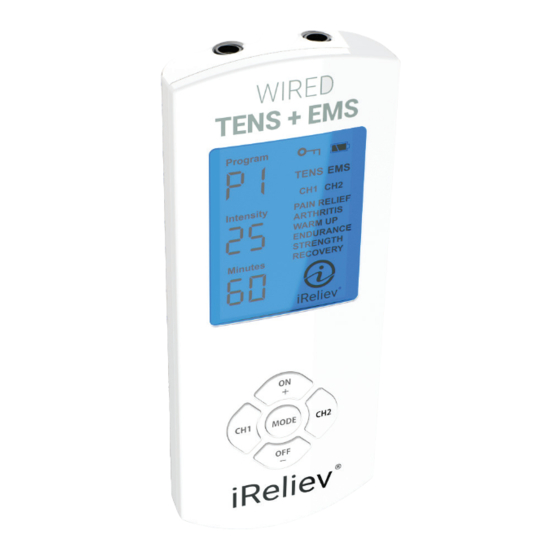

Page 9: Device Features
1. LED backlight will display for 10 seconds upon turning on. 2. When charging, the device will shut off automatically. 2. When charging, the device will shut off automatically. 3. If 3. If symbol is displayed, battery power is low. symbol is displayed, battery power is low. www.iReliev.com... -
Page 10: About Rechargeable Battery
fl ash until fully charged; When fully charged, the battery symbol will be displayed and will not be fl ashing. Note: You may not use the device while it’s charging. When charging, the device will turn off automatically. www.iReliev.com... -
Page 11: Charging The Battery
Level, and use of single or dual channels while receiving treatment. Note: When voltage is lower or equal to 3.3v the When voltage is lower or equal to 3.3v the symbol will show on the LCD screen. symbol will show on the LCD screen. www.iReliev.com... -
Page 12: Step By Step Operation Guide For Treatment
When removing electrode pads, always remove by pulling in the direction of hair growth. It may be helpful to apply iReliev® Conductive Gel or lotion on electrode pad placement area when system is not in use to help increase moisture of skin. -
Page 13: Place Electrode Pads On Skin
Press the “MODE” button (center button) and the Therapy Mode in the upper right corner of LCD screen will begin fl ashing. To select TENS or EMS, press the “ON/+” button for TENS or the “OFF/-” button for EMS, then press “MODE”. www.iReliev.com... -
Page 14: Select Therapy Program
Note: Always start with the lowest intensity gradually increasing until you feel a “tingling” sensation. Never increase the intensity to a level that causes additional pain. Stay under the point of discomfort. Start with short sessions of 5-10 minutes until you are comfortable with the stimulation. www.iReliev.com... -
Page 15: Special Features
Treatment Minutes won’t restart, unless you reset it. The last therapy program you used will appear on the display, when you turn on the device. Press mode to save your selection. The program selected will appear on the display the next time you turn on the device. www.iReliev.com... -
Page 16: Pad Placements
Small Pad Placement Suggestions Calves Elbow Feet Ankle Knees Lower Back Quads Shoulder Upper Arm Wrist Upper Back www.iReliev.com... -
Page 17: Pad Placements
Large Pad Placement Suggestions Calves Knees Lower Back Shoulder Upper Arm Upper Back www.iReliev.com... -
Page 18: Tens Programs
For symptomatic relief and man- Variable comfortable tingling and pulsing sensation (sensation should agement of chronic, intractable appear to come in waves). Pain should ease and there should be relief after pain and relief of pain associated treatment. with arthritis. www.iReliev.com... -
Page 19: Ems Programs
fi bers. It may help improve anaerobic capacity and separated by longer relaxation phases. Increase the Strengthening may help improve muscle strength. stimulation intensity until you get a strong and deep contraction. Do not exceed your comfort level; 20 min/duration. www.iReliev.com... -
Page 20: Care And Maintenance
Note: Electrode pads are for single person use only. If you have questions about the integrity of the electrode pads or if you want to order new electrode pads, please order online at www.iReliev.com or call us at 855-723-2582. How to Store Your System •... -
Page 21: Troubleshooting
Replace/reconnect lead wires. does not generate electric pads are broken or • Ensure lead wires are properly seated in CH1/CH2. pulses. disconnected. • Switch the device to the OFF position and then power ON. Increase treatment time. Treatment time expired. www.iReliev.com... -
Page 22: Technical Specifications
Essential Performance: The stimulation output as defi ned in the following specifi cation table for TENS & EMS. TENS Programs : Program Pulse width(uS) Frequency(Hz) Function Mode Constant Burst Constant 260~156 2~60 Modulation 260~156 Modulation 7~60 Modulation 260~156 Modulation 2.45~245 Cycle www.iReliev.com... - Page 23 Operating Conditions: +50°F (10°C) to +104°F (40°C), 40-90% max. Relative humidity Transport and Storage Conditions: +14°F (-10°C) to +140° (60°C), 30-95% max. Relative humidity Operation Altitude: 3000m. Operating Atmospheric Pressure Range: 700~1013 hPa Transport and Storage Atmospheric Pressure Range: 500~1060 hPa www.iReliev.com...
- Page 24 There are a number of technical symbols on your iReliev® device explained as follows: Remote Label This symbol means “Serial number" on the back of the device. This symbols means “Attention, consult the accompanying documents.” This symbol means "Manufacturer." This symbol means “Type BF equipment”; this device offers protection against electrical shock by standard This symbol means “...
-
Page 25: Information About Electromagnetic Compatibility
The customer or the user of the system can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the iRenew™ Plus Pain Relief & Recovery System as recommended below, according to the maximum output power of the communications equipment. www.iReliev.com... - Page 26 Radiated RF IEC 3 V/m 3 V/m aration distance calculated from the equation applicable to 61000-4-3 80 MHz to 2.5 GHz the frequency of the transmitter. Interference may occur in the vicinity of equipment marked with the following symbol: www.iReliev.com...
- Page 27 ) for 25 operation during power mains interruptions, it is on power supply input lines cycles <5 % U cycles <5 % U recommended that the EQUIPMENT or SYSTEM be IEC 61000-4-11 powered from an uninterruptible power supply or a battery. www.iReliev.com...
- Page 28 Harmonic emissions and those directly connected to the public low-voltage pow- IEC 61000-3-2 Class C er supply network that supplies buildings used for domestic purposes. Voltage fl uctuations/Flicker Complies emissions IEC 61000-3-3 www.iReliev.com...
-
Page 29: Fcc Information
To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. www.iReliev.com... -
Page 30: Warranty
WARRANTY This iRenew™ Plus Pain Relief & Recovery System carries a one-year warranty from the date of purchase. Extended warranties are provided with device registration at iReliev.com/registration. The warranty applies to the main device and necessary parts and labor. Consumable items like lead wires, electrode pads, and other accessories are guaranteed to be free from defects in workmanship and materials at the time of delivery. - Page 31 THANK YOU FOR PURCHASING Your new iReliev ® product is one of the best in the industry, and in many ways, leads the industry, particularly in the warranty coverage and customer satisfaction. Customer satisfaction is a key factor in every iReliev ® transaction.
-
Page 32: Register Your Device
When registering your device, fl ip device to the back to reveal serial number. Enter serial number on the warranty registration form or complete warranty on page 33. Please send registration card within 14 days of purchase in a stamped envelope. All iReliev ® devices have separate serial numbers. www.iReliev.com... - Page 33 www.iReliev.com...
- Page 34 www.iReliev.com...
- Page 35 www.iReliev.com...
- Page 36 ExcelHealth Inc. www.iReliev.com 1603 Hart Street Southlake, TX 76092 If you have any questions whatsoever regarding your iRenew™ Plus Pain Relief & Recovery System Model # ET-8080, contact your reseller or ExcelHealth Inc. at: 855-723-2582 or visit www.iReliev.com...
