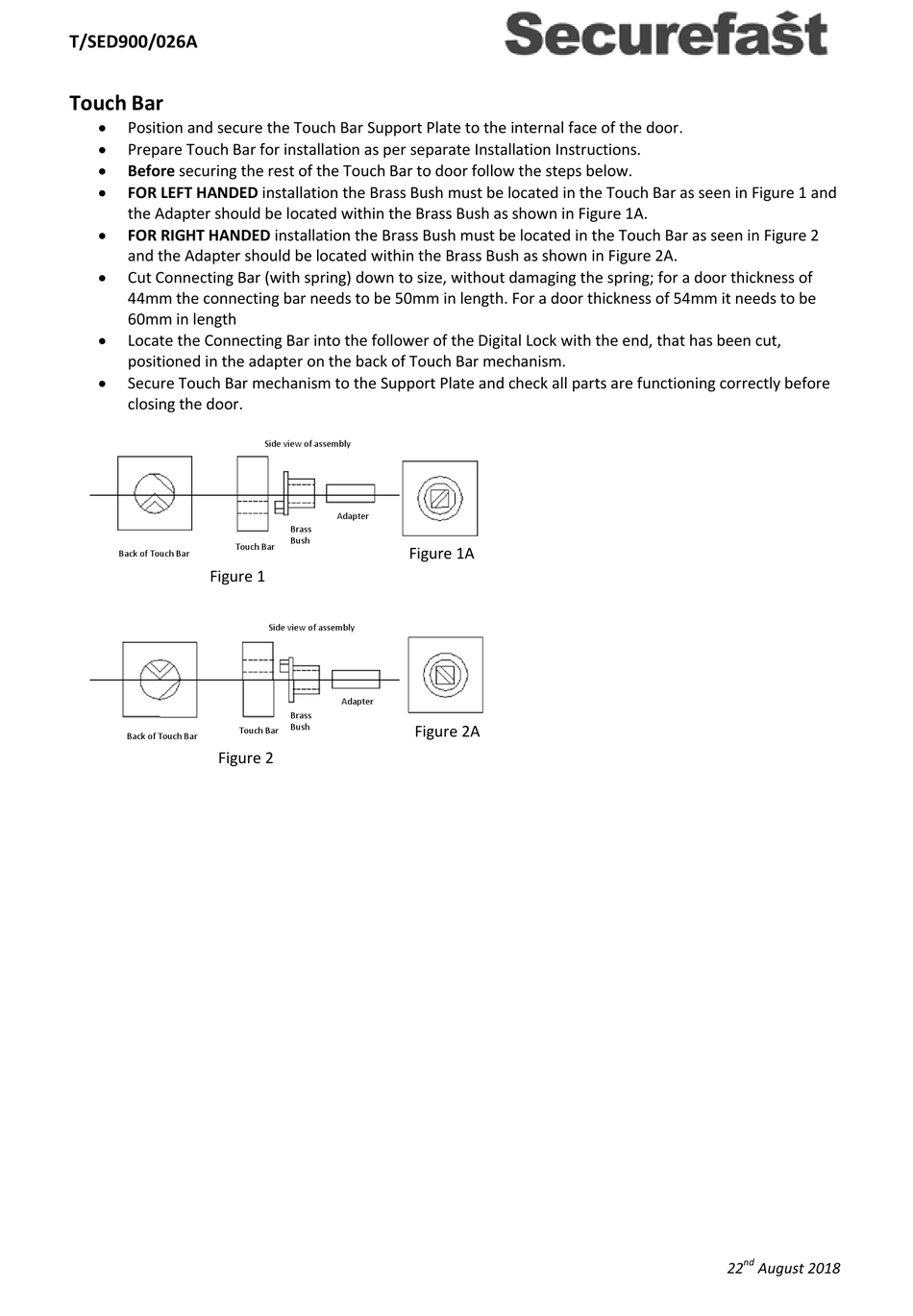

Securefast SBL639/SP Installation Instructions page 2

T/SED900/026A
Touch Bar

Position and secure the Touch Bar Support Plate to the internal face of the door.

Prepare Touch Bar for installation as per separate Installation Instructions.

Before securing the rest of the Touch Bar to door follow the steps below.

FOR LEFT HANDED installation the Brass Bush must be located in the Touch Bar as seen in Figure 1 and
the Adapter should be located within the Brass Bush as shown in Figure 1A.

FOR RIGHT HANDED installation the Brass Bush must be located in the Touch Bar as seen in Figure 2
and the Adapter should be located within the Brass Bush as shown in Figure 2A.

Cut Connecting Bar (with spring) down to size, without damaging the spring; for a door thickness of
44mm the connecting bar needs to be 50mm in length. For a door thickness of 54mm it needs to be
60mm in length

Locate the Connecting Bar into the follower of the Digital Lock with the end, that has been cut,
positioned in the adapter on the back of Touch Bar mechanism.

Secure Touch Bar mechanism to the Support Plate and check all parts are functioning correctly before
closing the door.
Touch Bar
Back of Touch Bar
Figure 1
Touch Bar
Back of Touch Bar
Figure 2
Side view of assembly
Adapter
Brass
Bush
Figure 1A
Side view of assembly
Adapter
Brass
Bush
Figure 2A
nd
22 August 2018
