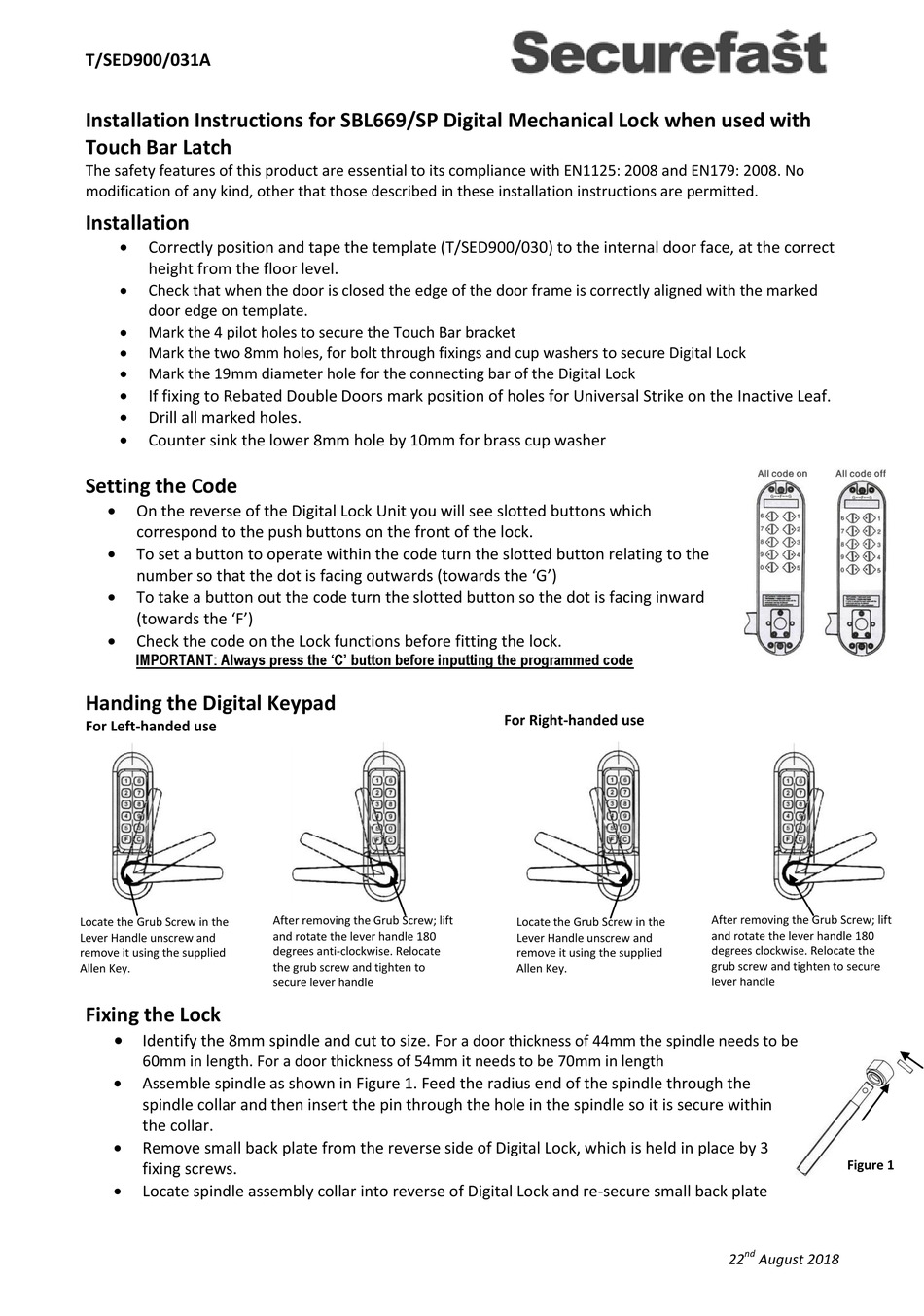

Securefast SBL669/SP Installation Instructions

T/SED900/031A
Installation Instructions for SBL669/SP Digital Mechanical Lock when used with
Touch Bar Latch
The safety features of this product are essential to its compliance with EN1125: 2008 and EN179: 2008. No
modification of any kind, other that those described in these installation instructions are permitted.

Installation


Correctly position and tape the template (T/SED900/030) to the internal door face, at the correct
height from the floor level.

Check that when the door is closed the edge of the door frame is correctly aligned with the marked
door edge on template.

Mark the 4 pilot holes to secure the Touch Bar bracket

Mark the two 8mm holes, for bolt through fixings and cup washers to secure Digital Lock

Mark the 19mm diameter hole for the connecting bar of the Digital Lock

If fixing to Rebated Double Doors mark position of holes for Universal Strike on the Inactive Leaf.

Drill all marked holes.

Counter sink the lower 8mm hole by 10mm for brass cup washer

Setting the Code


On the reverse of the Digital Lock Unit you will see slotted buttons which
correspond to the push buttons on the front of the lock.

To set a button to operate within the code turn the slotted button relating to the
number so that the dot is facing outwards (towards the 'G')

To take a button out the code turn the slotted button so the dot is facing inward
(towards the 'F')

Check the code on the Lock functions before fitting the lock.
IMPORTANT: Always press the 'C' button before inputting the programmed code

Handing the Digital Keypad

For Left-handed use
Locate the Grub Screw in the 
Lever Handle unscrew and

remove it using the supplied

Allen Key.

Fixing the Lock


Identify the 8mm spindle and cut to size. F or a door thickness of 44mm the spindle needs to be
60mm in length. For a door thickness of 54mm it needs to be 70mm in length

Assemble spindle as shown in Figure 1. Feed the radius end of the spindle through the
spindle collar and then insert the pin through the hole in the spindle so it is secure within
the collar.

Remove small back plate from the reverse side of Digital Lock, which is held in place by 3
fixing screws.

Locate spindle assembly collar into reverse of Digital Lock and re-secure small back plate

After removing the Grub Screw; lift
and rotate the lever handle 180
degrees anti-clockwise. Relocate
the grub screw and tighten to
secure lever handle
For Right-handed use
Locate the Grub Screw in the
Lever Handle unscrew and
remove it using the supplied
Allen Key.
After removing the Grub Screw; lift
and rotate the lever handle 180
degrees clockwise. Relocate the
grub screw and tighten to secure
lever handle
Figure 1
nd
22 August 2018
