Securefast SBL365.SL.94 Installation Instructions

T/040/SBL365.94
Installation Instructions for SBL365.SL.94/94R Digital Mechanical Lock
with Mortice Night Latch
This lock has been Fire Tested in accordance with BS EN1634-1 with the use of Intumescent Seals.
IMPORTANT: This lock must only be used with a Securefast approved lock or latch. Any lock or latch used in
conjunction with this unit that has not been tested and approved by Securefast PLC will void any guarantee.
Setting the Code

On the reverse of the Digital Lock Unit you will see slotted buttons which
correspond to the push buttons on the front of the lock.

To set a button to operate within the code turn the slotted button relating to
the number so that the dot is facing outwards (towards the 'G')

To take a button out the code turn the slotted button so the dot is facing
inward (towards the 'F')

Check the code on the Lock functions before fitting the lock.
Installation
Applying the Intumescent Seals
IMPORTANT: In order for this unit to maintain its fire rating status and be suitable to be installed on a
fire rated door Intumescent Seals must be used. A 2mm self-adhesive mono-ammonium phosphate
(Interdens) intumescent seal is recommended.

Cover the edges and faces of the mortice lock case in one uniform layer using the self-adhesive
intumescent seal

Affix one 2mm intumescent layer behind forend of lock and behind the rear of the striker prior to
installation.

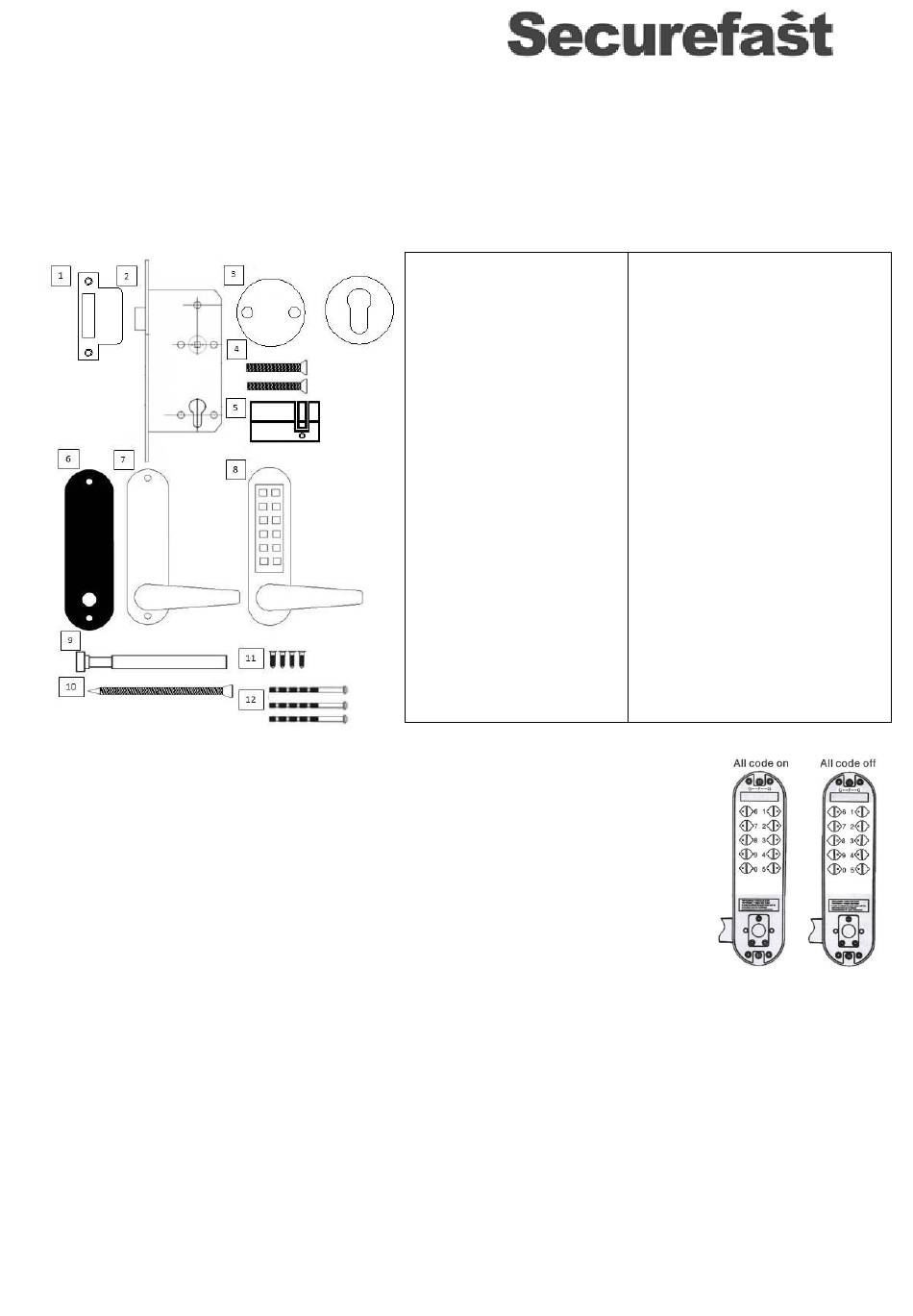

SBL365.SL.94/94R
LIST OF PARTS
1) Striker
2) Mortice Night Latch
3) Security Escutcheon
4) Bolt through fixings for
Escutcheon (x 2)
5) Single Cylinder
6) Neoprene Seal (x 2)
7) Internal Block
8) Digital Lock with Lever
Handle
9) Spindle (8mm)
10) Cylinder Retaining
Screw
11)Wood screws x 4 (For
securing Lock and Striker
Plate)
12) Fixing Bolts x 3 (1 spare)
BEFORE INSTALLATION
PLEASE:
1) Ensure all parts work properly
2) Choose and set a code
following the "Setting/Changing
the Code" instructions. All or part
of the push-buttons can be
chosen in no particular order.
Codes with 4 digits provide
maximum security
3) Ensure that both lever handles
of the Digital Lock can be moved
freely. Check that the Passage
function can be engaged. Check
the latch of the lock moves freely
by pressing it in and by turning
the follower with the spindle.
Also check the functions of the
Night Latch with the cylinder.
th
17 October 2013
