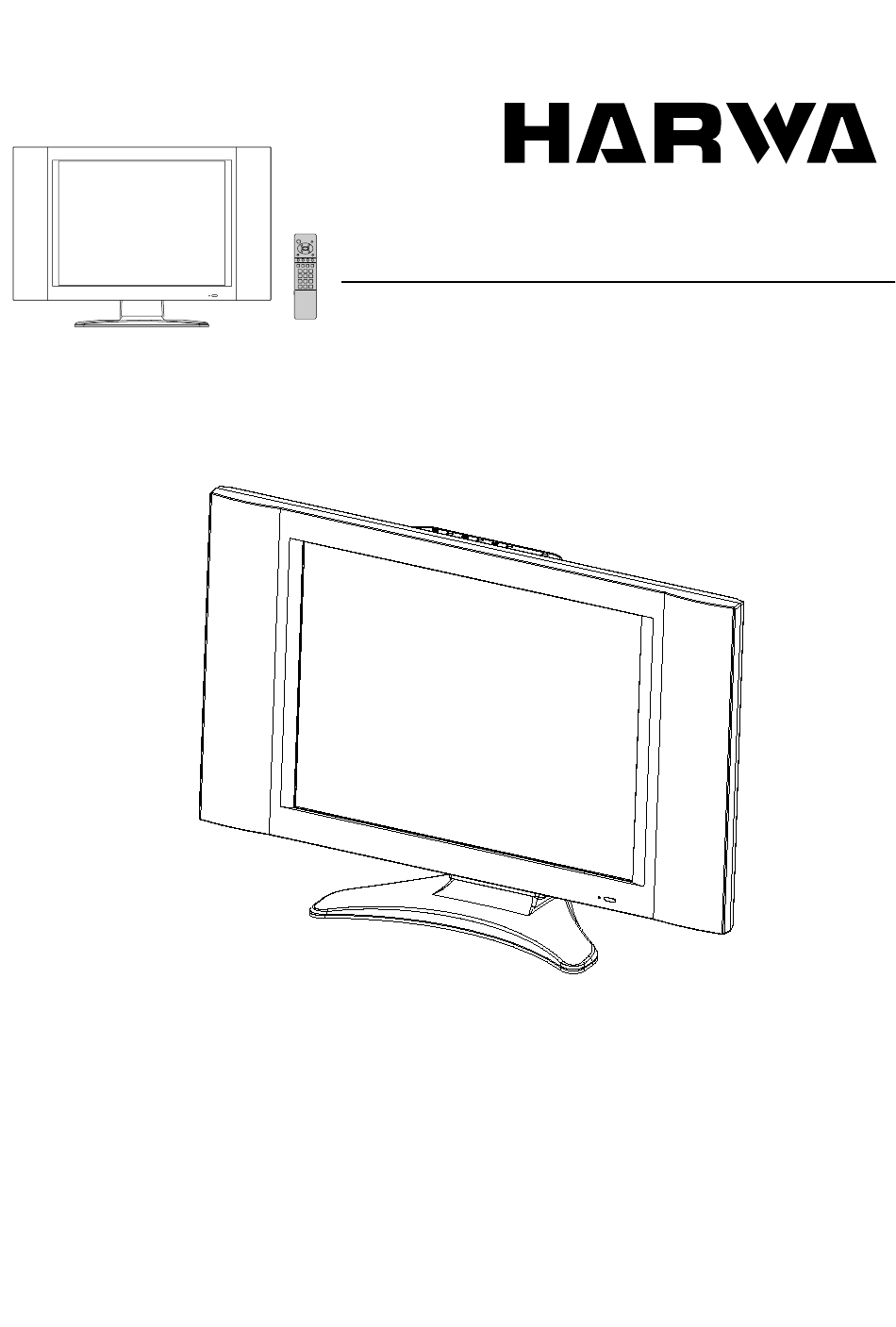

  • Page 1 LCD TV Operating Manual LC-20H3S Before connecting, operating or adjusting this product, please read the manual completely. Please keep this manual for future reference.
  • Page 2: Table Of Contents

    Table of Contents Important Safety Precautions..........................1 Preparations..............................3 Using the Remote Control ........................3 Batteries for the Remote Control ......................3 Power connection ..........................4 Antenna Connection ..........................4 Identification of Controls ..........................5 Main unit (front view)..........................5 Main unit (rear view) ..........................6 Remote Control .............................7 Connections..............................9 Cautions before connecting ........................9 Connect 21-pin EURO-SCART (AV1 IN)....................9...
  • Page 3 Table of Contents (continued) Setting System ..............................19 Setting Blue Screen Background ......................19 Setting Color and Sound System......................19 Setting Scart Output ..........................19 Timer Function.............................20 Setting Sleep Time ..........................20 Setting Current Time ...........................20 Setting On Timer ..........................20 Setting Off Timer ..........................20 OSD Settings ..............................21 Setting OSD Position..........................21 Setting OSD Background ........................21 Setting OSD Timeout ..........................21...
  • Page 4: Important Safety Precautions

    Important Safety Precautions Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD.
  • Page 5 Important Safety Precautions (continued) 15. Stand---Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product.
  • Page 6: Preparations

    Preparations Using the Remote Control Use the remote control by pointing it towards the remote sensor window of the set. Objects between the remote control and sensor window may prevent proper operation. Note: the illustration is for your reference only, the remote sensor may locate differently with different model.
  • Page 7: Power Connection

    Preparations (continued) Power connection Household power outlet Plug into AC outlet. Connect to the DC input socket of the product. Be sure to insert plug into AC cord AC adapter the end fully and confirm it is reliable 1. Connecting the female plug to the AC socket on AC adapter. 2.
  • Page 8: Identification Of Controls

    Identification of Controls Main unit (front view) Control Panel SOURCE MENU POWER Power On/ Menu Channel Down/Up Standby Select Input Signal Volume Down/Up Speaker Speaker Remote Sensor Power Indicator A yellow indicator lights when the power is on and a red indicator lights when in the standby mode.
  • Page 9: Main Unit (Rear View)

    Identification of Controls (continued) Main unit (rear view) - S VIDEO DC 12V PC AUDIO PHONE (SCART) VIDEO VIDEO AUDI O AUDIO AV2 IN AV OUT 1. DC POWER input Connect to the DC output of the Power Adapter. 2. VGA input /Audio in Connect to the VGA/audio output 3.5mm jacks on your PC.
  • Page 10: Remote Control

    Identification of Controls (continued) Remote Control 1. POWER Turn the unit on or standby 2. CH+/-,VOL+/- CH+/- ---Use to switch channels; To display previous/next page (Teletext) VOL+/----Use to adjust volume; In MENU operation, use CH+/- to select item and VOL+/- to adjust selected item 3.
  • Page 11 Identification of Controls (continued) Remote Control 16. SCALER MODE To select screen aspect ratio 17. HEADPHONE To load preset sound settings for headphone 18. REVEAL To display hidden information such as solutions to riddles and puzzles. (Teletext) 19. REAL CLOCK To access real time quickly without entering teletext 20.
  • Page 12: Connections

    Connections Cautions before connecting Carefully check the terminals for position and type before making any connections. The illustration of the external equipment may be different depending on your model. Loose connectors can result in image or color problems. Make sure that all connectors are securely inserted into their terminals.
  • Page 13: Connect Audio/Video Inputs (Av2 In)

    Connections (continued) Connect Audio/Video inputs (AV2 IN) Interface on the rear of the Unit - S VIDEO DC 12V PC AUDIO PHONE (SCART) VIDEO VIDEO AUDI O AUDIO AV2 IN AV OUT Yellow (VIDEO) S-Video Video Audio White (AUDIO L/MONO) cable cable cable...
  • Page 14: Connect A Pc

    Connections (continued) Connect a PC Interface on the rear of the Unit - S VIDEO DC 12V PC AUDIO PHONE (SCART) VIDEO VIDEO AUDI O AUDIO AV2 IN AV OUT Audio cable cable How to connect: Connect a VGA cable between the VGA jack on the PC and the VGA input jack on the unit. Connect an Audio cable between the AUDIO output on the PC and AUDIO input 3.5mm jack on the unit.
  • Page 15: Connect A Vcr For Recording

    Connections (continued) Connect a VCR for recording Interface on the rear of the Unit - S VIDEO PC AUDIO PHONE (SCART) DC 12V VIDEO VIDEO AUDI O AUDIO AV2 IN AV OUT 21-pin Euro-SCART connector Video Yellow (VIDEO) cable Audio White (AUDIO L/MONO) cable Red (AUDIO R )
  • Page 16: Turning The Unit On And Off

    Turning the Unit On and Off Turning the Unit On and Off Turning On Insert the power cord into the wall outlet. Press the Power button on the remote control. The unit will be turned on and you will be ready to use it's features. Turning Off With the power on, Press the Power button on the remote control to...
  • Page 17: Memorizing The Channels

    Memorizing the Channels Your LCD TV can memorize and store all of the available channels. After the available channels are memorized, use CH+/- to scan through the available channels. Storing Channels in Memory Automatically Press MENU to display the menu main page. Channel Number Add/Erase ERASE...
  • Page 18: Manual Fine Tuning

    Memorizing the Channels (continued) Manual Fine Tuning Press MENU to display the menu main page. Channel Number Add/Erase ERASE Search Control Press VOL+/- repeatedly to display Search menu page. French Other Hand Search Auto Search Press CH+/- repeatedly to select Fine tune item. Fine Tune Edit Channel Name Press VOL+/- to fine tune till the best possible picture and sound are...
  • Page 19: Basic Operations

    Basic Operations Changing Channels Using the Channel Buttons (CH+ or CH- ) Press the CH+ or CH- to change channels. When you press the CH+ or CH-, the unit changes channels in sequence. You will see all the channels that the unit has memorized.
  • Page 20: Select Input Source Signal

    Basic Operations (continued) Select Input Source Signal Using the Source button SOURCE Press the Source button to access SOURCE menu. Press CH+ or CH- to select a desired input signal source. SVIDEO Press VOL+ to confirm or wait for a moment, the unit display signal from the selected input source.
  • Page 21: Setting Picture

    Setting Picture Customizing the Picture Press MENU to display the menu main page. brightness If the Picture menu does not display, press VOL+/- repeatedly contrast to display Picture menu page. color sharpness Press CH+/- to select the item you wish to change. tint Press VOL+/- to adjust the value of the item.
  • Page 22: Setting System

    Setting System Setting Blue Screen Background Press MENU to display the menu main page. Blue Screen Scaler Mode Fill All Press VOL+/- to display System menu page. Video Standard Auto Audio Standard Press CH+/- repeatedly to select Blue Screen item. Sleep Time 0 minutes Scart Ouput...
  • Page 23: Timer Function

    Timer Function Setting Sleep Time Using the Menu Press MENU to display the menu main page. Blue Screen Fill All Scaler Mode Press VOL+/- to display System menu page. Auto Video Standard Audio Standard Sleep Time 30 minutes Press CH+/- repeatedly to select Sleep Time item. Scart Output Monitor Press VOL+/- to set a proper sleep time.
  • Page 24: Osd Settings

    OSD Settings Setting OSD Position Press MENU to display the menu main page. Language OSD Position Press VOL+/- repeatedly to display OSD Settings menu page. OSD Background opaque translucent 10 seconds OSD Timeout Press CH+/- repeatedly to select OSD Position item. Press VOL+/- to select a proper OSD position.
  • Page 25: Setting Sound

    Setting Sound Adjusting Sound Settings Press MENU to display the menu main page. Bass Treble Press VOL+/- repeatedly to display Audio menu page. Balance Stereo Mono Press CH+/- to select item you are going to change. Spatial Press VOL+/- to adjust the value of the item. Adjustment item Choice/Value range Description...
  • Page 26: Nicam Broadcast Selection

    Setting Sound (continued) NICAM Broadcast Selection This enables the selection of the reception mode when receiving a NICAM signal. To let you enjoy NICAM broadcasting, this LCD TV set receives NICAM system stereo, bilingual, and monaural broadcasts. Stereo NICAM Stereo When the LCD TV set is receiving a stereo broadcast.
  • Page 27: Igr (German Stereo System) Broadcasts

    Setting Sound (continued) IGR (German stereo system) Broadcasts This enables the selection of the reception mode when receiving an IGR signal. To let you enjoy IGR broadcasting, this LCD TV set receives IGR system stereo and bilingual broadcasts. Stereo FM Stereo When the LCD TV set is receiving a stereo broadcast.
  • Page 28: Adjustment In Vga Mode

    Adjustment in VGA Mode With working in VGA mode, this unit allows you to perform several adjustments. Customizing the Picture Press MENU to display the Picture menu main page. brightness If the Picture menu does not display, press VOL+/- repeatedly to contrast 5000K 7300K 9300K display Picture menu page.
  • Page 29: Changing The Position Of Image

    Adjustment in PC (VGA) Mode (continued) Changing the Position of Image After connecting the unit to your PC, adjust the position of the screen if it is not well-aligned. Press MENU to display the menu main page. h position v position phase Press VOL+/- repeatedly to display Screen menu page.
  • Page 30: Teletext

    Teletext What is Teletext? Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your System receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available.
  • Page 31: Troubleshooting

    Troubleshooting Before calling for repair service, check the following items for possible remedies to an encountered symptom. Symptoms Check item “Ghost” or double images This may be caused by obstruction to the antenna due to high rise buildings or hills. Using a highly directional antenna may improve the picture. No power Check that the AC power cord is plugged into the mains socket.
  • Page 32: Specifications

    Specifications Type LCD TV Display Size diagonal 20 ” Display Feature LCD panel TFT-LCD Resolution 800 x600 Pixel Pitch 0.51mm x 0.51mm Maximum Colors 16,700,000 Brightness 500 nit Contrast 500:1 Viewing Angle 120 /160 Response Time <16 ms TV System PAL/SECAM BG, DK, PAL-I, SECAM-L, SECAM-L’, Channel Coverage System...
  • Page 33: Dimensional Drawings

    Dimensional Drawings Design and specifications are subject to change without notice.
  • Page 34 PRINTED IN RECYCLED PAPER 604-L20H3S9-00...
