Bend-Tech Dragon Connection Manual

Hide thumbs Also See for Dragon:

Electronic Connections

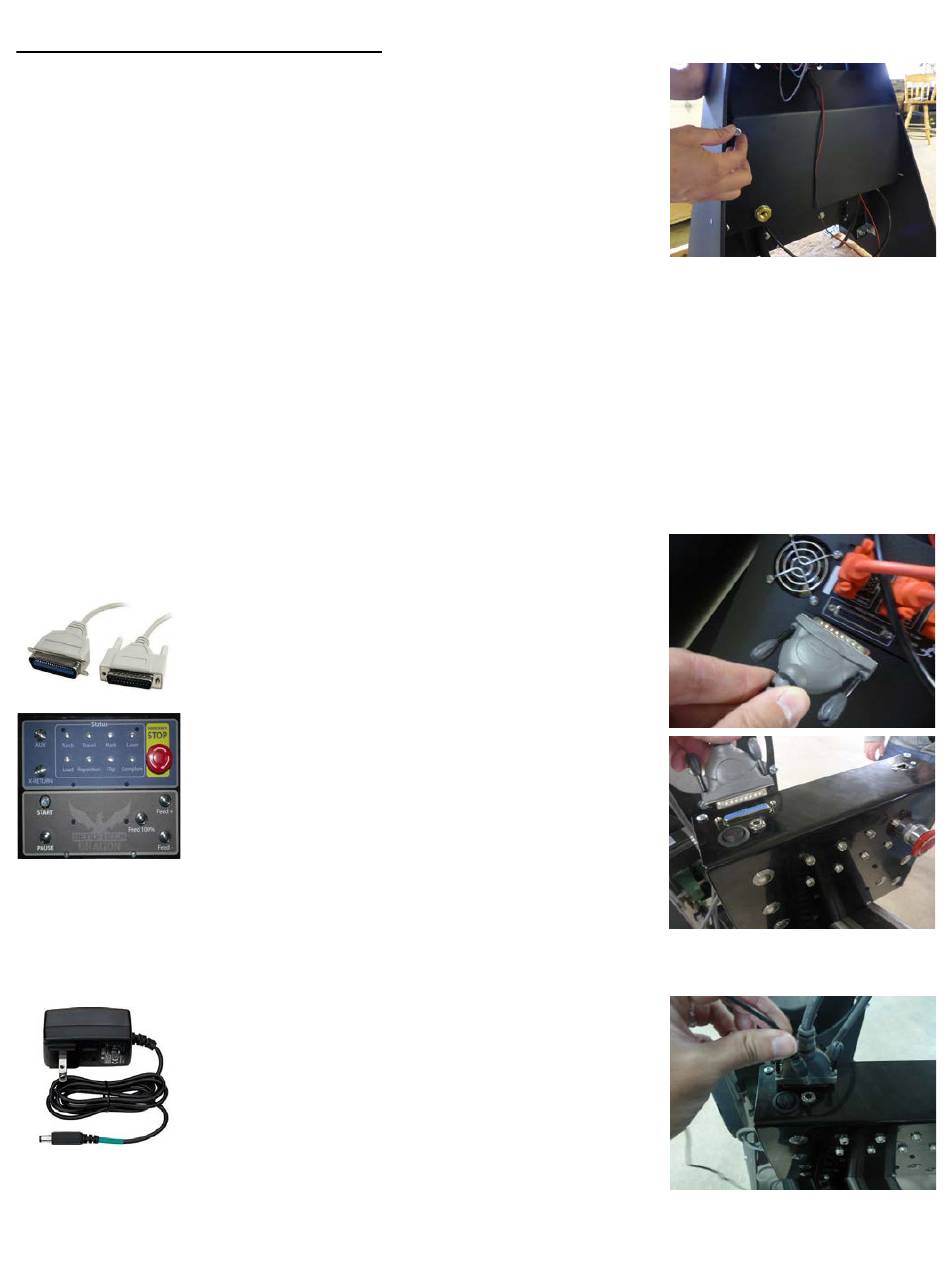

Step 1: Use your fingers to remove the

3/8 inch nuts securing the bottom

electronics guard plate underneath the

back side of the gate. Remove the guard

plate itself to reveal the electronics core.

Note: If you are using 230v instead of the standard

115v, you will have to change the voltage settings.

Please see the Voltage Settings page at the end of this

manual for further details on how to change this.

Step 2: Connect the parallel

cord to both the back of the

machine's electrical core and the

operator panel box. Make sure

to secure them both by

tightening the set screws on

each end of the cord.

Step 3: Connect the 5v power

source to the back of the

operator panel box and

connect the other side to a wall

outlet.
